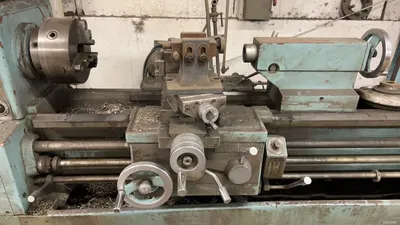

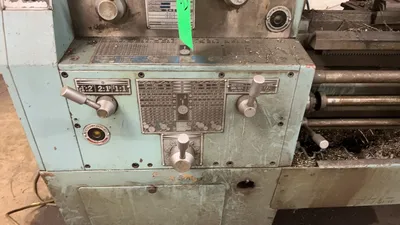

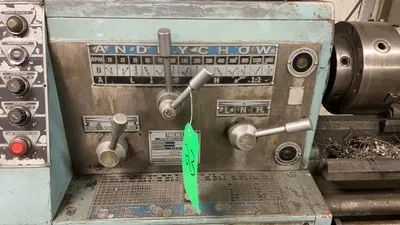

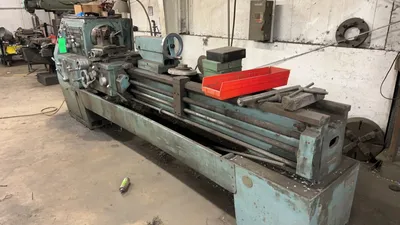

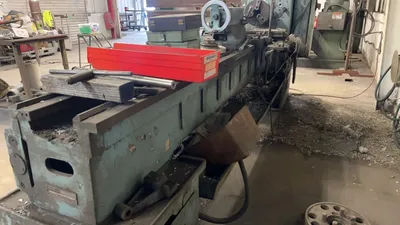

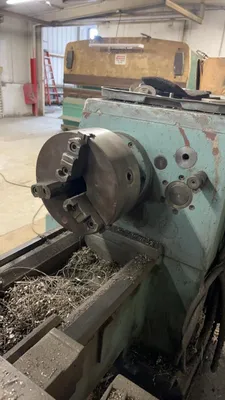

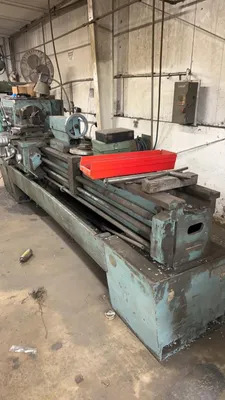

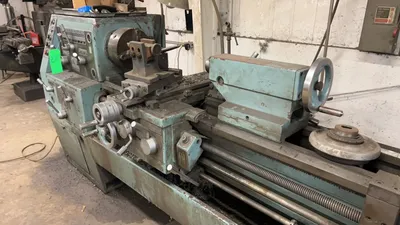

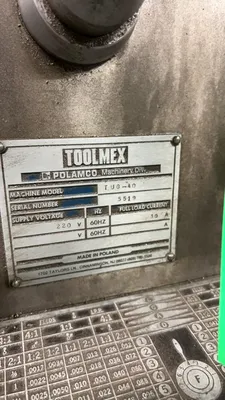

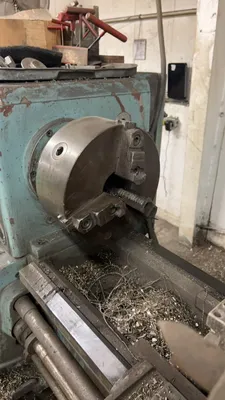

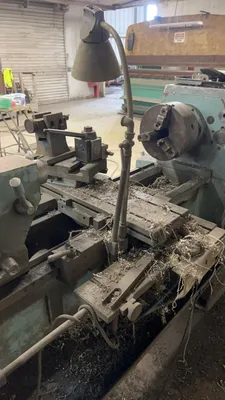

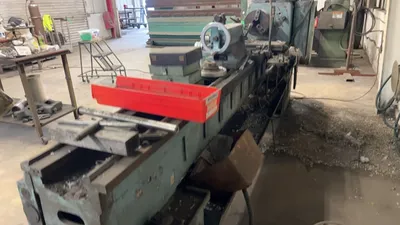

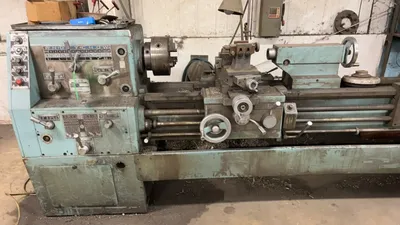

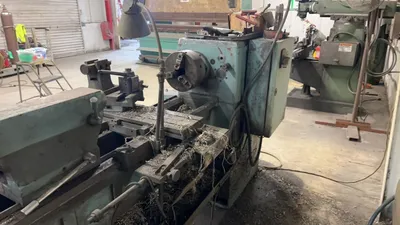

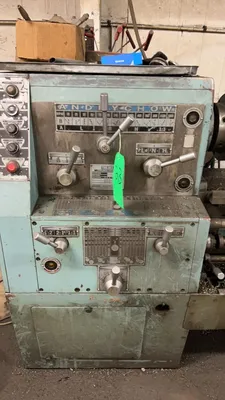

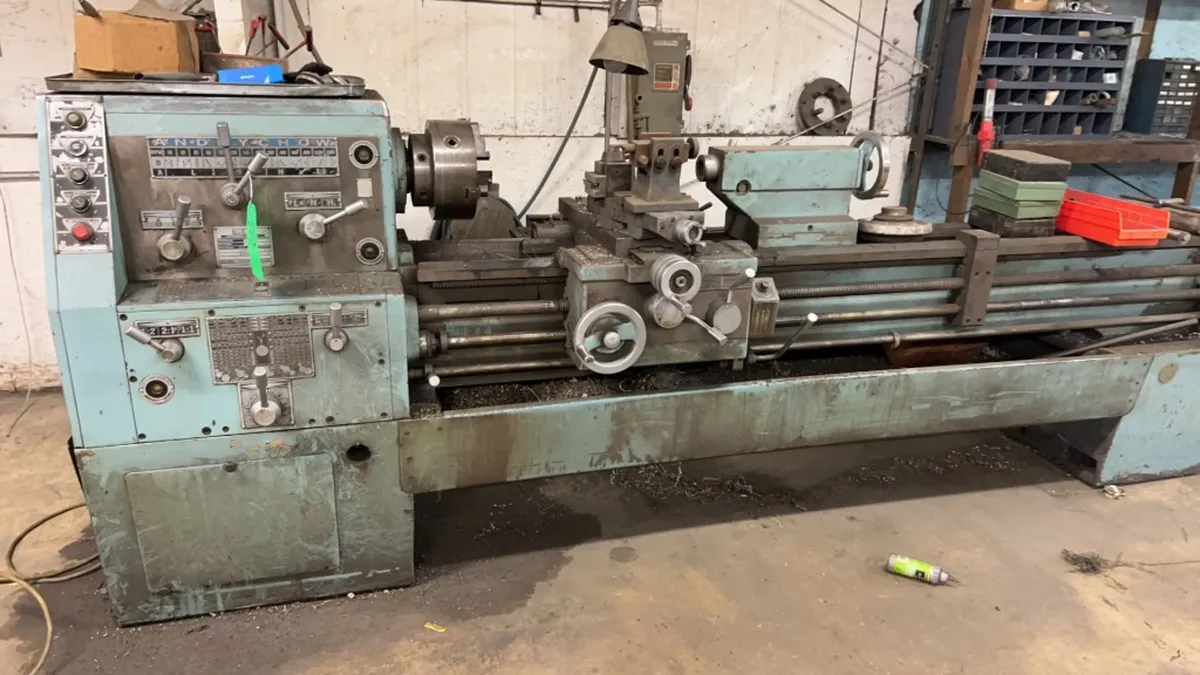

17/25" x 80" TOOLMEX/POLAMCO "TUG-40" GEARED-HEAD GAP-TYPE ENGINE LATHE w/TAPER ATTACHMENT - INCH/METRIC THREADING - CHUCK

Hole Thru Spindle 2.06"

Swing Over Bed Ways, Rated 17"

Swing Over Bed Ways, Actual 17.75"

Swing thru Gap 25.75"

Swing Over Carriage 10"

Distance Between Centers 80"

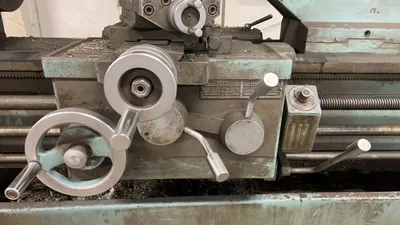

Carriage Cross Slide Travel 10.5"

Carriage Top Slide Travel 5"

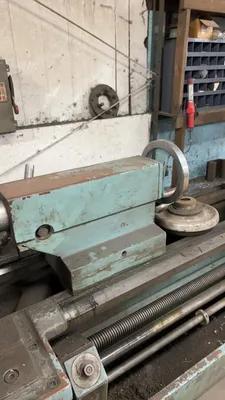

Tailstock, Quill Diameter 3"

Tailstock, Quill Travel 7"

Tailstock, Spindle Taper #5 MT

(14) Spindle Speeds, Range 18 to 1600 RPM

(42) Carriage Longitudinal Feeds .0017 to .126 IPR

(42) Cross-Slide Cross Feeds .0008 to .063 IPR

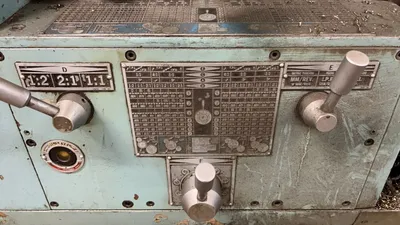

(42) Inch Thread Changes, Range .75 to 56 TPI

(34) Metric Leads, Range .5 to 28 MM

(12) Module Threads, Range .5 to 3.5 M.P.

(21) D.P. Threads 8 to 56 DP

Main Drive Motor, Horsepower 7.5 HP

Overall Dimensions, L x W 144" x 41"

Overall Height 49"

Weight Approximately 6000 LBS

F.O.B. OUR WAREHOUSE
