| Chuck Size | 21" | 533.4 mm |
| Horz/Vert | Horz | Horz |
| Power | 15 hp | 11.2 kW |
| Swing | 26" | 660.4 mm |
| Under Wheel | 8" | 203.2 mm |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 20" | 508 mm |
| Dimensions | 94 x 87 | 94 x 87 |
| Weight | 9000 | 9000 |

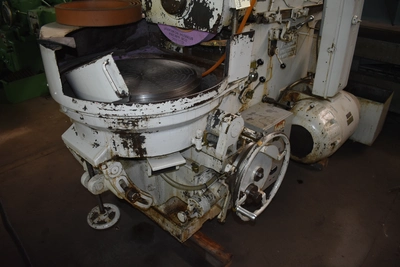

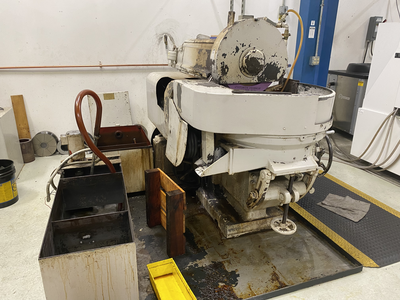

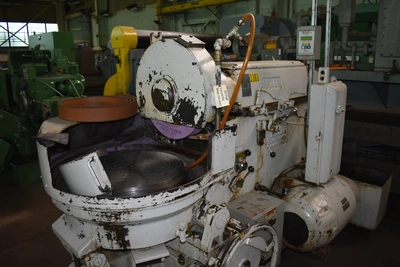

20" ARTER HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 2303, Model B20
EQUIPPED WITH:
Horizontal-Spindle Machine Design

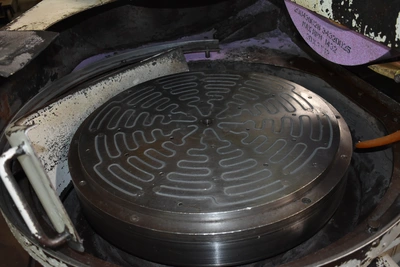

21" Diameter Electro-Magnetic Chuck w/Elmatco
Electro-Magnetic Neutrol II Magnetic Chuck Controls (Updated)
Hydraulic Table Rotation (Updated)

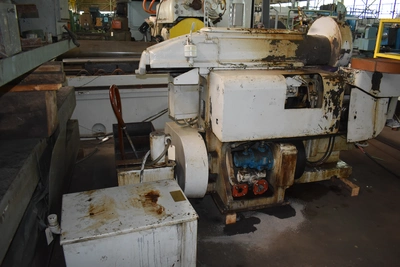

Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:

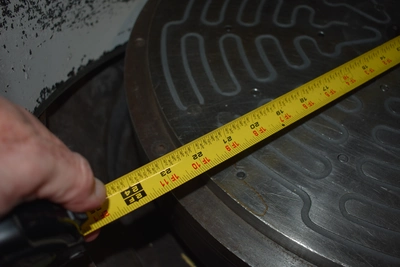

Magnetic Chuck, Diameter 21"
Swing With-in Coolant Guards 26"
Grinding Height Capacity w/Full Wheel 8"
Grinding Wheel Diameter, Standard 20"
Grinding Wheel Width, Standard 2"
Grinding Wheel Hole Diameter 12"
Convex Table Angle Degrees, Maximum 10-DEGREES
Concave Table Angle Degrees, Maximum 10-DEGREES
Chuck Speed, Maximum 120 RPM
Grinding Wheel Speeds, Maximum 950 RPM
Motor, Horsepower/RPM 15 HP
Floor Space Required, W x D 94" x 87"
Weight, Approximately 9000 LBS
F.O.B. OUR WAREHOUSE
