20 TON HANSFORD "1020" DIE HANDLER & DIE TRYOUT PRESS w/360-DEGEE ROTATION - 44.5" X 24" PLATEN

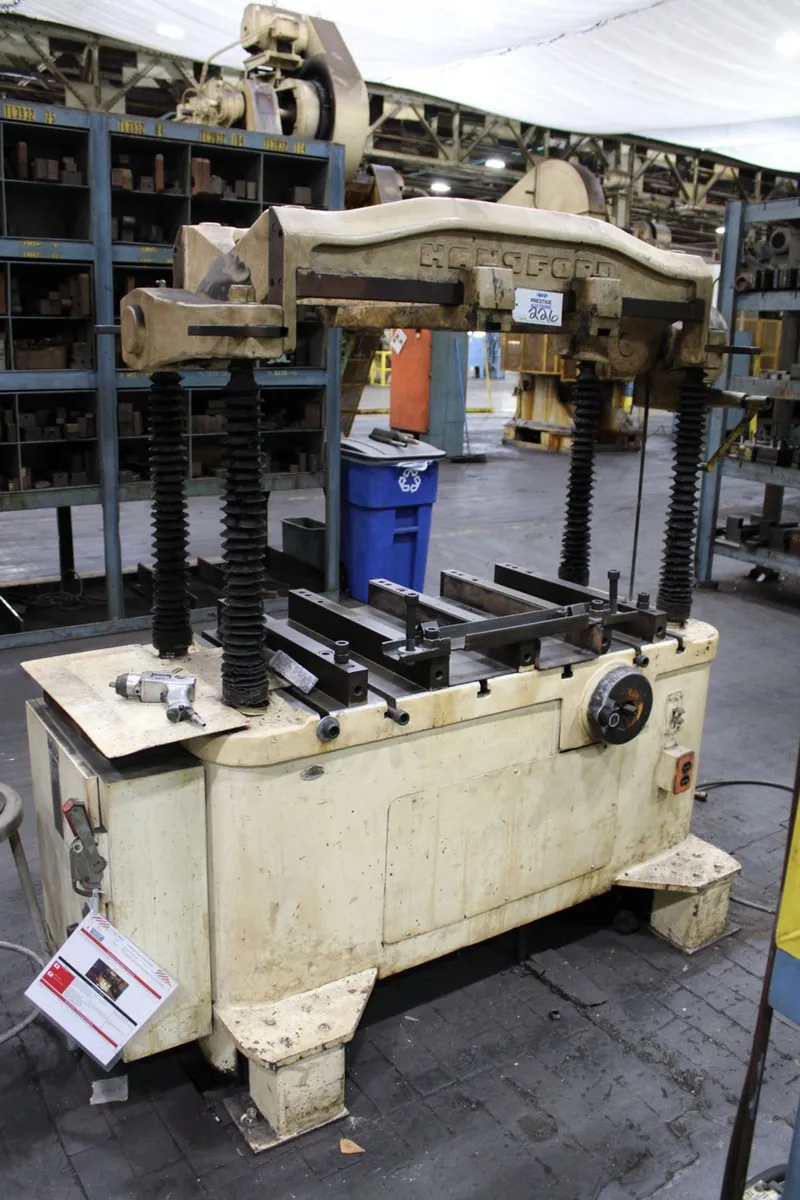

20 TON HANSFORD "1020" DIE TRYOUT DIE HANDLER
Serial No 492, Model 1020

EQUIPPED WITH:
6 T-Slots In Lower Platen
2 Adjustable T-Slots On Upper Platen
360-Degree Rotation Of Top Platen

CATALOG SPECIFICATIONS:
Die Try-Out Force, Maximum 20 TONS
Die Weight Capacity, Maximum 3000 LBS
Lower Platen Area, L x W 44.5" x 24"
Upper Platen Area, L x W 42.75 x 21"
Shut Height, Minimum Distance Between Platens 8"
Open Height, Maximum Distance Between Platens 28"
Vertical Travel Upper Platen 20"
Vertical Travel Speed (Power) 13 IPM
Vertical Movement Hand Crank, Manual Position 48 TURNS/IN
Vertical Movement Hand Crank, Tryout Position 344 TURNS/IN
Rotation Of Top Platen 360-Degrees 48 TURNS
Motor Horsepower 1.5 HP/1750 RPM
Weight Approximately 3350 LBS
F.O.B. OUR WAREHOUSE
