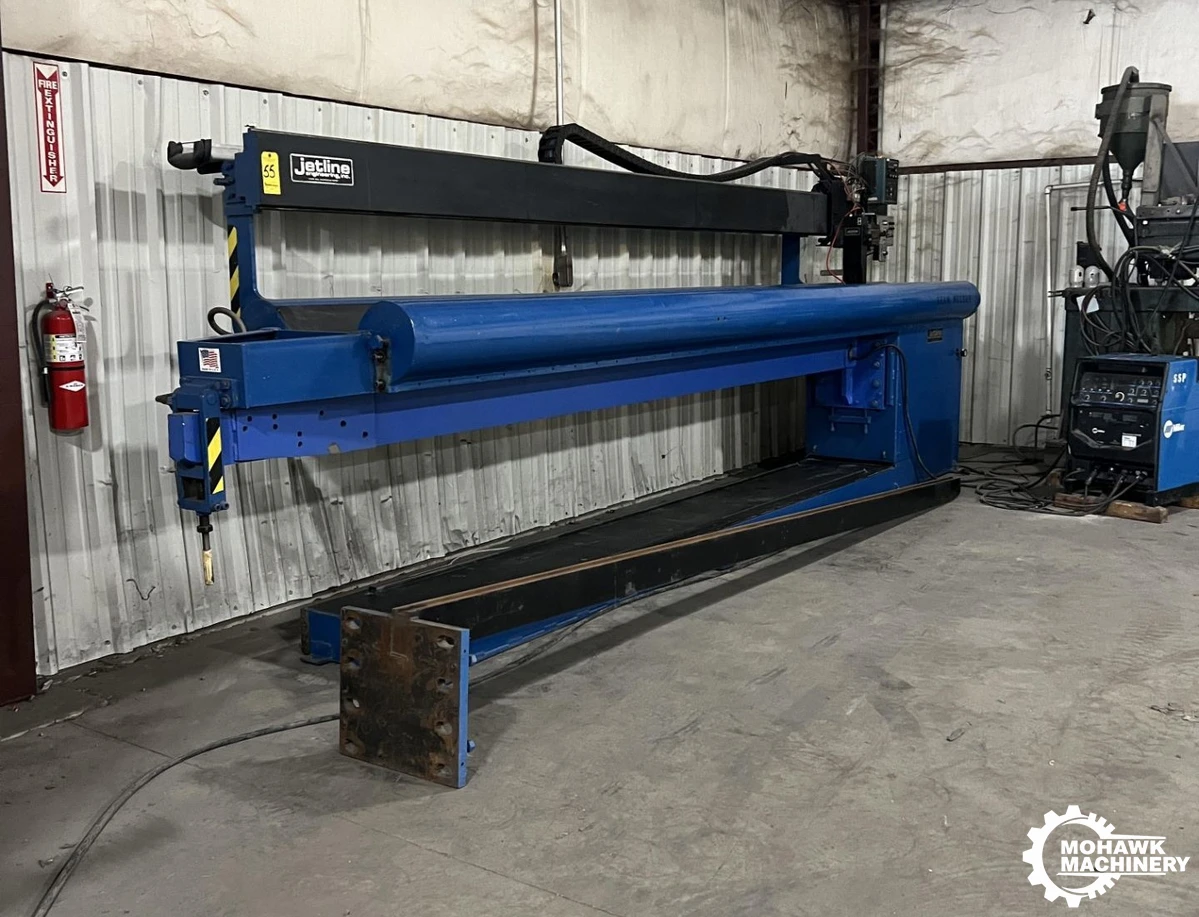

168" (14') JETLINE " LWC-168" COMBINATION INTERNAL EXTERNAL LONGITUDINAL SEAM WELDER w/MILLER WELDER - ARC-LENGTH CONTROL

168" (14') JETLINE COMBINATION INTERNAL EXTERNAL
LONGITUDINAL SEAM WELDER
Model LWC-168,

EQUIPPED WITH:
Miller "SyncroWave 250DX" Welder (S/N LG300082L, Stock No 907194)
Jetline Model ALC-2016E Arc Length Controller (S/N200171)
Jetline Vari-Speed Carriage Controller
Jetline Torch Mounting Bracket w/Torch

CATALOG SPECIFICATIONS:
Welding Length Capacity 168"
Part Diameter, Internal Maximum 60" 2.5 M
Part Diameter, External Maximum 100" 2.5 M
Part Diameter, External Minimum 15.25" 387 MM
Carriage Speed, Range 0 to 100 IPM
Overall Length 248" 6300 MM
Overall Width 42" 1070 MM
Overall Height 100" 1940 MM
Weight, Approximately 15000 LBS 6800 KG

NOTE: The Combination Style Seam Welder Is Designed
For The Welding Of Cylindrical Tanks And Vessels. Parts
Can Be Loaded Either Under (For Smaller Diameters) Or
Over The Tabletop. (For Larger Diameters)
F.O.B. OUR WAREHOUSE
