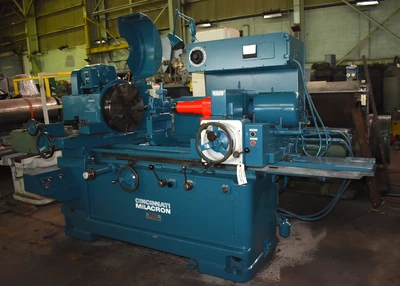

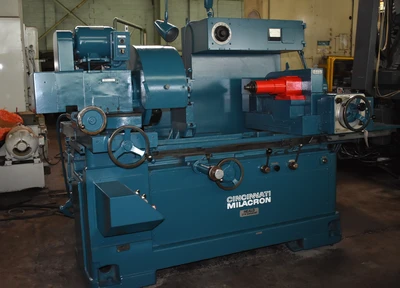

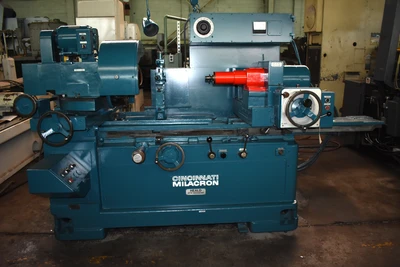

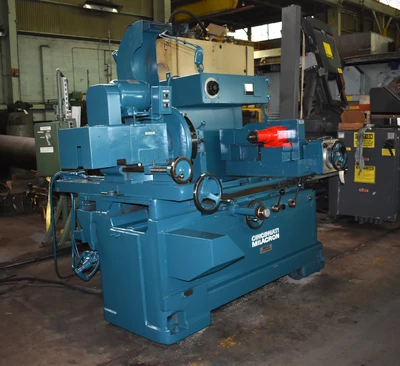

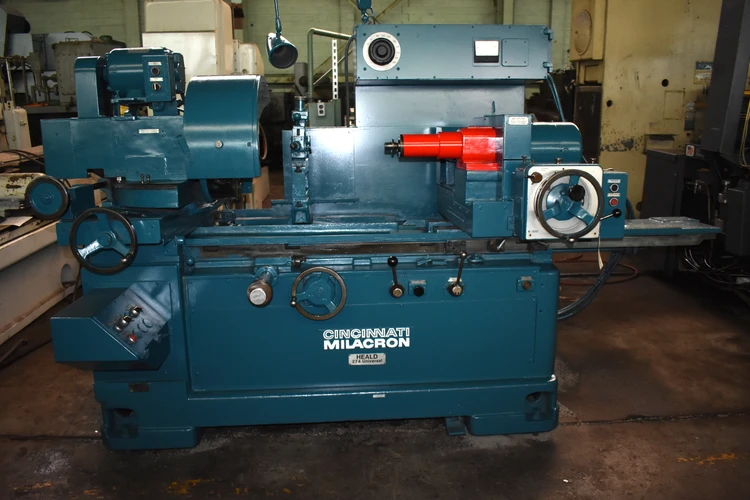

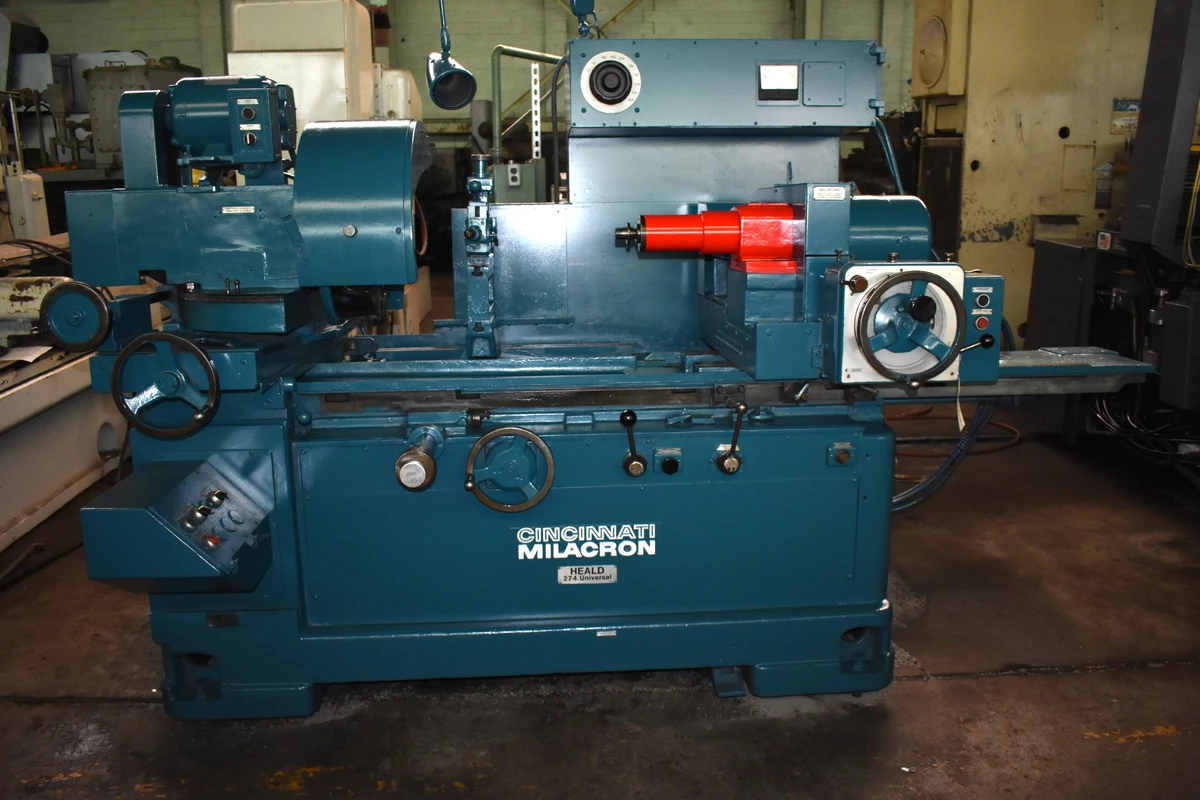

274 CINCINNATI-MILACRON/HEALD "UNIVERSAL" LONG-BASE INTERNAL GRINDER w/RED-HEAD - WHEEL DRESSER

Swing Over Table, Maximum 30"

Swing Over Workhead Slide-Head, 90-Degree 20"

Bore Diameter Ground, Maximum 21.75"

Bore Length Ground, Maximum 14"

Table Longitudinal Travel 30.25"

Workhead Cross-Slide Travel, Front 6"

Workhead Cross-Slide Travel, Rear 15"

Grinding Angle, Maximum Included 9-DEGREES

Workhead Swivel Angle, Maximum 90-DEGREES

Workhead Spindle Speeds, Range 40 TO 350 RPM

Grinding Table Speeds, Infinite 0 TO 15 FPM

Center Of Chuck Spindle From Floor 48"

Workhead Spindle Flange, Diameter 9.625"

Power Rapid Table Traverse 35 FPM

Floor Space, L x W 123" x 101"

Weight, Approximately 8850 LBS

NOTE: This Machine Is A Long-Base Internal Grinder With Wide Angular

Capacity, Broad Application Versatility, Speed, Ease Of Operation

And Efficiency.

F.O.B. ON WAY IN
