41" x 13" DAKE/JOHNSON "VH40" VERTICAL BAND SAW w/HYDRAULIC TRAVEL TILT TABLE - BLADE WELDER & GRINDER

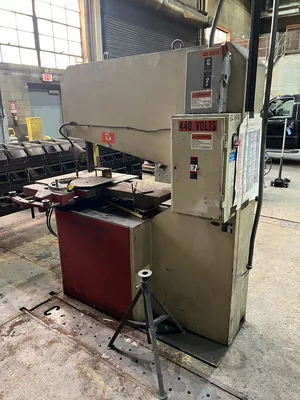

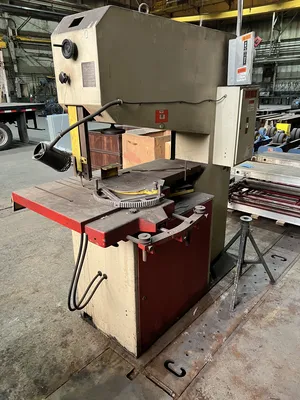

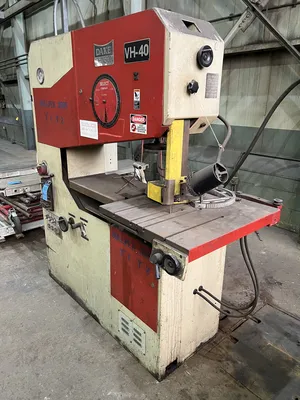

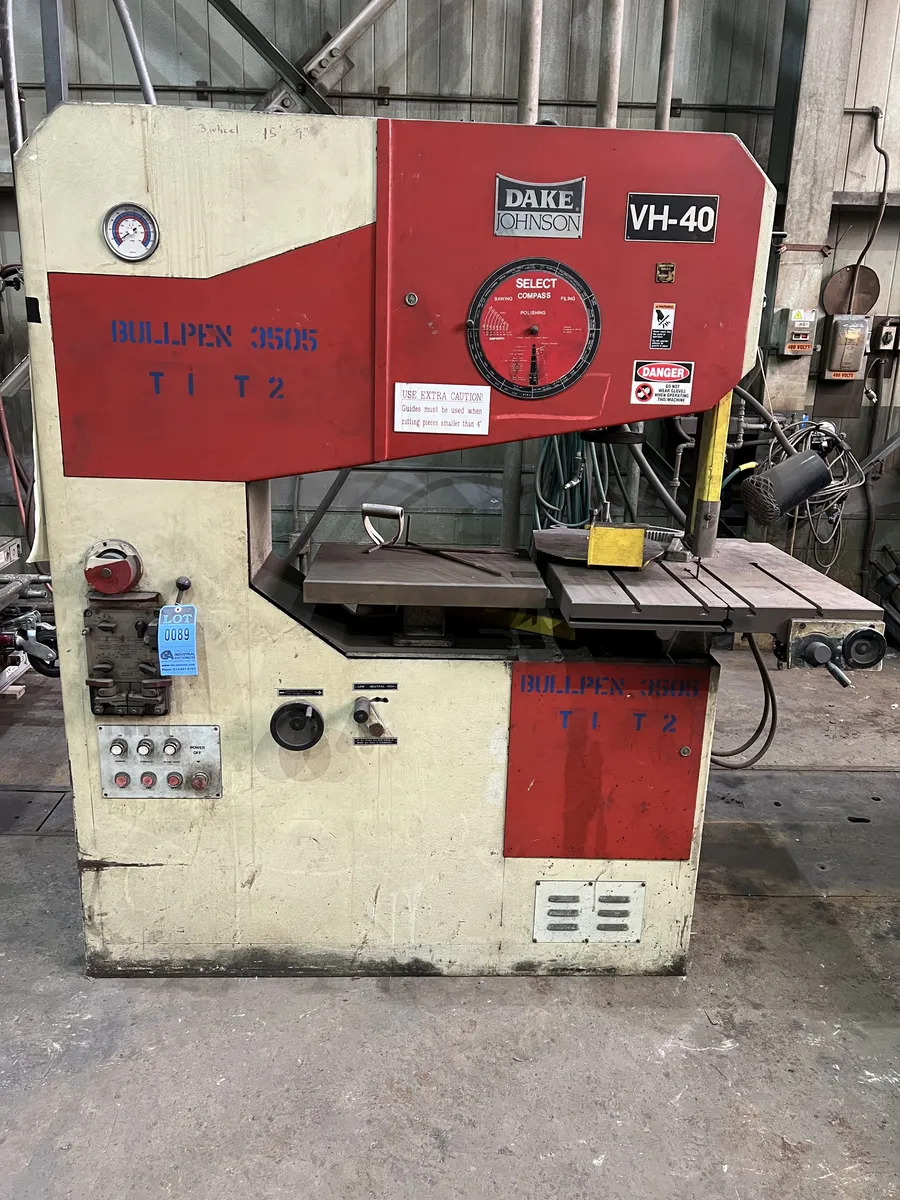

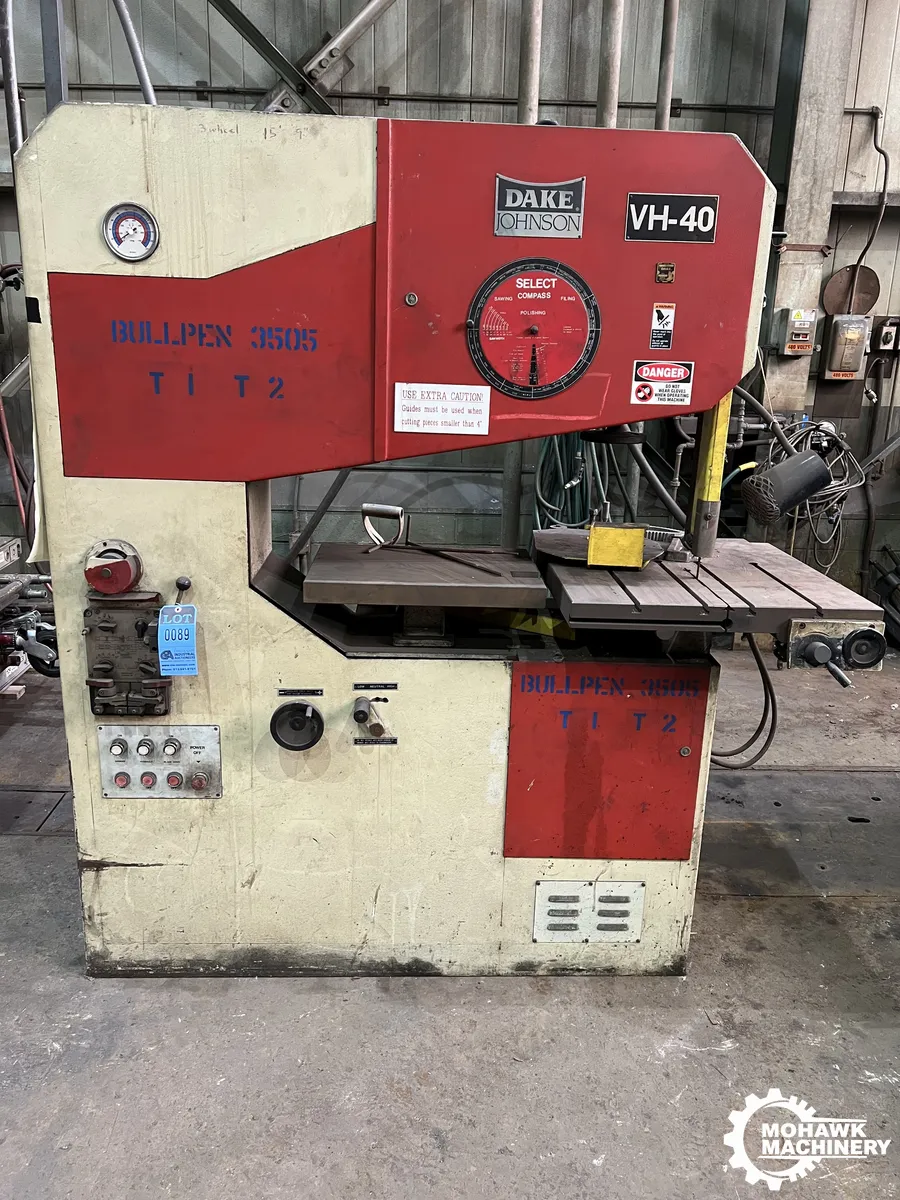

41" x 13" DAKE/JOHNSON VERTICAL BAND SAW
Serial No 195503, Model VH40

EQUIPPED WITH:
Hydraulic Travel Tilting Table
Auxiliary Work Table
Bade Welder & Grinder (5/16" to 3/4" Cap)

CATALOG SPECIFICATIONS:
Work Capacity, Nominal 41" x 13"
Work Height Capacity, Maximum 13"
Throat Depth, Rated 41"
Table Longitudinal Travel (X-Axis) 10"
Table Dimensions (Overall), W x L 26.3" x 26.3"
Auxilliary Table Dimensions, W x L 15.5" x 21.5"
Table Tilt, Left 10-DEGREES
Table Tilt, Right 30-DEGREES
Blade Width, Range .125" to .75"
Blade Speeds, Infinitely Variable 50 to 5000 FPM
Band Wheel Diameters 16.5"
Main Motor, Horsepower 2.2 HP
Floor Space Required, W x D 5' x 6'
Overall Height 6'6"
Weight, Approximately 2345 LBS
F.O.B. OUR WAREHOUSE
