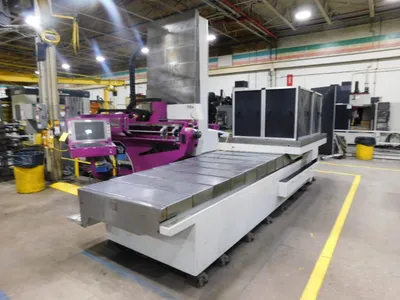

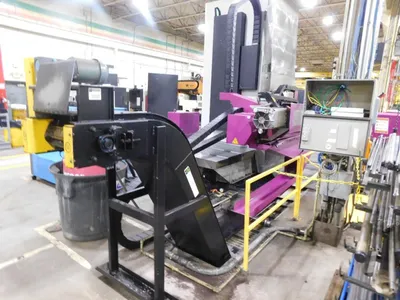

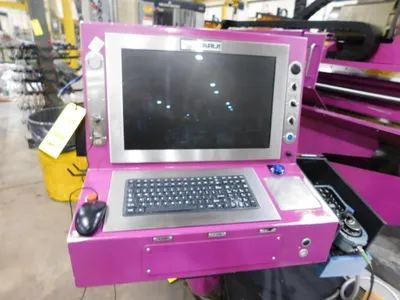

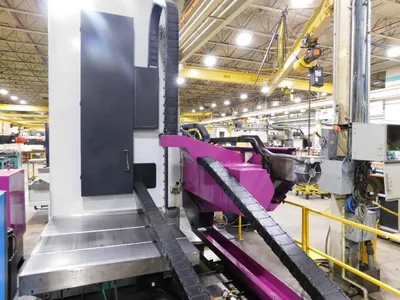

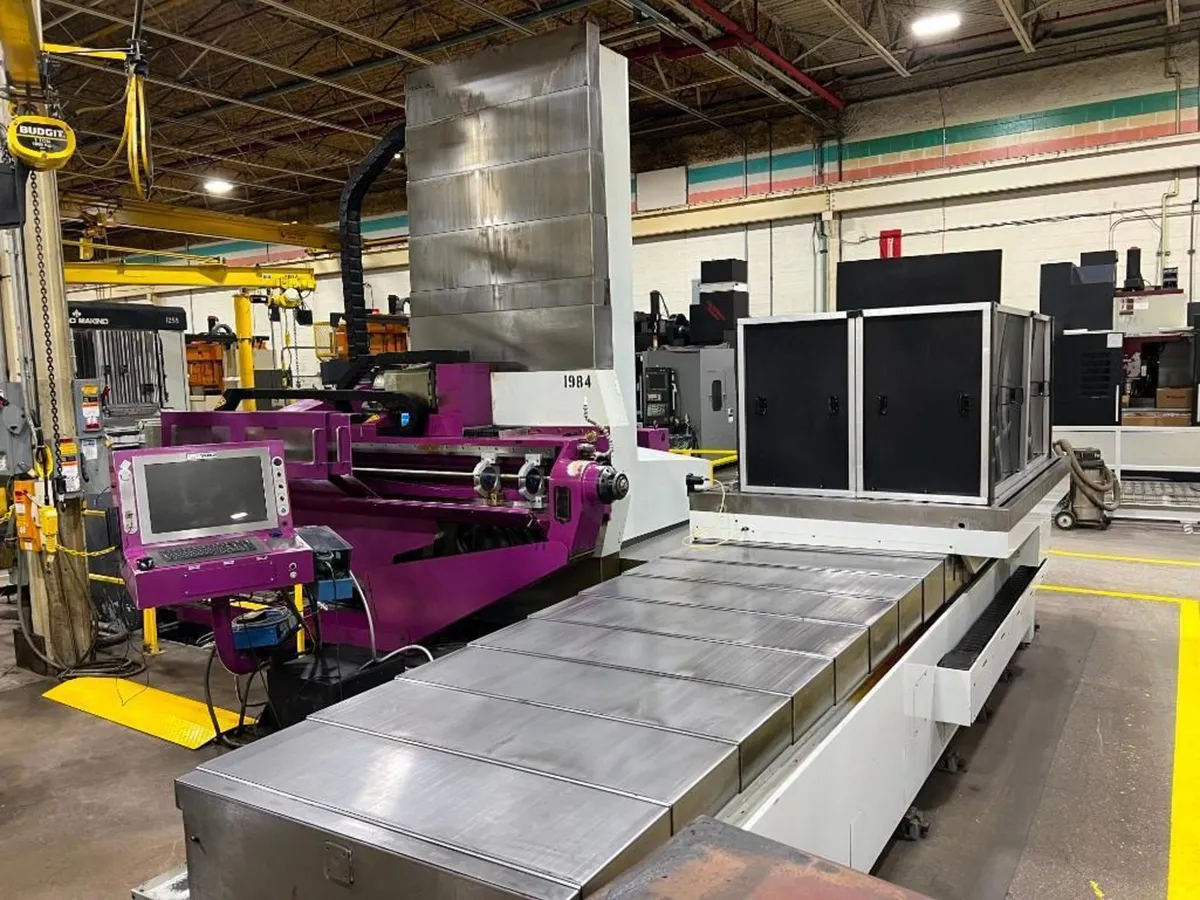

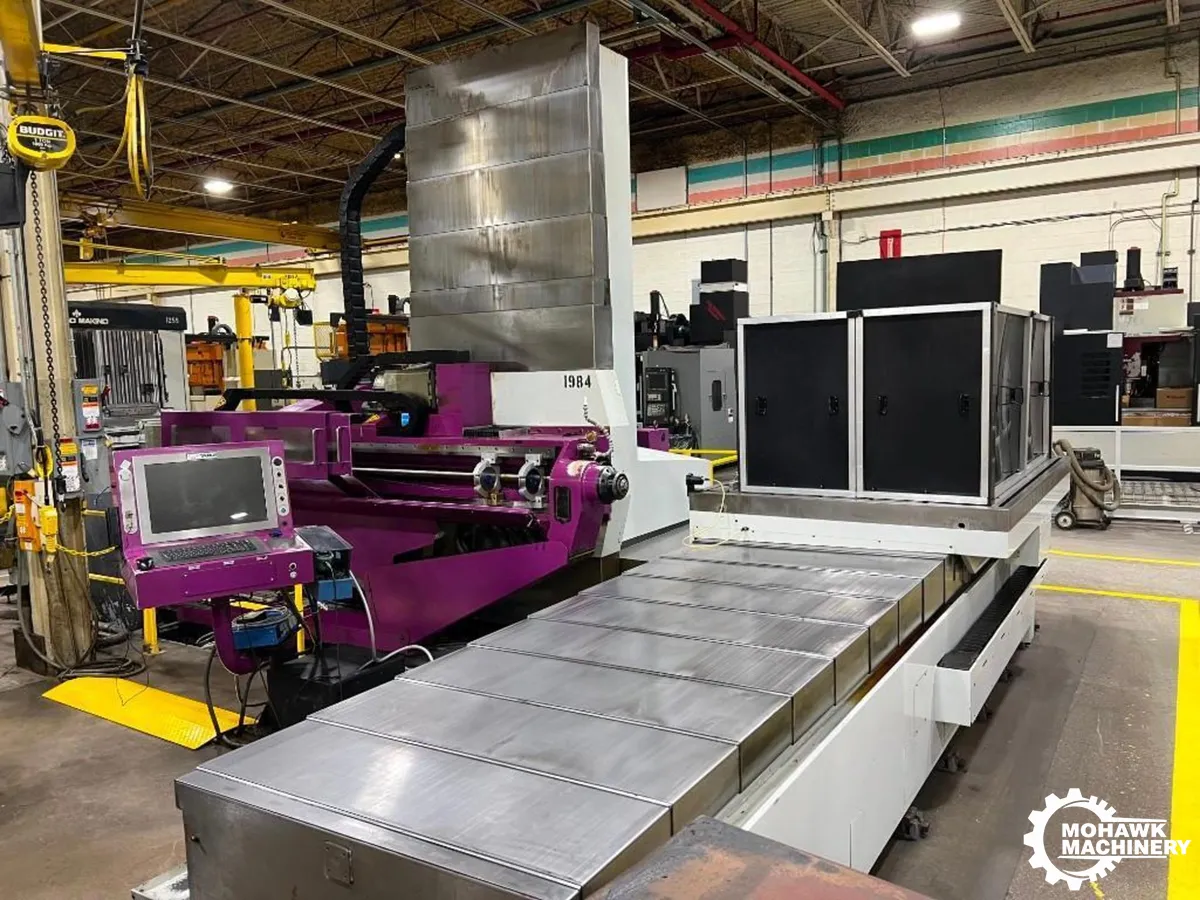

2" x 84" TARUS "TPTCGD508SB" HEAVY-DUTY 4-AXIS CNC DEEP HOLE GUN DRILL w/TPI 2000 PC BASED CNC CONTROL - AUXILIARY SPINDLE - HIGH PRESSURE COOLANT - ELECTOMAGNETIC WORK HOLDING CHUCK (2013)

Gun Drilling Diameter, Maximum 2"

Drilling Diameter, Minimum 0.125"

BTA/STS Drillling Diameter, No Pilot 7.5"

BTS/STS Drilling Diameter, w/Pilot 2.22"

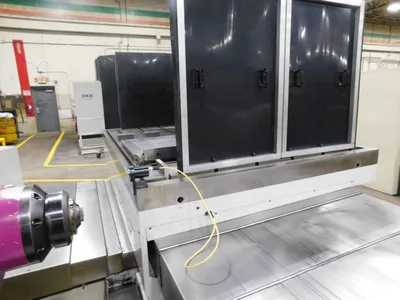

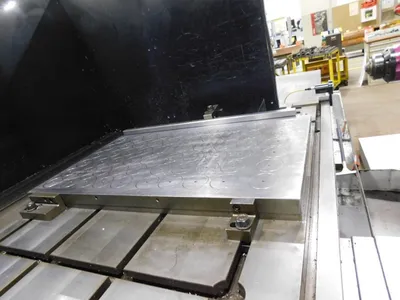

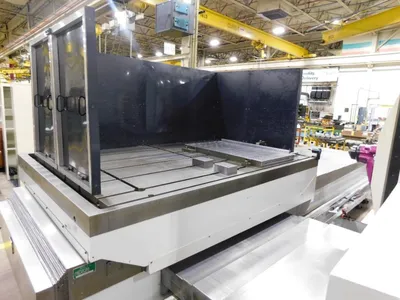

Table Dimensions, L x W 96" x 62"

Table Weight Capacity, Maximum 30000 LBS

Table Travel (X-Axis) 106"

Vertical Head Travel (Y-Axis) 60"

Column Travel In/Out (Z-Axis) 46"

Drill Stroke No Whip Guides, (W-Axis) 93"

Drill Stroke w/(3) Whip Guides (W-Axis) 81.4"

Main Spindle Speeds, Range 0 to 3394 RPM

Auxiliary Spindle Speeds, Range 0 to 3500 RPM

Auxiliary Spindle Taper CAT 50

Auxiliary Spindle Stroke (In/Out) 10"

Main Spindle Horsepower 29.5 HP (22KW)

Auxiliary Spindle Horsepower 29.5 HP (22KW)

NOTE: The Primary Function Of The Tarus Gundrill Is To Drill Holes In Steel

Molds. These Hole Types Can Vary From Coolant Line, Flow Lines, Eye-Bolt

Holes And Clearance Holes. Tarus Gundrills Can Use Both Standard

Gundrills And Single Tube Tooling (BTA/STS Drills). Drilling Up To 2"

Diameter With Gundrills And 1.5" With Single Tube Tooling. This Machine

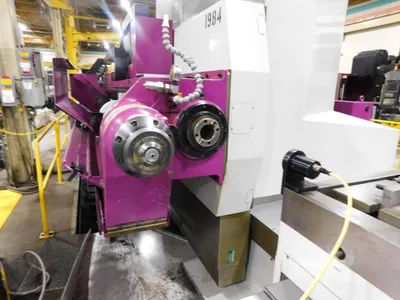

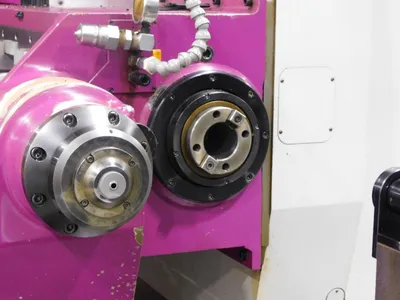

Is Also Equipped With An Auxiliary Spindle With It's Own Spindle Motor

And A Cat 50 Taper. This Spindle Is Used For General Milling, Tapping,

Spot Facing, Counter Boring, Thread Milling And Conventional Drilling.

NOTE: Foundation Drawings & Machine Layout Available At Request.

F.O.B. OUR WAREHOUSE
