SV-40P JOHNFORD "SUPER VERTICAL" CNC VERTICAL MACHINING CENTER w/FANUC Oi-MC CNC CONTROLS - 24-POSITION AUTOMATIC TOOL CHANGER - 41.3” X-AXIS TRAVEL - 19.7” Y-AXIS TRAVEL - 24” Z-AXIS TRAVEL
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available

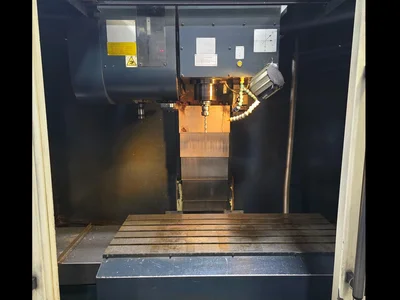

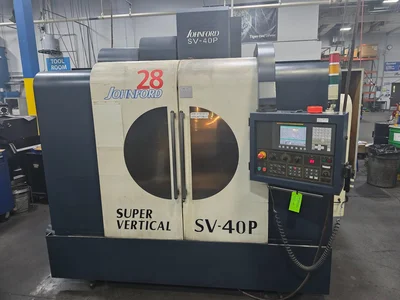

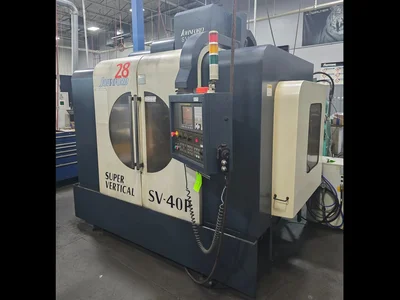

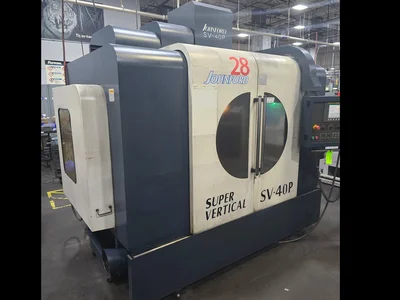

SV-40P JOHNFORD "SUPER VERTICAL" CNC VERTICAL MACHINING CENTER

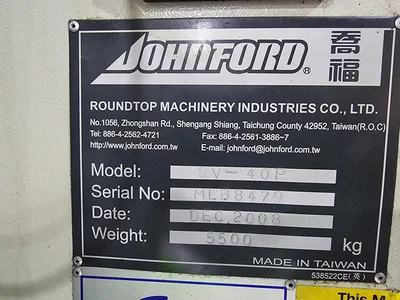

New 2008, Serial No MLB8479, Model SV-40P

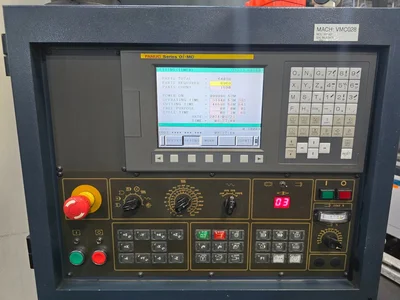

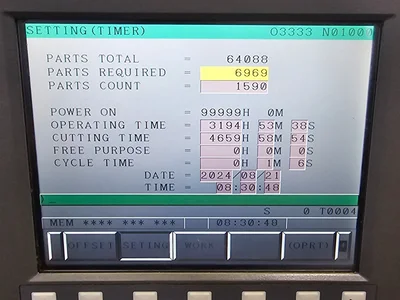

Fanuc oi-MC CNC Control

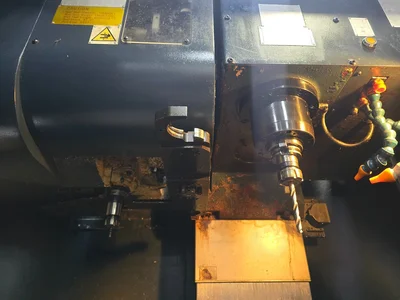

24-Positon Automatic Tool Changer (Twin-Arm Cam-Type)

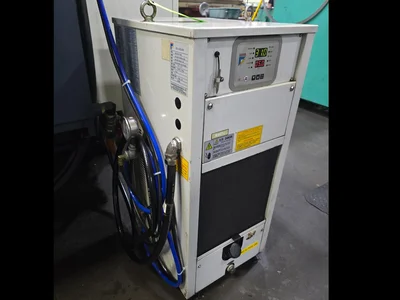

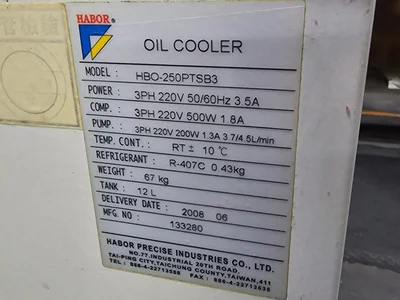

Harbor Precise Oil Cooler (Model HBO-250PTSB3)

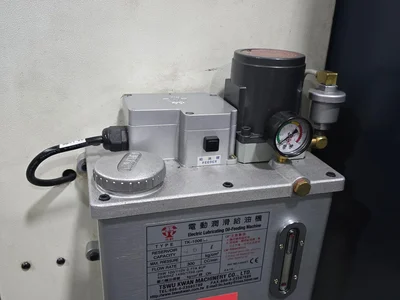

Automatic Lube System
Coolant System

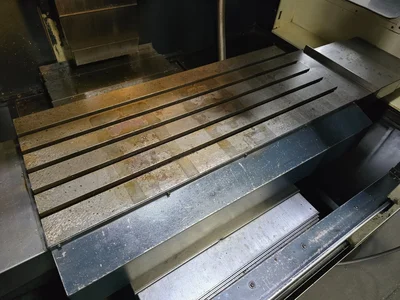

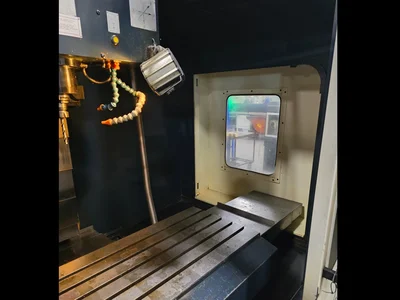

Table Working Surface, W X L 19.7" X 47.2"
Table Load Capacity 1320 LBS
X-Axis Table Longitudinal Travel 41.3"
Y-Axis Saddle In/Out Cross Travel 19.7"
Z-Axis Spindle-Head Vertical Travel 24"
Distance Spindle Face to Table, Maximum 28"
Distance Spindle Face to Table, Minimum 3.94"
Distance Spindle Center to Column 21.7"
Spindle Taper CAT 40
Spindle Speeds, Range 60 to 10000 RPM
Power Rapid Traverse, (X,Y-Axis') 1181 IPM
Power Rapid Traverse, (Z-Axis) 787 IPM
Torque Rating, (X,Y,Z-Axis) 96.6 IN/LBS
Spindle Motor Horsepower 15 HP
Spindle Motor (30-Minute) 20 HP
Overall Dimensions, L X W 115" X 87"
Overall Height 119"
Weight, Approximately 13200 LBS
F.O.B. OUR WAREHOUSE
