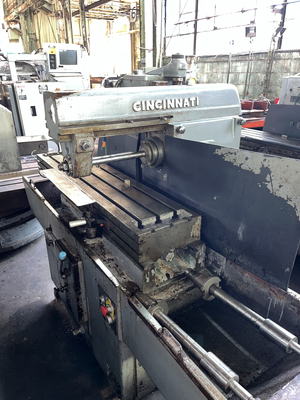

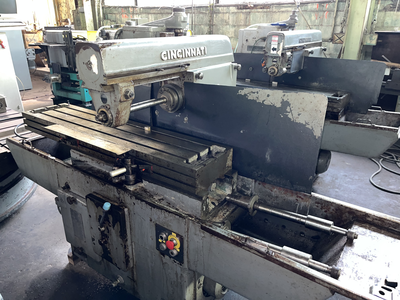

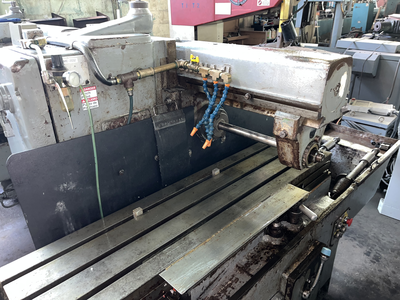

107-122.5 CINCINNATI-MILACRON "DK’ POWERMATIC HORIZONTAL-SPINDLE PRODUCTION MILL w/ARBOR SUPPORT

Table Working Surface, W x L 12" x 60"

Table Longitudinal Travel (X-Axis) 30"

Spindle-Head Vertical Travel (Y-Axis) 8"

Quill Cross Adjustment (Z-Axis) 3"

Spindle-Center To Table-Top, Minimum 3.25"

Spindle-Center To Table-Top, Maximum 11.25"

Quill Diameter 6"

Spindle Nose Diameter 5.06"

Spindle Taper 50 NSTD

(16) Spindle Speeds, Range 50 to 2000 RPM

Longitudinal Table Feeds, Range 1 to 40 IPM

Power Rapid Table Traverse 300 IPM

Spindle Motor, Horsepower 7.5 HP

Feed Drive Motor, Horsepower 1.5 HP

Electrical System 220-440/3/60

Floor Space Required, L x D 103" x 64"

Overall Height 57

Weight, Approximately 5600 LBS

F.O.B. OUR WAREHOUSE
