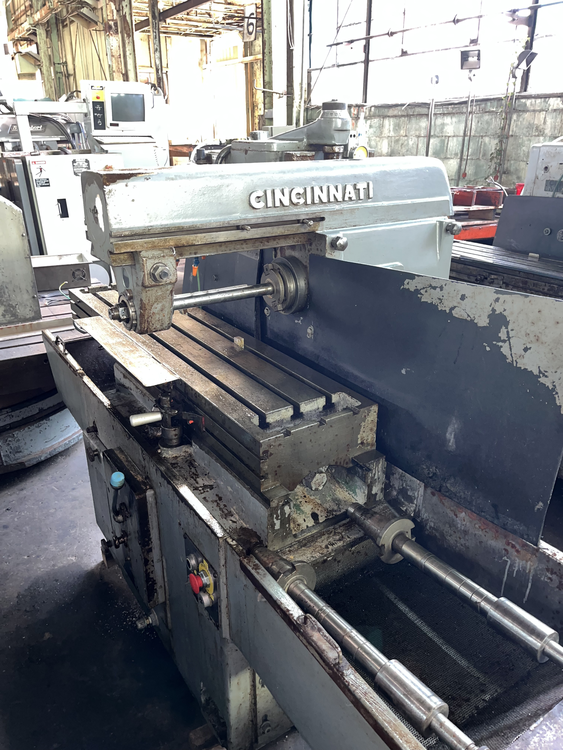

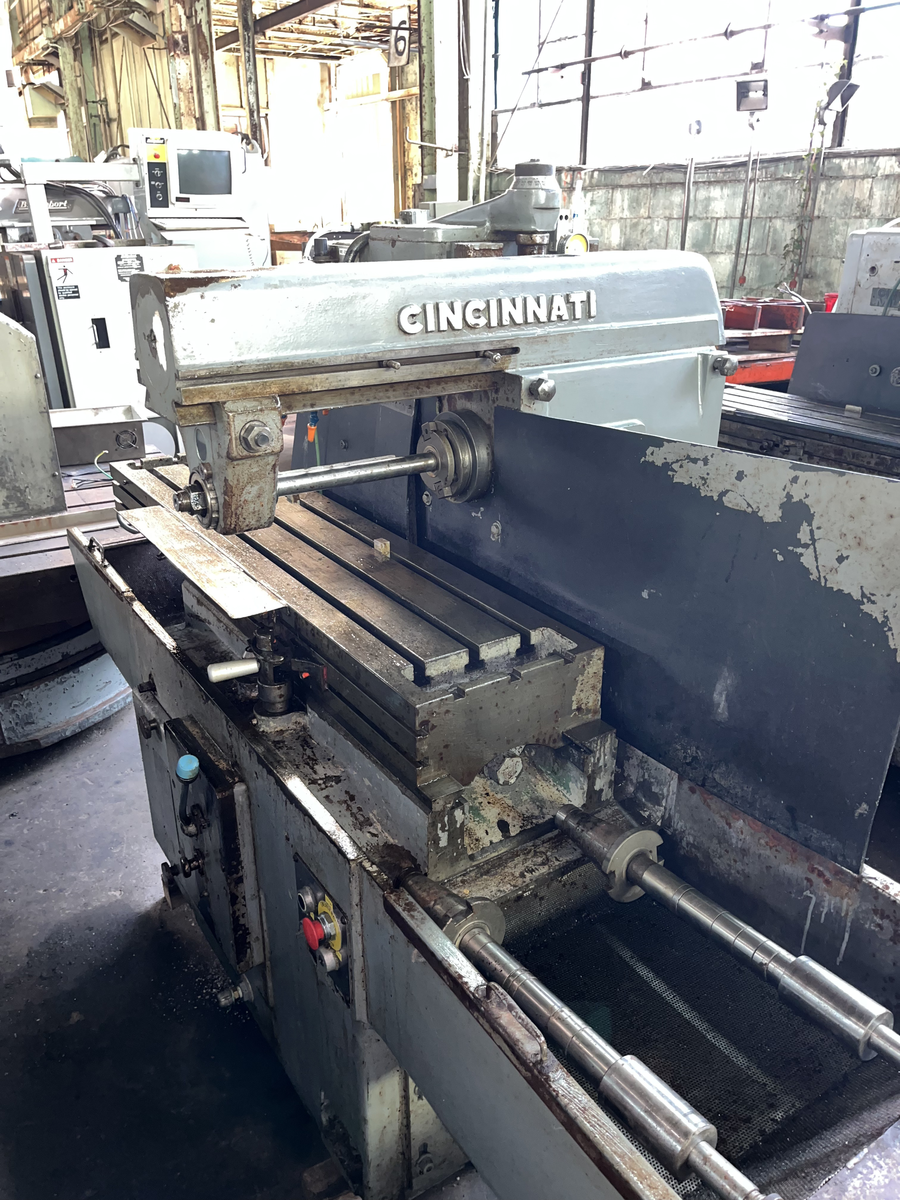

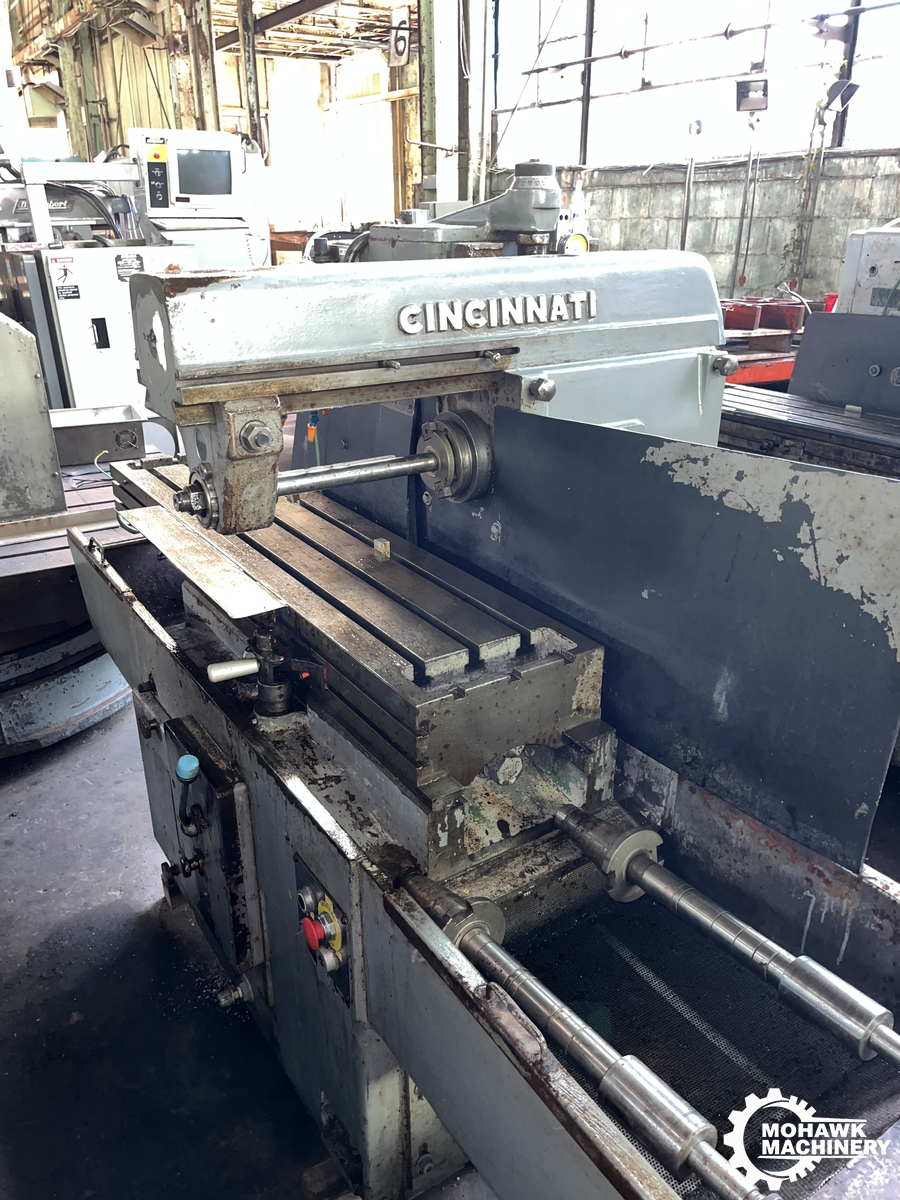

107-122.5 CINCINNATI-MILACRON "DK’ POWERMATIC HORIZONTAL-SPINDLE PRODUCTION MILL w/ARBOR SUPPORT

107-122.5 CINCINNATI-MILACRON "POWERMATIC DK"
HORIZONTAL-SPINDLE PRODUCTION MILL
Serial No 31121H76-0008, Model 107-122.5,
Series POWERMATIC DK

EQUIPPED WITH:
(1) Arbor Support
Bijur Automatic Lubrication System
Change Gears
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 12" x 60"
Table Longitudinal Travel (X-Axis) 30"
Spindle-Head Vertical Travel (Y-Axis) 8"
Quill Cross Adjustment (Z-Axis) 3"
Spindle-Center To Table-Top, Minimum 3.25"
Spindle-Center To Table-Top, Maximum 11.25"
Quill Diameter 6"
Spindle Nose Diameter 5.06"
Spindle Taper 50 NSTD
(16) Spindle Speeds, Range 50 to 2000 RPM
Longitudinal Table Feeds, Range 1 to 40 IPM
Power Rapid Table Traverse 300 IPM
Spindle Motor, Horsepower 7.5 HP
Feed Drive Motor, Horsepower 1.5 HP
Electrical System 220-440/3/60
Floor Space Required, L x D 103" x 64"
Overall Height 57
Weight, Approximately 5600 LBS
F.O.B. OUR WAREHOUSE
