120 TON HEIM ROUSSELLE "G1-120-4D.T." OPEN BACK DEEP-THROAT GAP FRAME PRESS w/30” THROAT - MICROGUARD PLC CONTROL - 40” X 40” T-SLOTTED BOLSTER
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available

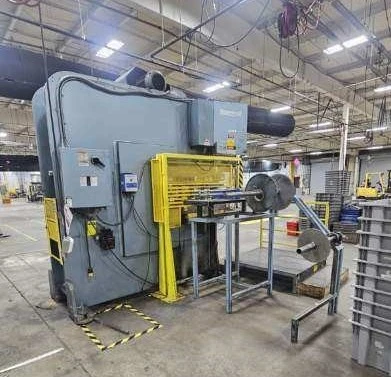

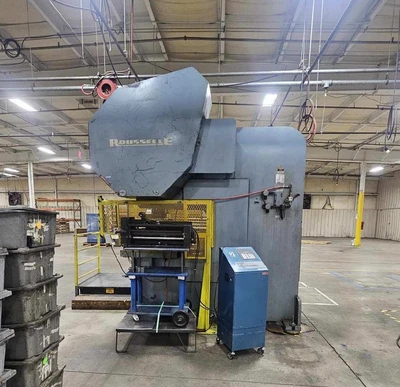

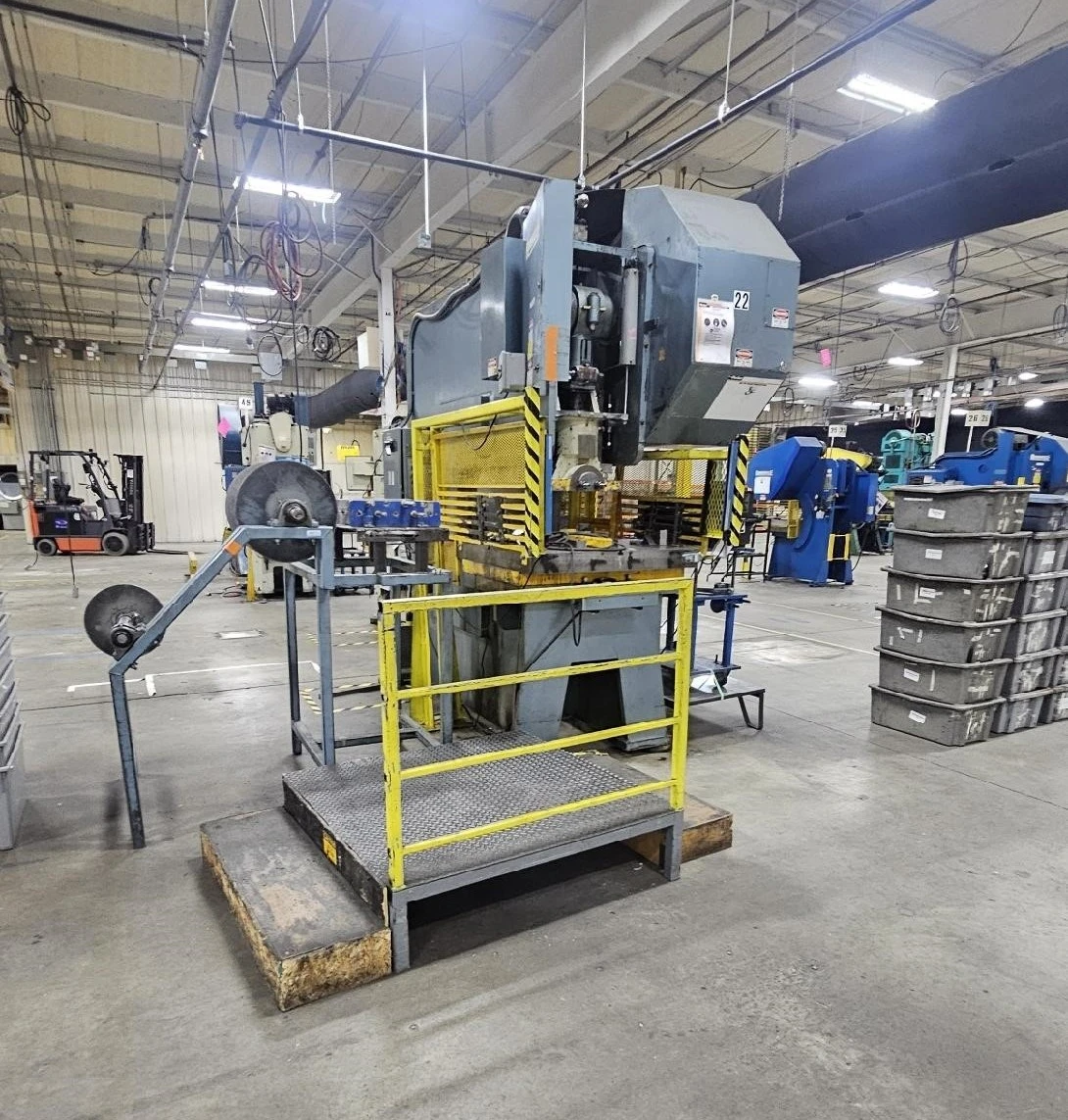

120 TON HEIM ROUSSELLE OPEN-BACK STATIONARY
"DEEP THROAT" GAP-FRAME PRESS
Serial No P-32598, Model G1-120-4 D.T.
30" Stationary Fabricated Steel Deep-Throat Frame
MicroGuard Self Diagnostic Programmable Logic Controller (PLC)
Air Clutch & Brake

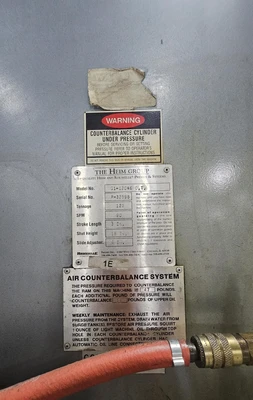

Air Counterbalance
Power Slide Adjustment
Bijur Automatic Lubrication
40" x 40" x 4" T-Slotted Bolster Plate
Tonnage Capacity, (Nominal) 120 TON
Stroke Length 3"
Shut Height, S.D.A.U. 18"
Slide Adjustment 4"
Slide Area, L-R x F-B 18.5" x 13"
Bed Area, L-R x F-B 30" x 30"
Bolster Area, L-R x F-B 40" x 40"
Bolster Thickness 4"
Bed Opening, L-R x F-B 18" x 16"
Throat Depth 30"
Width Of Opening Thru Back 20"
Strokes per Minute 90 SPM
Drive Motor, Horsepower 10 HP
Floor Space At Base, L-R x F-B 42" x 95"
Overall Height 121"
NOTE: Previous Owner Removed Feed Equipment & Light Curtains
From This Press.
F.O.B. OUR WAREHOUSE
