32 TON HEIM ROUSSELLE "G1-32-4D.T." OPEN BACK DEEP-THROAT GAP FRAME PRESS w/MICROGUARD PLC CONTROL - 18” THROAT - 45” X 30” T-SLOTTED BOLSTER
Have one to sell?
$6,950.00 USD
ConditionUsed
1 available

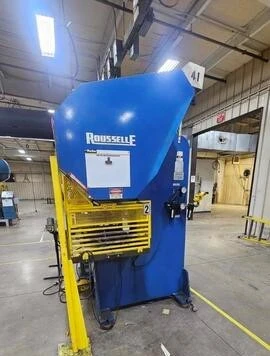

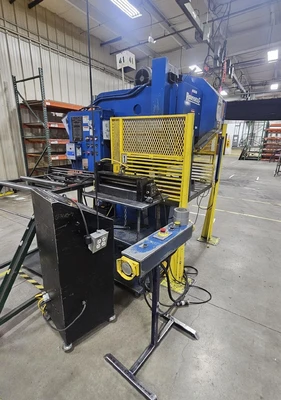

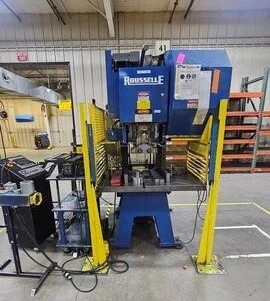

32 TON HEIM ROUSELLE OPEN BACK DEEP-THROAT GAP FRAME PRESS

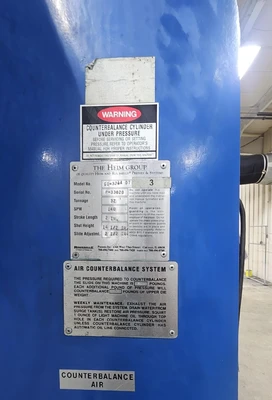

Serial No P-33020, Model G1-32-4D.T.
18" Stationary Fabricated Steel Deep-Throat Frame
MicroGuard Self Diagnostic Programmable Logic Controller (PLC)
Air Clutch & Brake
Air Counterbalance
Power Ram Adustment
Bijur Automatic Lubrication System
45" x 30" x 2.5" T-Slotted Bolster Plate
Tonnage Capacity 32 TON
Stroke Length 2"
Shut Height, (SDAU) 14.5"
Slide Adjustment 2.5"
Slide Area, L-R x F-B 12" x 9"
Bed Area, L-R x F-B 24" x 15"
Opening In Bed, L-R x F-B 14" x 7"
Throat Depth 18"
Width Of Opening In Back 16"
Strokes Per Minute 140 SPM
Motor, Horsepower 3 HP
Electrical System 220-440/3/60
Floor Space At Base, L-R x F-B 37" x 49"
Overall Height 97"
NOTE: Previous Owner Removed Feed Equipment & Light Curtains.
F.O.B. OUR WAREHOUSE
