40 TON ROUSSELLE "4" FLYWHEEL-TYPE O.B.I. PRESS w/26.5” X 16” T-SLOTTED BOLSTER PLATE

40 TON ROUSSELLE "4" FLYWHEEL-TYPE O.B.I. PRESS w/26.5” X 16” T-SLOTTED BOLSTER PLATE

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$4,950.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
OBI Presses (Open Back Inclinable)
Manufacturer:
ROUSSELLE
Model:
4
Stock #:
30496
Status:
For Sale

Description

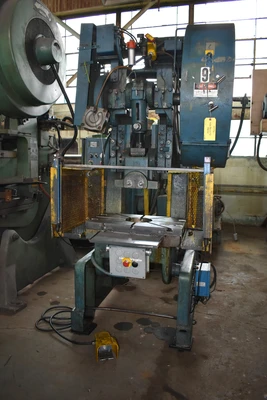

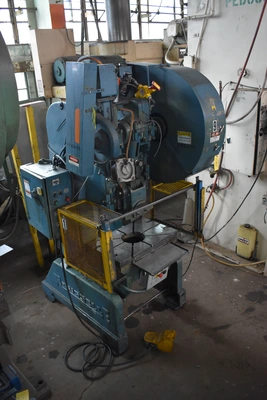

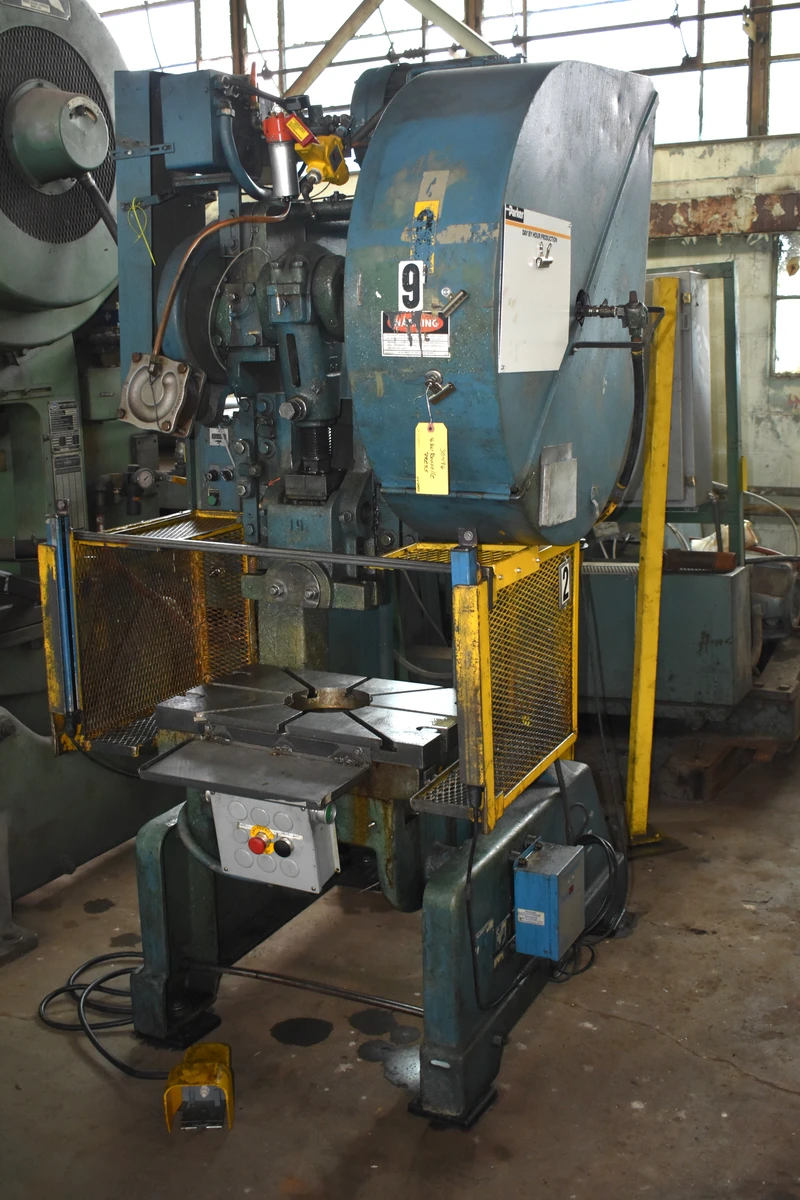

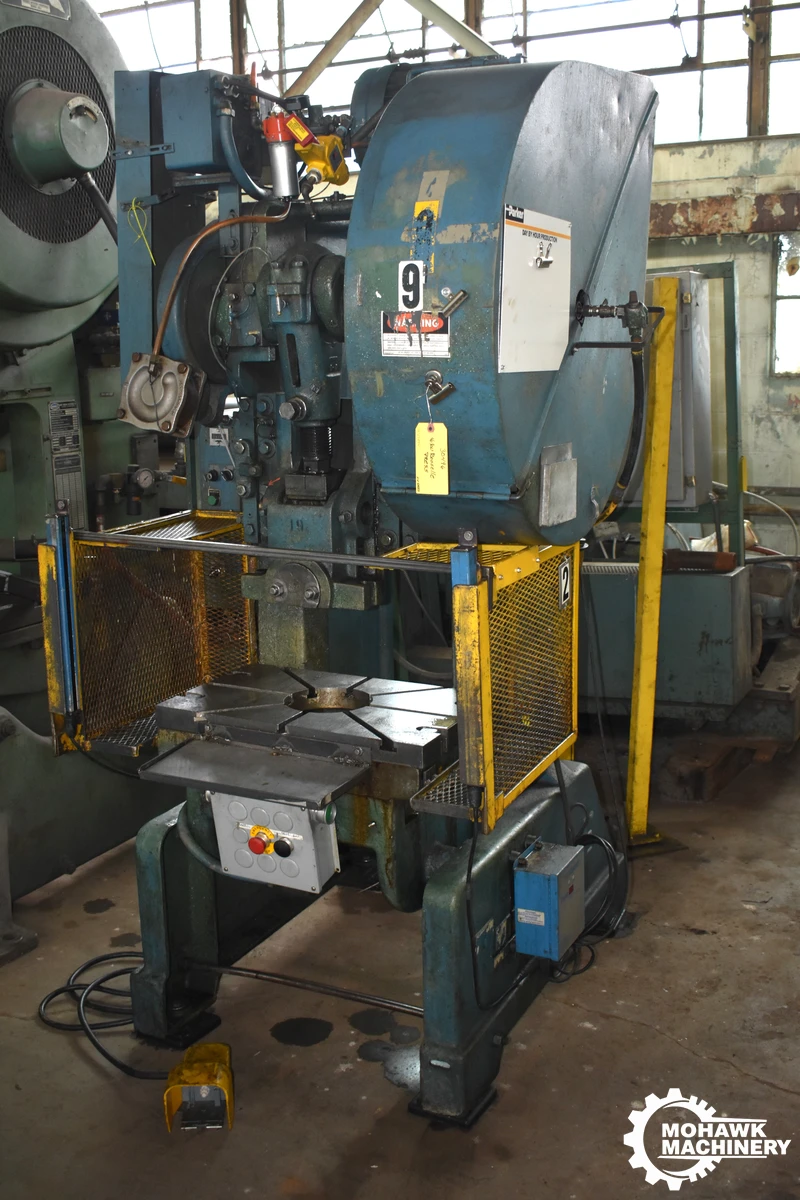

40 TON ROUSSELLE O.B.I. PRESS

Serial No. 23894, Model 4

Air Clutch & Brake

Flywheel Type Design

One Shot Lubrication

26.5" x 16" x 2" T-Slotted Bolster Plate

Tonnage40 T36.287 t
Stroke4"101.6 mm
Shut Height11"279.4 mm
Bed W26"660.4 mm
Bed L16"406.4 mm
SPM105 strokes/min.105 strokes/min.
Air Clutch (Yes/No)YesYes
Type (BG, Double Action, FW)FlywheelFlywheel
Dimensions56 x 4856 x 48
Weight43004300

Tonnage Capacity 40 TON

Stroke Length 4"

Shut Height, (SDAU) 11"

Slide Adjustment 3.5"

Bed Area, L-R x F-B 26" x 16"

Bolster Area, L-R x F-B 26,5" x 16"

Opening in Bed, L-R x F-B 14" x 10"

Width of Opening in Back 16"

Throat Depth 9"

Distance from Bed to Floor 32"

Strokes per Minute 105 SPM

Motor Horsepower 3 HP

Overall Dimensions, W x L 56" x 48"

Weight, Approximately 4300 LBS

NOTE: Previous Owner Removed Feed Equipment & Light Curtains.

F.O.B. OUR WAREHOUSE
