| Tonnage | 25 T | 22.68 t |
| Stroke | 12.99" | 329.95 mm |
| Dimensions | 84 x 55 x 72 | 84 x 55 x 72 |

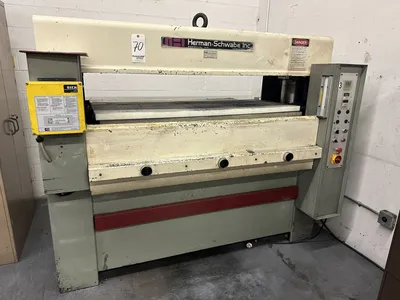

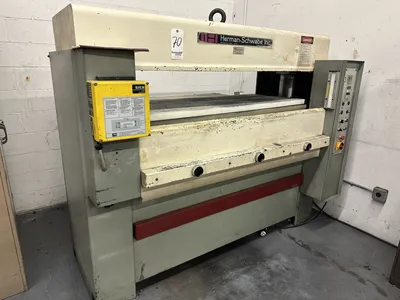

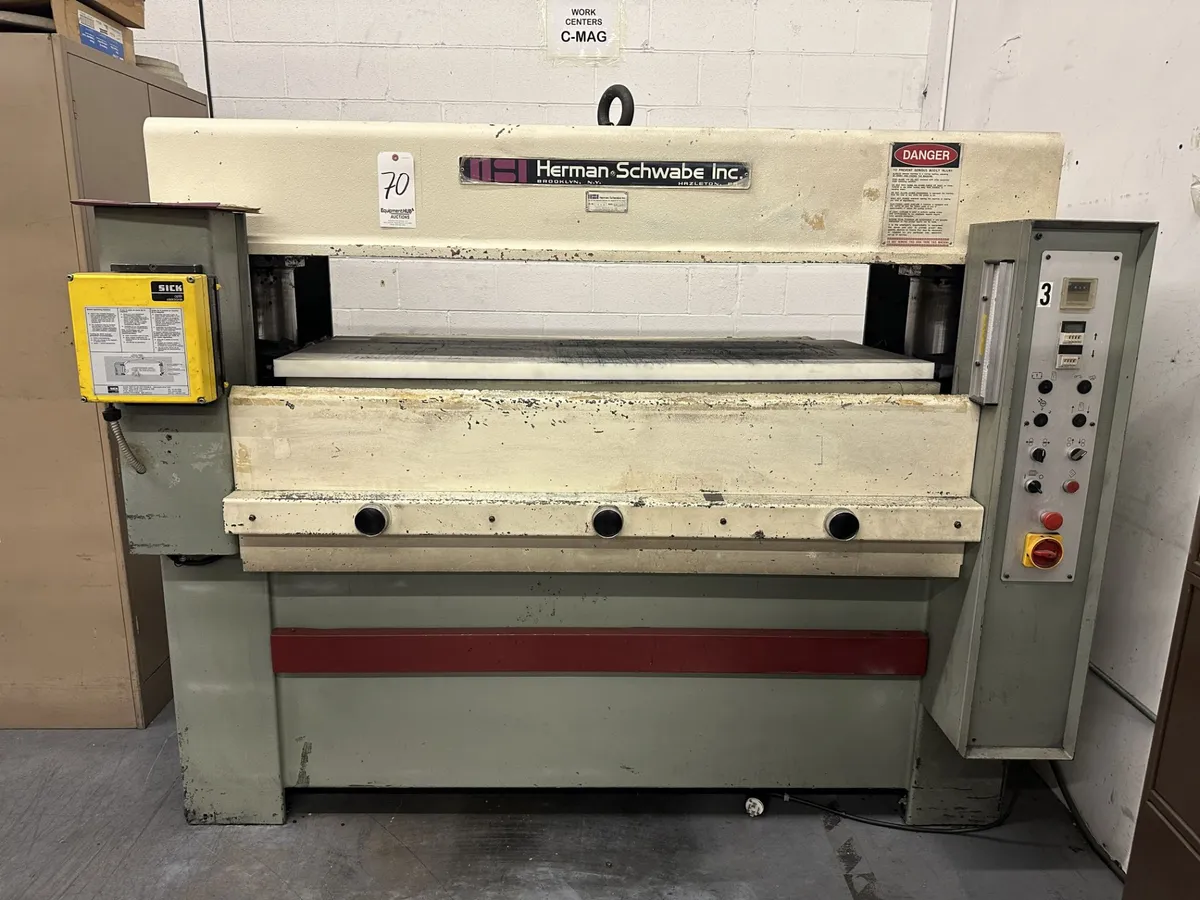

25 TON HERMAN SCHWABE HYDRAULIC
DIE-CUTTING CLICKER PRESS

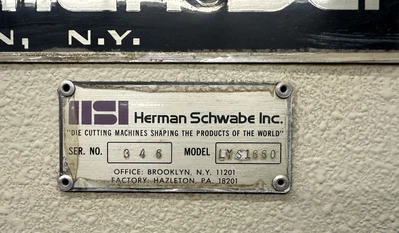

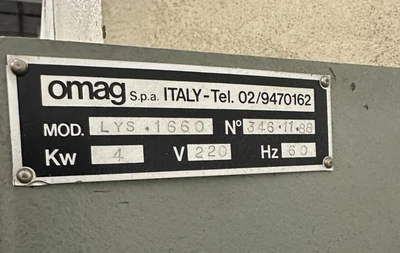

Serial No 346.11.88 Model No LYS 1660
EQUIPPED WITH:

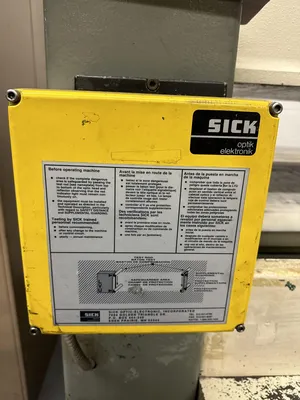

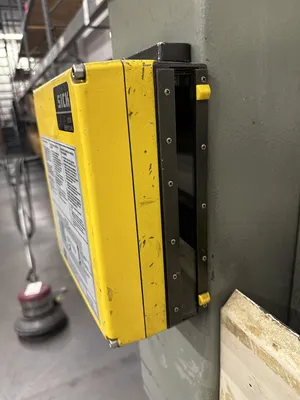

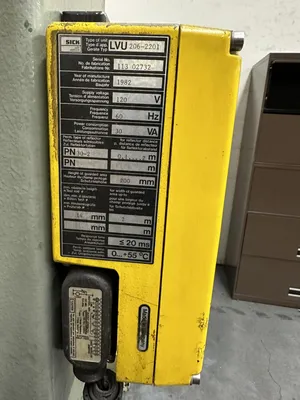

Sick Light Curtains
Twin Pillar Design

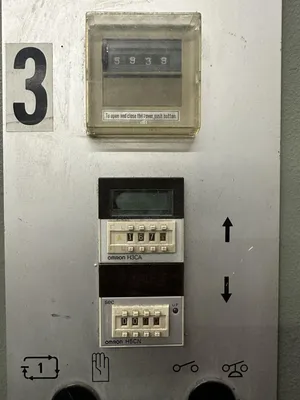

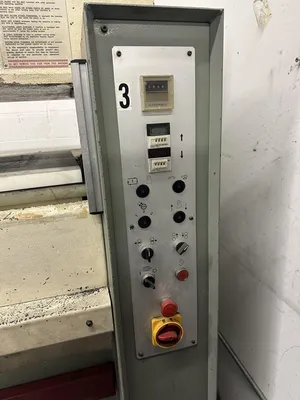

Manual/Automatic Operation
CATALOG SPECIFICATIONS:
Cutting Pressure, Maximum 25 TON

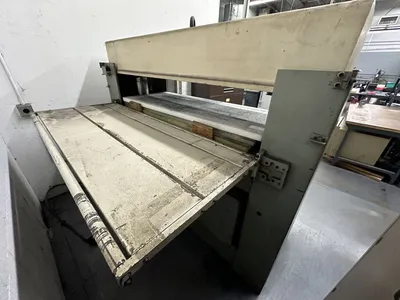

Table Working Surface, L x W 60" x 24"
Distance Between Columns 63.78"
Stroke Length, Maximum 12.99"
Daylight, Maximum 25.75"
Daylight, Minimum 2.75"
Downstroke Speed 12.99 IPS
Upstroke Speed 12.20 IPS
Motor Horsepower 5.5 HP
Overall Dimensions, L x W 84" x 55"
Overall Height 72"
F.O.B. OUR WAREHOUSE
