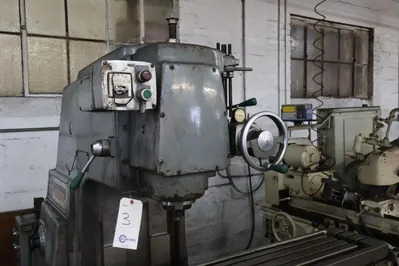

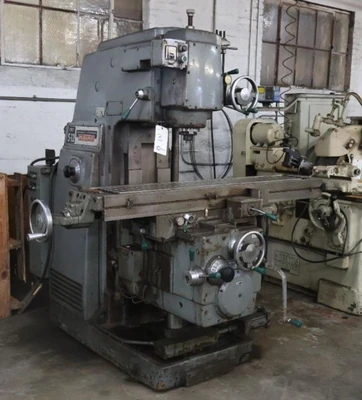

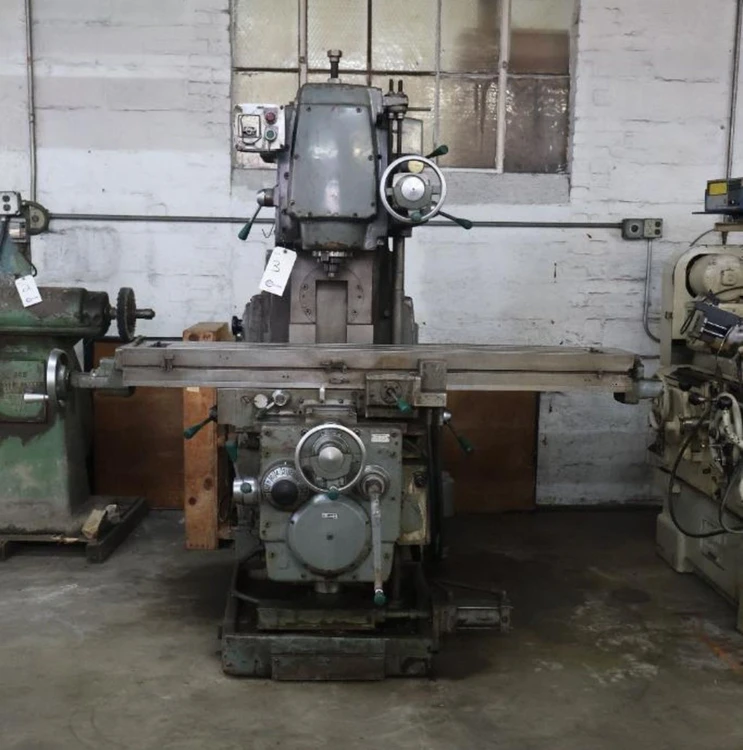

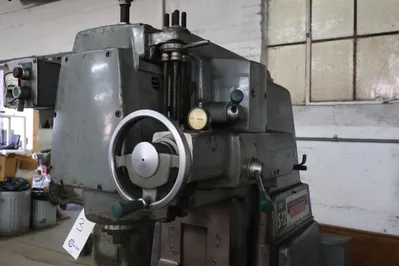

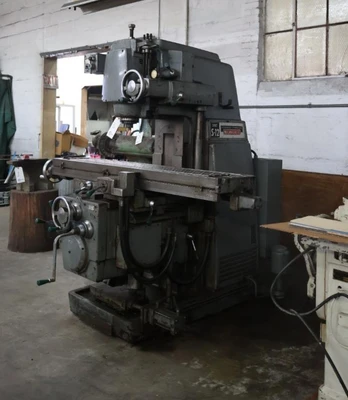

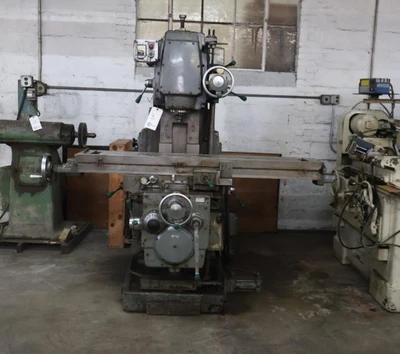

307 S-12 KEARNEY & TREACKER "S-12" VERTICAL MILL w/AUTOCYCLE WITH RISE & FALL OF KNEE - 7.5 HP MOTOR

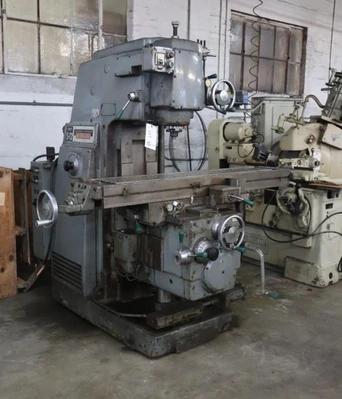

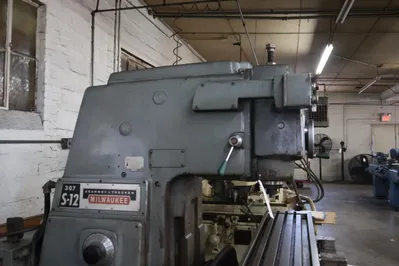

307 S-12 KEARNEY & TRECKER "S12" VERTICAL MILL

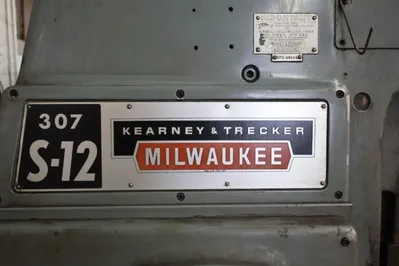

Serial No 53-1002-14, Model 307 S-12,

EQUIPPED WITH:
Autocycle w/Automatic Rise & Fall Of Knee
Automatic Backlash Eliminator

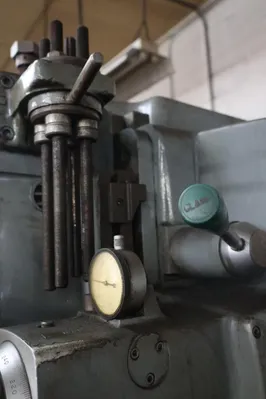

4-Position Turret Depth Stop
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 12" x 62.5"
Table Working Surface, W x L 12" x 62.5"
Table Longitudinal Travel (X-Axis) 34"
Saddle Cross Travel (Y-Axis) 12"
Knee Vertical Travel (Z-Axis) 14"
Head Vertical Travel (Z-Axis) 5"
Spindle Taper #50 NSTD

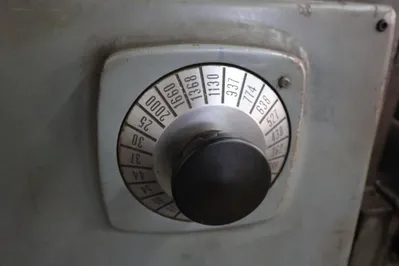

(24) Spindle Speeds, Range 25 to 2000 RPM
(16) Longitudinal and Cross Feeds 1/4 to 32 IPM
(16) Vertical Feeds, Range 1/8 to 16 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 75 IPM
Spindle Motor, Horsepower 7.5 HP
Feed Motor, Horsepower 1.5 HP
Weight, Approximately 6550 LBS

THIS MACHINE HAS ELECTROMECHANICAL PROBLEMS. WE ARE SELLING AS IS.

F.O.B. OUR WAREHOUSE
