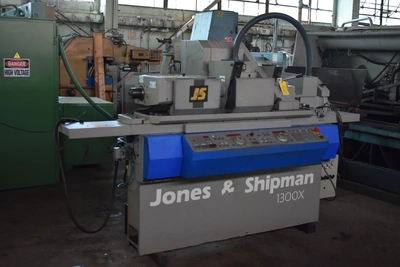

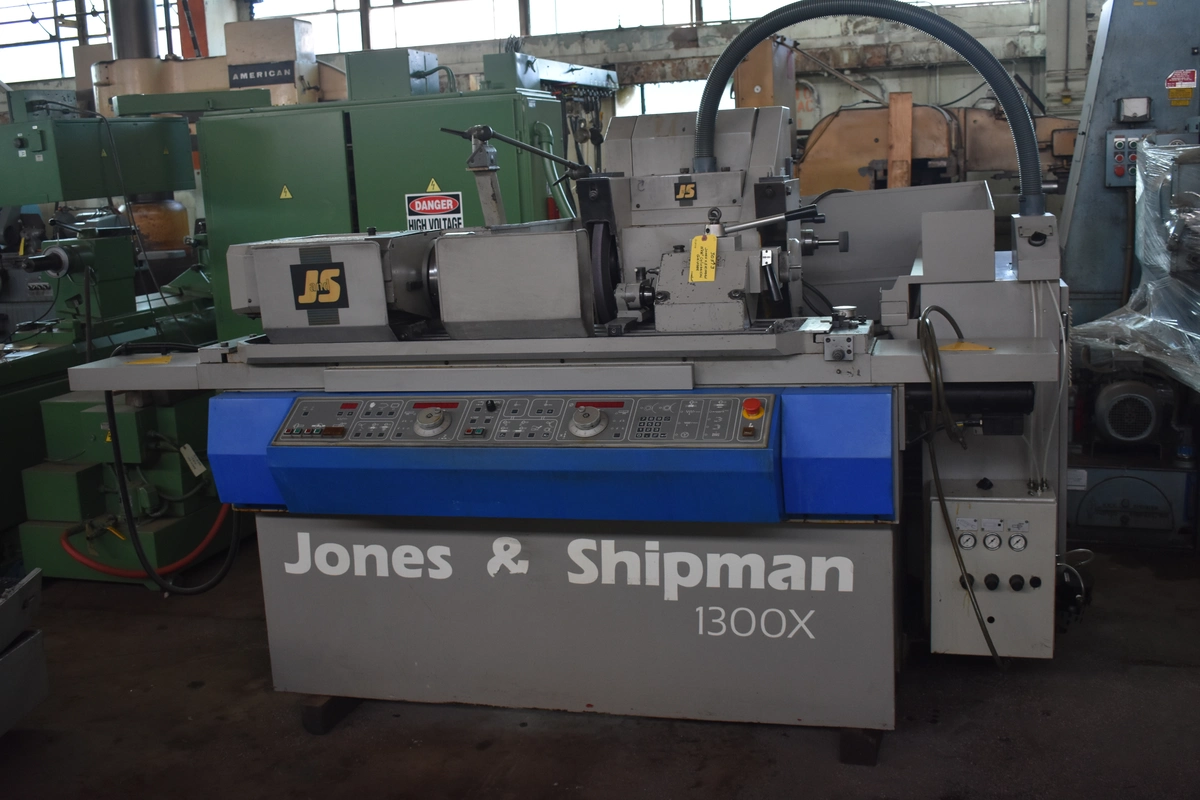

10" x 27" JONES & SHIPMAN "1300X" UNIVERSAL CYLINDRICAL GRINDER w/SWING-AROUND INTERNAL GRINDING SPINDLE & MICROPROCESSOR CONTROLS
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available
10" x 27" JONES & SHIPMAN DOUBLE-SWIVEL
UNIVERSAL CYLINDRICAL GRINDER
Serial No M20756, Model 1300X

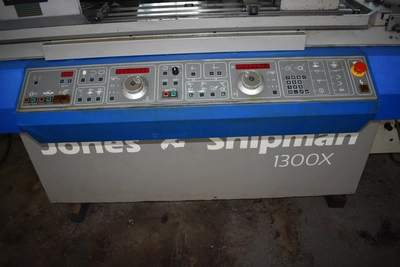

Microprocessor Operator Control w/Unique Touch Key Membrane Panel
Dual External Grinding Wheels (LH & RH)

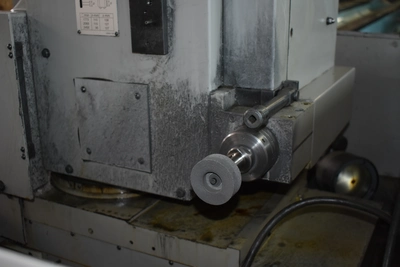

Internal Grinding Spindle (Swing Around)

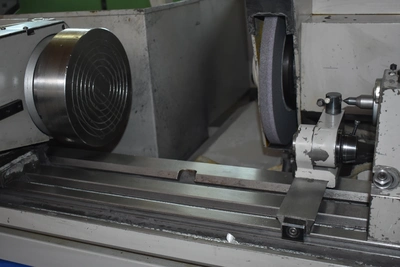

9" Electro-Magnetic Chuck - Procheck Gauging
Auto Lube System
Bedatec Coolant Filtration System
Tailstock w/Grinding Wheel Dresser
Swing Over Table, Maximum 10"
Grinding Diameter, Maximum 10"
Distance Between Centers, Nominal 27"
Weight Capacity Between Centers 220 LBS
External Grinding Wheel Diameter, LH Standard 14"
External Grinding Wheel Diameter, RH Standard 12"
External Grinding Wheel Width, LH Standard 2"
External Grinding Wheel Width, RH Standard 1"
External Grinding Wheel Holes, Diameter 5"
Wheelhead Total Infeed 9.6"
Internal Grinding Diameter, Range 0.75" to 1.5"
Internal Grinding Spindle Speed 16500 RPM
Table Swivel, Clockwise 16-DEGREES
Table Swivel, Counterclockwise 18-DEGREES
Workhead Swivel, Clockwise 15-DEGREES
Workhead Swivel, Counterclockwise 90-DEGREES
Grinding Wheel Speeds, Range 1775 to 2400 RPM
Table Longitudinal Feeds, Infinite 3 to 198.6 IPM
Grinding Wheelhead Spindle Motor 5.5 HP
Internal Grinding Motor 3 HP
Weight, Approximately 5300 LBS
F.O.B. OUR WAREHOUSE
