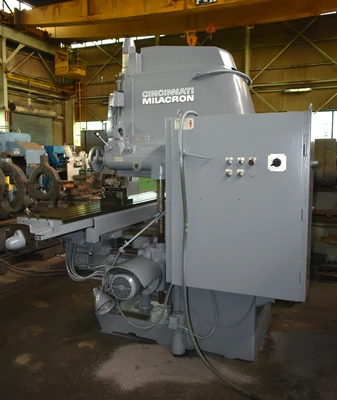

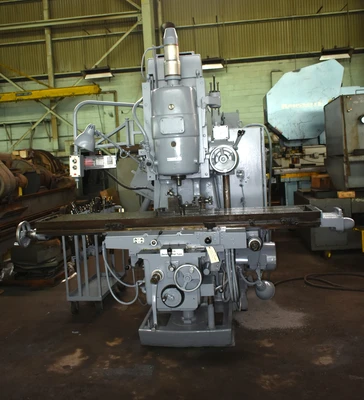

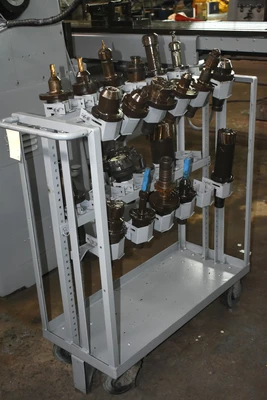

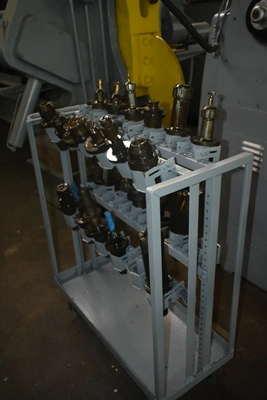

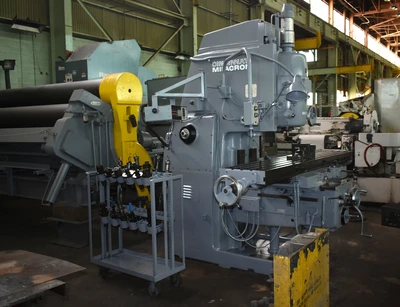

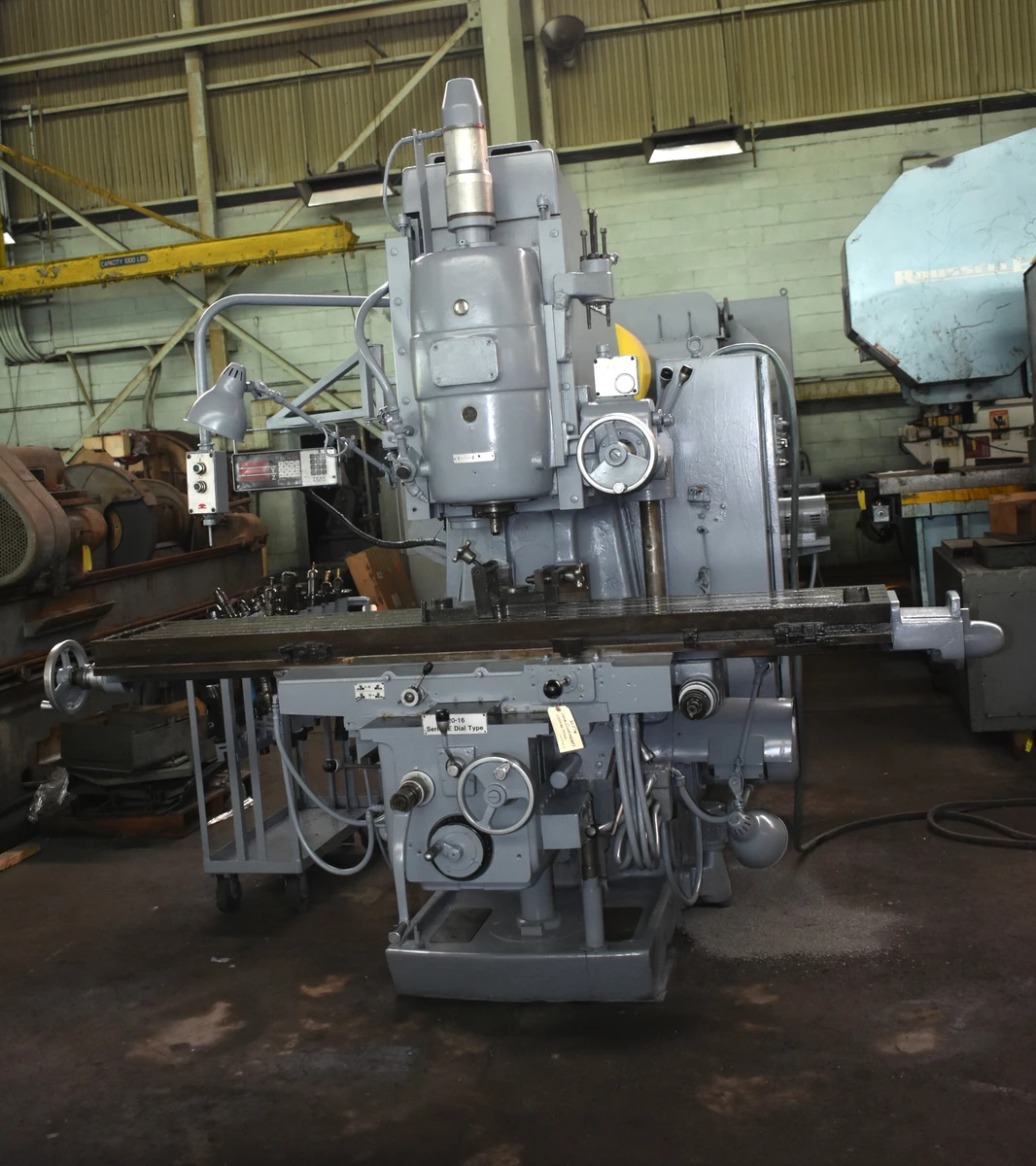

520-16 CINCINNATI-MILACRON "SERIES E" DIAL-TYPE VERTICAL MILL w/TRAK DIGITAL READOUTS - POWER DRAW BAR - RACK FULL OF TOOLING

Table Dimensions (Overall), W x L 16.25" x 87.75"

Table Working Surface, W x L 16.25" x 87.75"

Table Longitudinal Travel (X-Axis) 50"

Saddle Cross Travel (Y-Axis) 16"

Knee Vertical Travel (Z-Axis) 14"

Spindle-Head Vertical Travel (Z-Axis) 6"

Spindle-Nose to Table, Minimum 0"

Spindle-Nose to Table, Maximum 20"

Spindle-Center to Column 18"

Spindle Taper #50 NSTD

(24) Spindle Speeds, Range 16 to 1600 RPM

(32) Longitudinal and Cross Feeds 3/8 to 90 IPM

(32) Vertical Head Feeds, Range 3/16 to 45 IPM

(32) Vertical Knee Feeds, Range 3/16 to 45 IPM

Power Rapid Traverse, Long & Cross 150 IPM

Power Rapid Traverse, Vertical 75 IPM

Spindle Motor, Horsepower 20 HP

Feed Motor, Horsepower 5 HP

Weight, Approximately 12500 LBS

F.O.B. OUR WAREHOUSE
