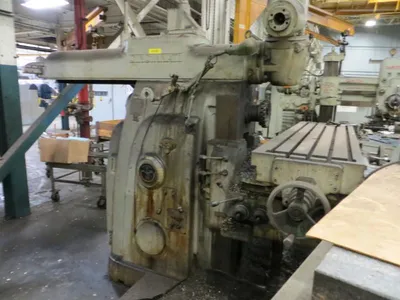

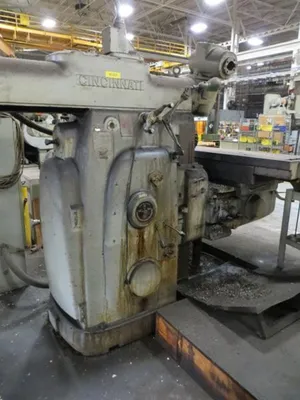

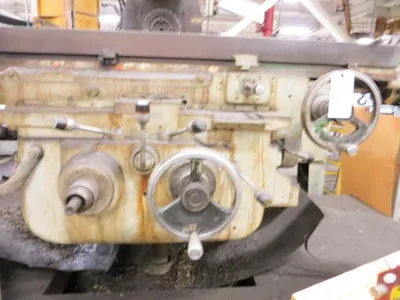

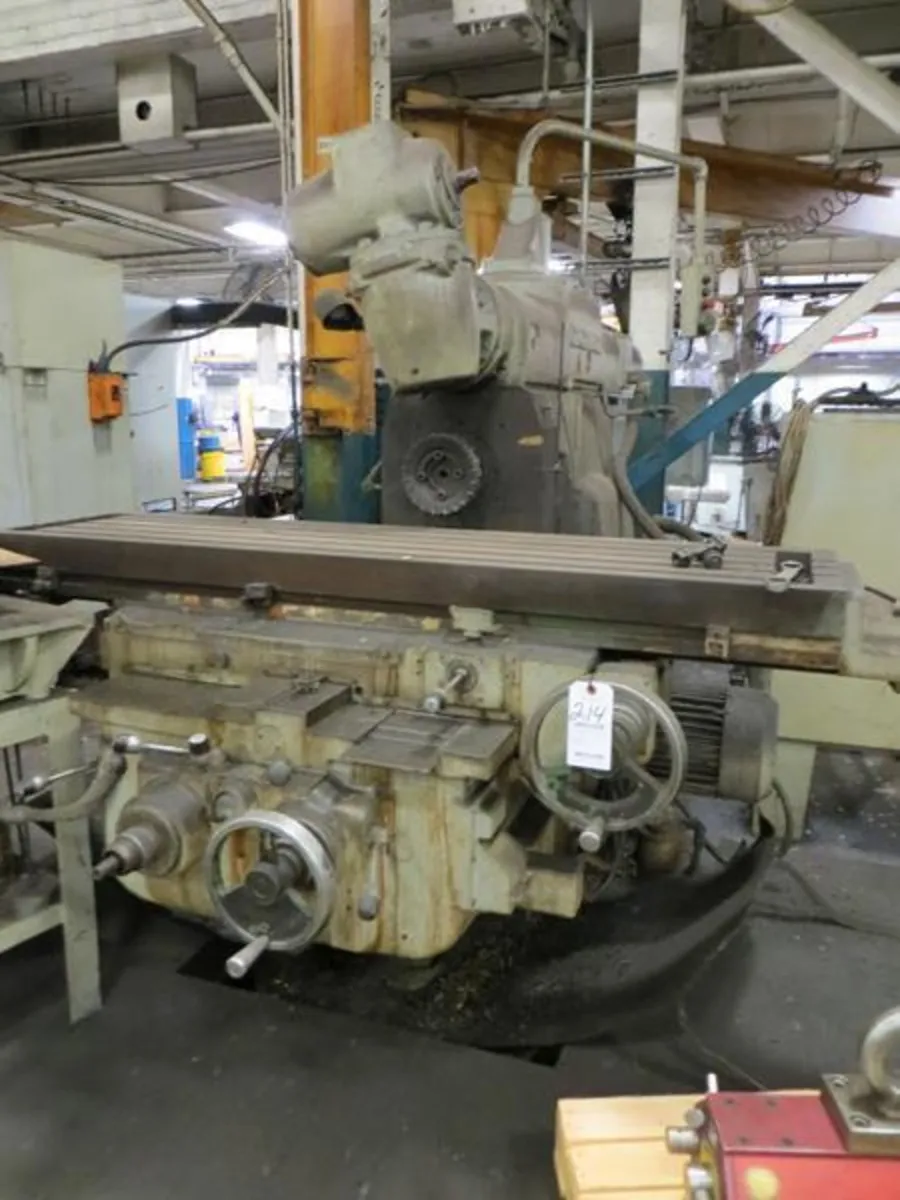

320-18 CINCINNATI-MILACRON "LA" HIGH-POWER DIAL-TYPE PLAIN HORIZONTAL MILL w/I.O.S. VERTICAL HEAD - FRONT & REAR CONTROLS

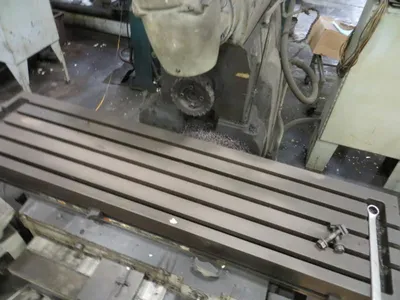

Table Dimensions (Overall), W x L 18" x 72"

Table Working Surface, W x L 18" x 72"

Table Longitudinal Travel (X-Axis) 34"

Saddle In-Out Cross Travel (Z-Axis) 12"

Knee Vertical Travel (Y-Axis) 20"

Spindle-Center to Table-Top, Minimum 0"

Spindle-Center to Table-Top, Maximum 20-13/16"

Spindle Taper #50 NSTD

(24) Spindle Speeds, Range 16 to 1600 RPM

Vertical Spindle Speeds, Range 147 to 1502 RPM

(32) Longitudinal and Cross Feeds 3/8 to 90 IPM

(32) Vertical Feeds, Range 3/32 to 22.5 IPM

Power Rapid Traverse, Long & Cross 150 IPM

Power Rapid Traverse, Vertical 37-1/2 IPM

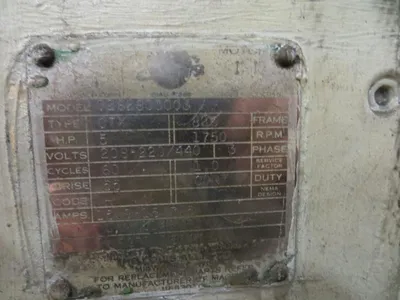

Spindle Motor, Horsepower 20 HP

Knee Motor, Horsepower 3 HP

Floor Space Required, W x D 116" x 118"

Weight, Approximately 14000 LBS

F.O.B. OUR WAREHOUSE
