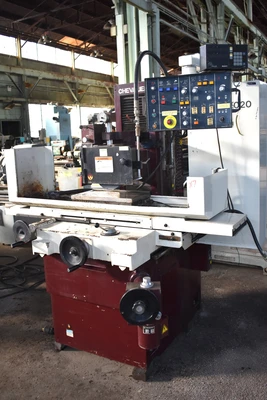

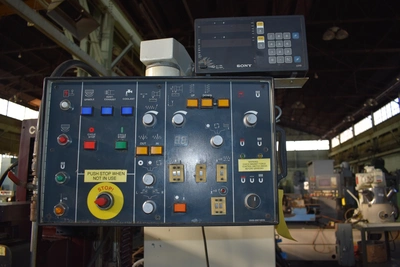

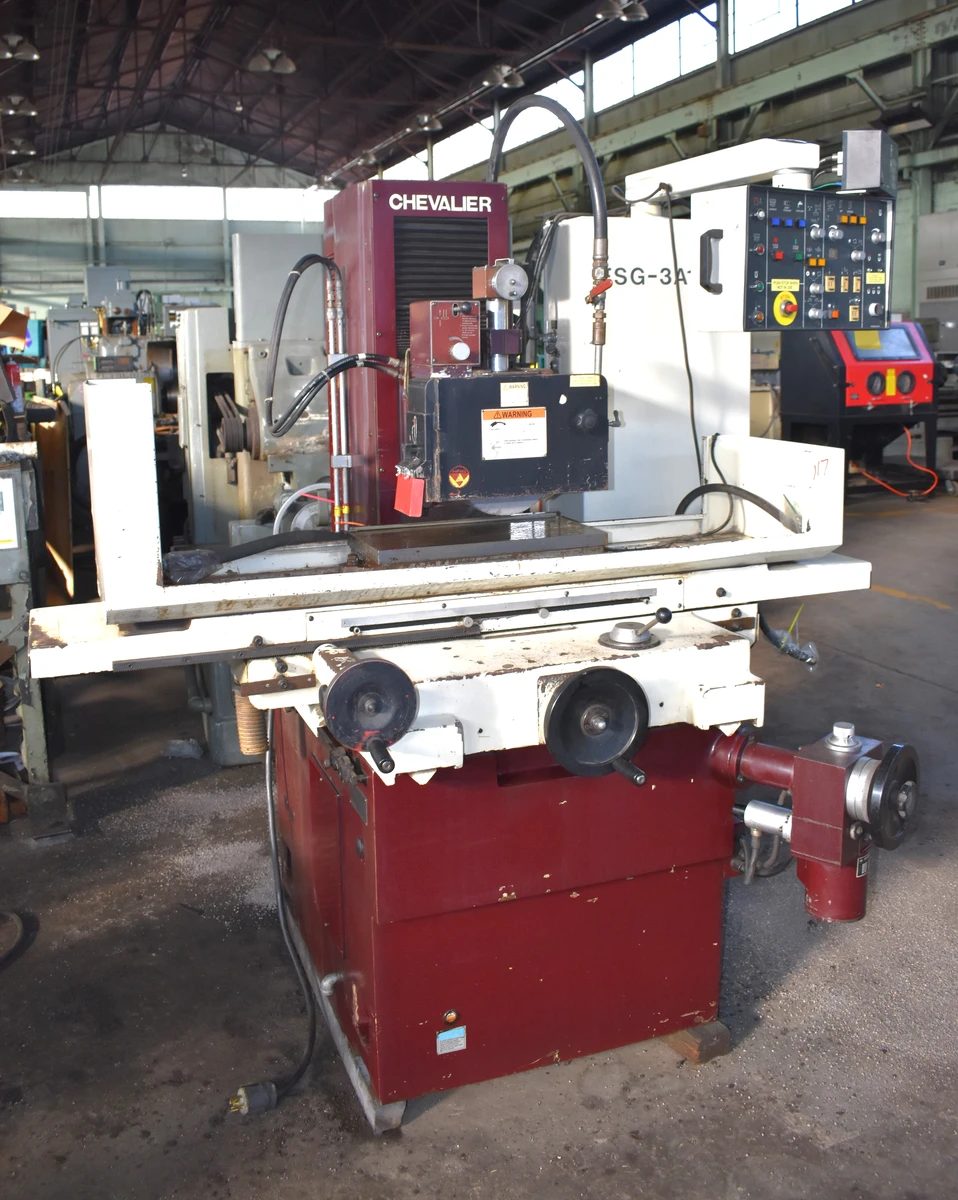

10" X 20" CHEVALIER "FSG-3A1020" 3-AXIS AUTOMATIC HORIZONTAL-SPINDLE SURFACE GRINDER wMICROPROCESSOR CONTROL - ELECTRO-MAGNETIC CHUCK - OVERHEAD WHEEL DRESSER

Table Working Surface, W x L 10" x 20"

Grinding Width Capacity, Maximum 10"

Grinding Length Capacity, Maximum 20"

Height Spindle Centerline To Table, Maximum 18"

Grinding Wheel Diameter, Standard 8"

Grinding Wheel Width, Standard .75"

Grinding Wheel Hole Diameter 1.25"

Table Longitudinal Travel Hydraulic 22.875"

Table Longitudinal Travel Manual 24.375"

Table Cross Travel, Automatic 11.44"

Table Cross Travel, Manual 11.75"

Table Longitudinal Feeds, Range 16 to 82 FPM

Table Cross In-Feeds, Range .02 to 0.4 IPR

Spindle Vertical Feeds, Automatic .0001 to .002 IPR

Power Rapid Cross Traverse 38 IPM

Power Rapid Vertical Traverse 13 IPM

Grinding Wheel Spindle Motor 2 HP

Floor Space Required, L x D 98" x 55"

Overall Height 68"

Weight, Approximately 3306 LBS

F.O.B. OUR WAREHOUSE
