20" JET "JDP-20VS-3" VARIABLE-SPEED FLOOR STANDING DRILL PRESS w/MANUAL DOWN FEED - 2/1 HP MOTOR

20" JET "JDP-20VS-3" VARIABLE-SPEED FLOOR STANDING DRILL PRESS w/MANUAL DOWN FEED - 2/1 HP MOTOR

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$1,950.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Single-Spindle Drills
Manufacturer:
JET
Model:
JDP-20VS-3
Stock #:
30527
Status:
For Sale

Description

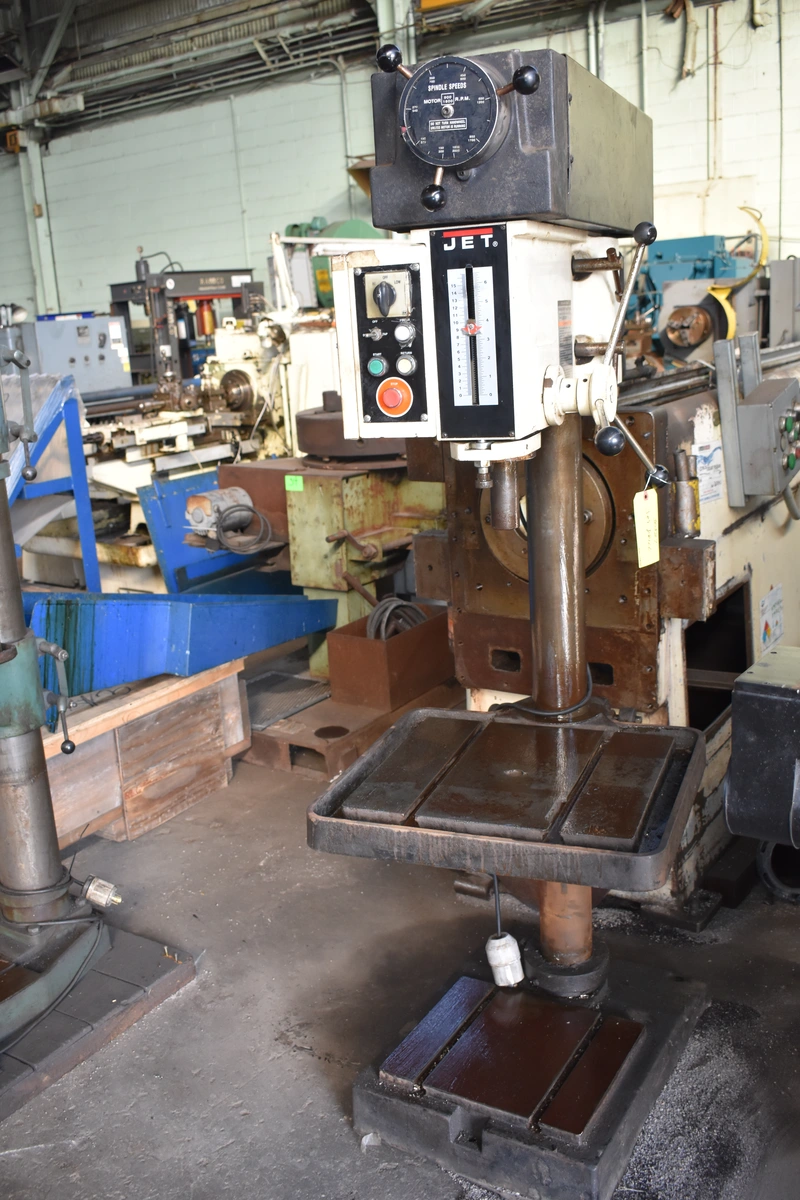

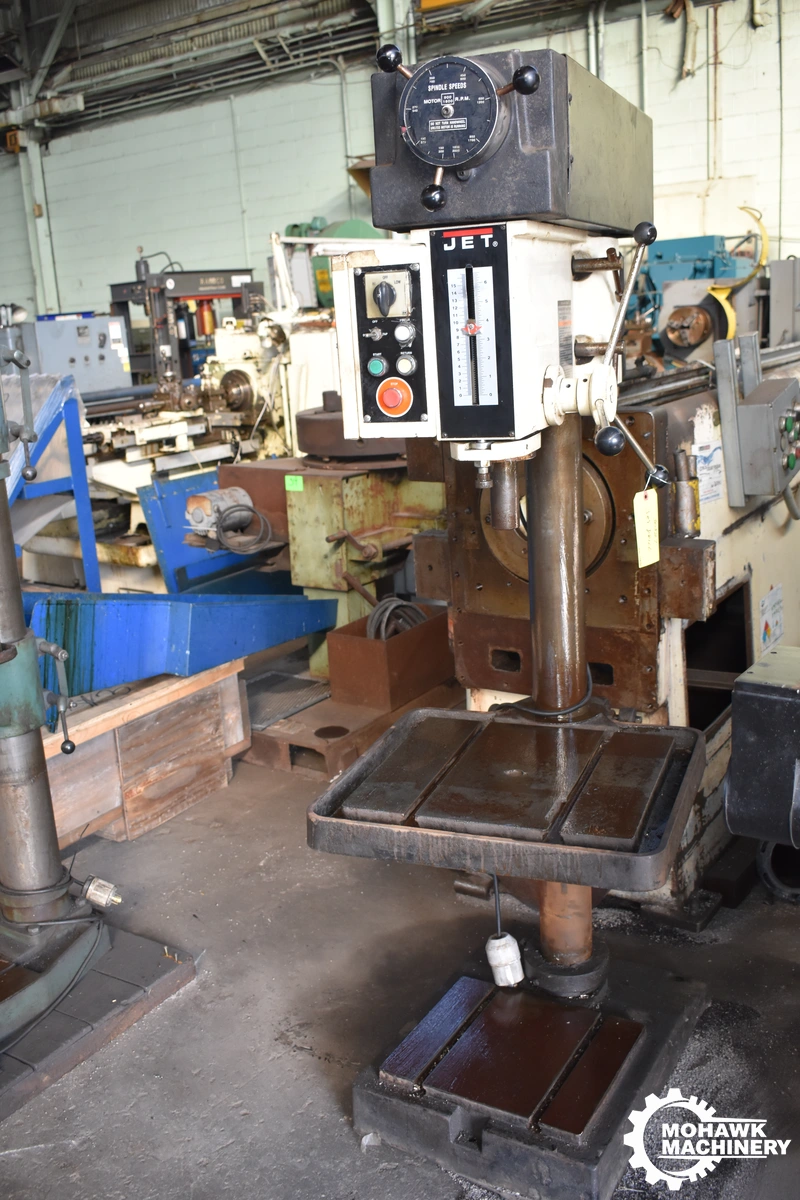

20" JET VARIABLE-SPEED FLOOR TYPE SINGLE-SPINDLE DRILL PRESS

Serial No 09021406, Model JDP-20VS-3,

Series "FLOOR-TYPE"

Variable Speed Head Design

Round-Column Design

Manual Down-Feed to Spindle

Manual Table Height Adjustment

Swing20"508 mm
Power21 hp15.7 kW
RPM0 RPM0 RPM
DimensionsBase Working Surface, W x L 19 x 27Base Working Surface, W x L 19 x 27
Weight780780

Swing Capacity, Maximum 20"

Spindle-Nose to Table, Maximum 30.14"

Spindle-Center to Column 10.44"

Spindle-Center to Base 44.5"

Swing to Center of Circle, Maximum 20"

Table Weight Capacity 154 LBS

Spindle Travel, Manual 6"

Table Travel 20"

Table Working Surface, W x L 18.75" x 22"

Base Working Surface, W x L 19" x 27"

Spindle Speeds Range, Variable 300 to 2000 RPM

Spindle Motor, Horsepower/RPM 2/1 HP

Electrical System 460/3/60

Overall Height 80

Weight, Approximately 780 LBS

NOTE: Replacement Price $5399.00

F.O.B. OUR WAREHOUSE
