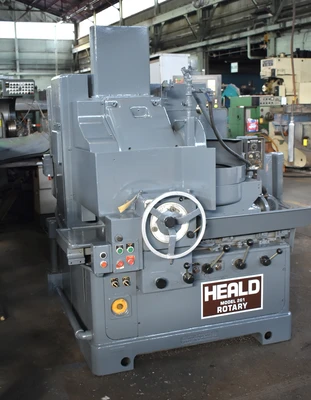

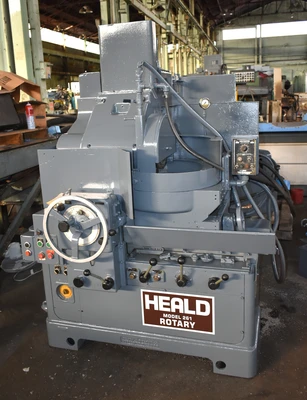

16" HEALD "261-16" HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER w/ELECTRO-MAGNETIC CHUCK

Magnetic Chuck, Diameter 16"

Swing With-in Coolant Guards 18-1/2"

Grinding Wheel, Diameter 14"

Grinding Wheel, Minimum Diameter 9"

Grinding Wheel, Width 1"

Grinding Wheel, Hole Diameter 5"

Chuck Load, Maximum 600 LBS

Table Travel 12"

Table Travel, 17 Deg. Chuck Swivel 9-5/8"

Grinding Stroke, Maximum 8"

Grinding Wheel Speed 1640 R|PM

Chuck Speeds, Range 50 to 225 RPM

Table Speed, Auto Recip, Variable 12 FPM

Table Speeds, Runout 35 FPM

Power Feed Adjustment, Range .0001" to .0005"

Maximum Convex Table Angle, Degrees 17-DEGREES

Maximum Concave Table Angle, Degrees 10-DEGREES

Spindle Motor, Horsepower 15 HP

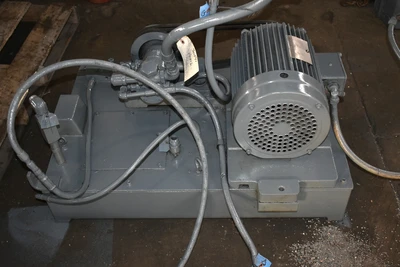

Hydraulic Motor, Horsepower 7.5 HP

Electrical System 230-460/3/60

Overall Dimensions, L x W 6'2" x 6'11"

Weight, Approximately 9350 LBS.

F.O.B. OUR WAREHOUSE
