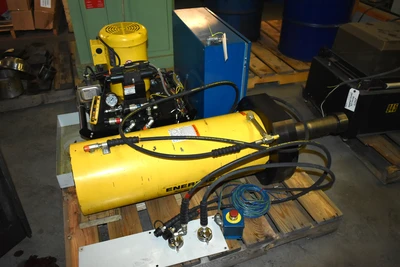

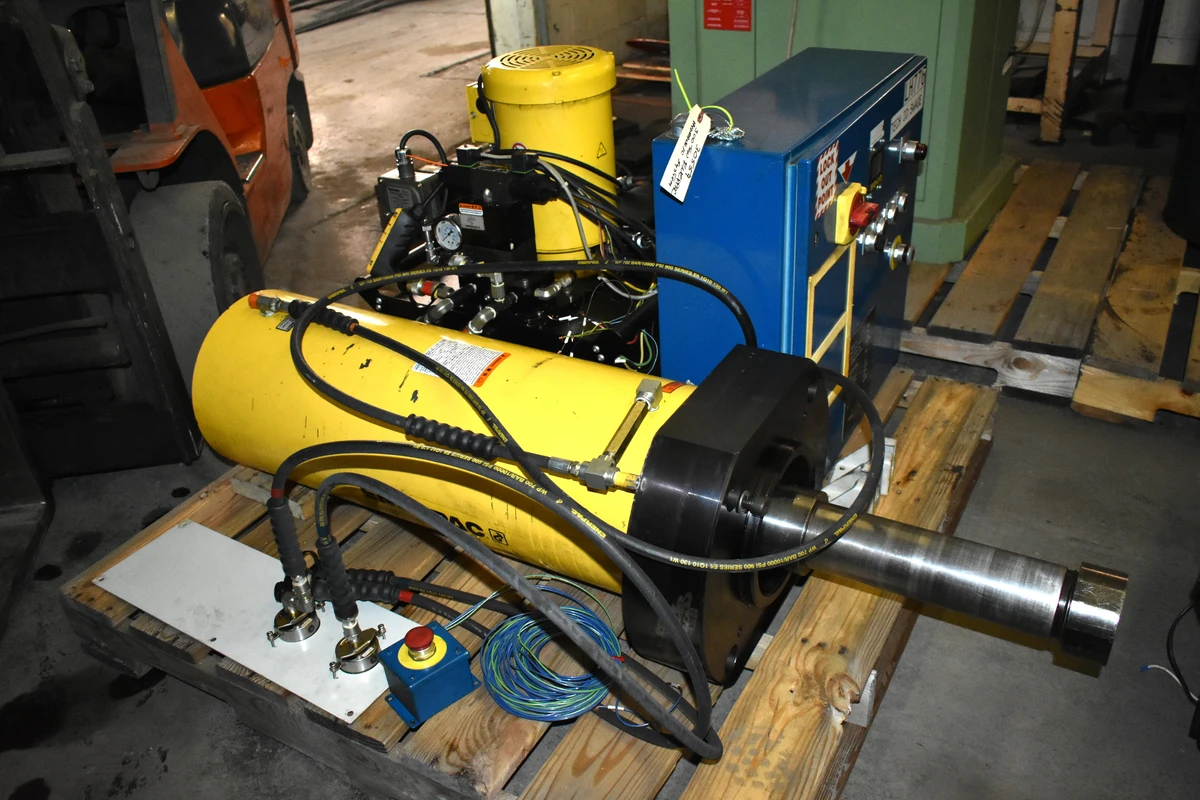

300 TON ENERPAC "ZE6440SJ-H & RR30024" DOUBLE-ACTING HYDRAULIC SYSTEM w/ZE6440SJ-H ENERPAC PUMP - RR30024 ENERPAC CYLINDER - CONTROLS & GAUGING

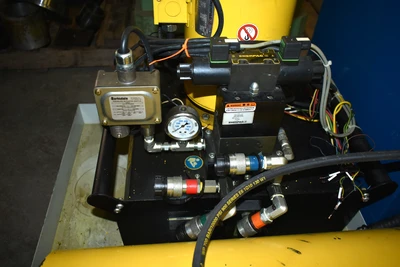

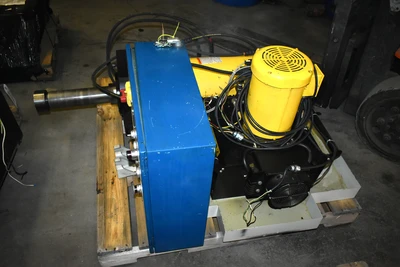

7.5 HP Enerpac Hydraulic Pump (Model ZE6440SJ-H, S/N A12907001C)

w/3-Position 4-Way Tandem Center Control Valve

300 Ton Enerpac Double Acting Hydraulic Cylinder (Model RR30024)

CATALOG SPECIFACATIONS:

Enerpac Double-Acting Hydraulic Pump (Model ZE6440SJ-)

Hydraulic Pump Horsepower 7.5 HP

Hydraulic Pump PSI Maximum 10000 PSI

Hydraulic Pump Flow Rate, Maximum 200 CU IN/MIN

Hydraulic Pump Reservoir Capacity 2379 CU IN

Hydraulic Pump Control Valve Pressure Release Minimum 1000 PSI

Hydraulic Pump Dimensions, L x W 27.9" x 22.7"

Hydraulic Pump Height 28.1"

Hydraulic Pump Weight Approximately 300 LBS

Enerpac Double-Acting Hydraulic Cylinder (Model RR30020)

Hydraulic Cylinder Nominal Capacity 300 TON

Hydraulic Cylinder Maximum Push Capacity 354.6 TON

Hydraulic Cylinder Stroke Length 24"

Hydraulic Cylinder Maximum Pressure 10000 PSI

Hydraulic Cylinder Effective Push Area 70.93 SQ. IN.

Hydraulic Cylinder Outside Diameter 12.25"

Hydraulic Cylinder Plunger Diameter 6.5"

Hydraulic Cylinder Bore Diameter 9.5"

Hydraulic Cylinder Weight Approximately 1034 LBS

Electrical System 460/3/60

NOTE: This Hydraulic System Was Being Used In A Test Facility And Appears To

Have Had Very Little Usage. The Enerpac Pump Replaces For $43,445.19 And

The Enerpac Cylinder Replaces For $62,564.43. These Prices Do Not Include

The Controls And Gauging That Comes With This System. Replacement

Price Is Over $106,000.00.

F.O.B. OUR WAREHOUSE
