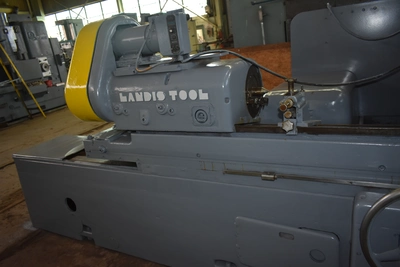

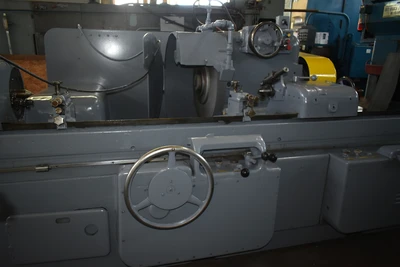

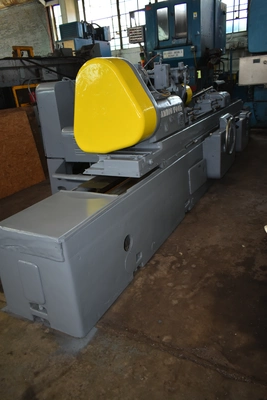

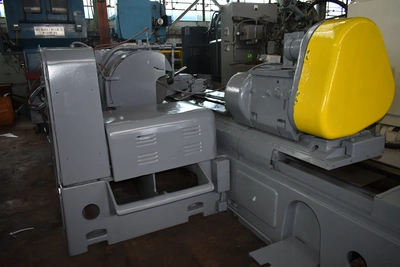

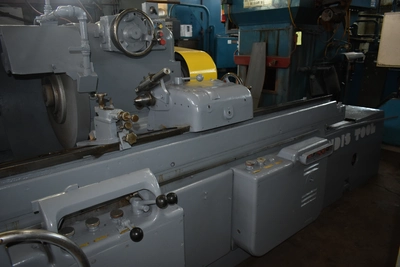

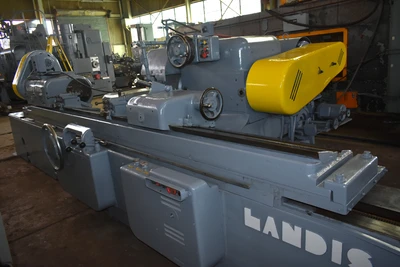

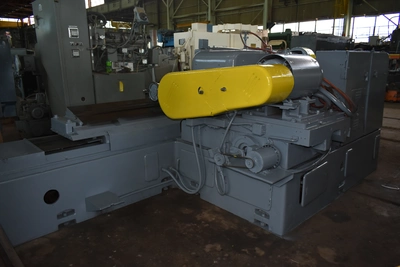

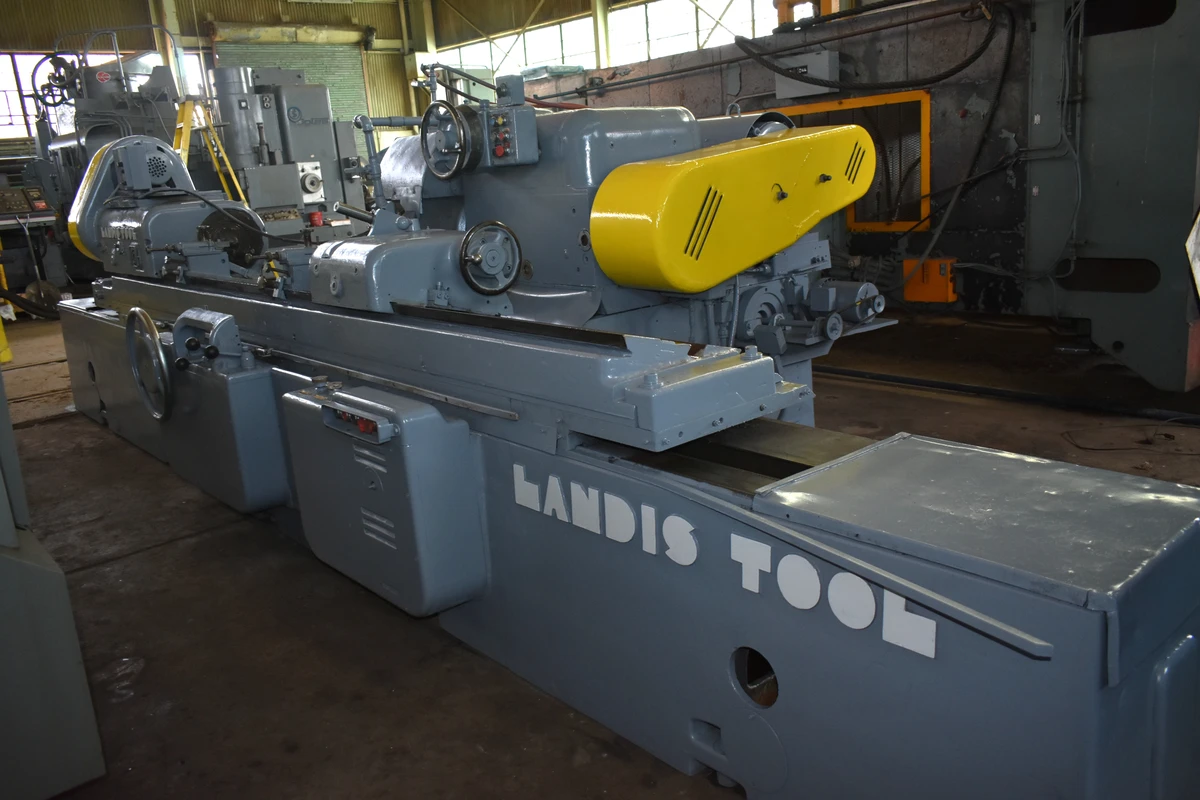

14" x 96" LANDIS "F" HEAVY-DUTY PLAIN HYDRAULIC CYLINDRICAL GRINDER w/WHEEL DRESSER & FOLLOW RESTS

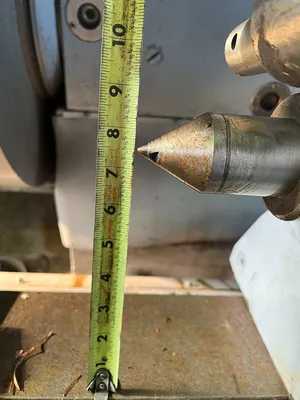

Swing Over Table, Maximum 14.75"

Grinding Diameter, Maximum 14"

Distance Between Centers, Nominal 96"

Weight Capacity Between Centers, Maximum 6500 LBS

Grinding Wheel Diameter, Standard 30"

Grinding Wheel Width, Standard 3"

Grinding Wheel Hole Diameter 12"

Table Swivel Graduated 11-DEGREES

Workhead and Tailstock Center Tapers #20 JARNO

Workhead Spindle Speeds, Range 25 to 100 RPM

Table Longitudinal Feeds, Infinite 3 to 90 IPM

Grinding Wheel Motor, Horsepower 30 HP/1760 RPM

Electrical System 230-460/3/60

Floor Space Required, L x D 28' x 8'10"

Weight, Approximately 34000 LBS

NOTE: These Specifications Are As Taken From The Previous Owners Records

And A Close Physical Inspection Of The Machine However We Could Not

Find The Serial Number On The Machine.

F.O.B. OUR WAREHOUSE
