| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 20 | 20 |
| Taper | #40 | #40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Dimensions | 14 x 36 in | 14 x 36 in |
| Weight | 8000 lbs | 8000 lbs |

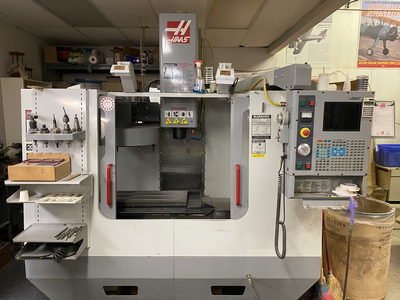

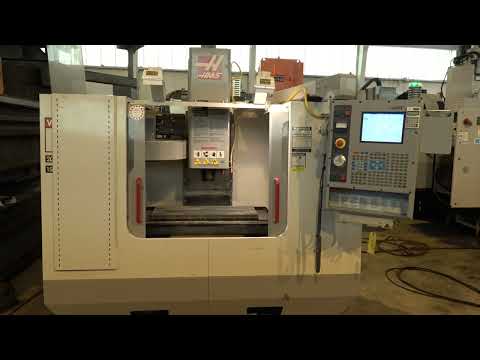

VF2D HAAS "HIGH-SPEED" CNC VERTICAL MACHINING CENTER

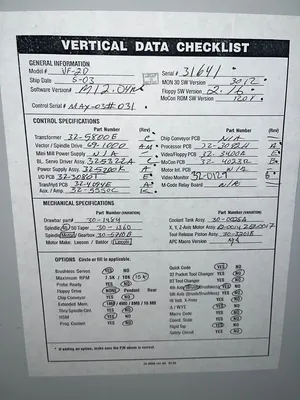

New 2003, Serial No 31641, Model VF2D
EQUIPPED WITH:

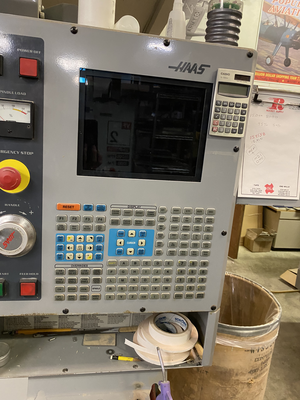

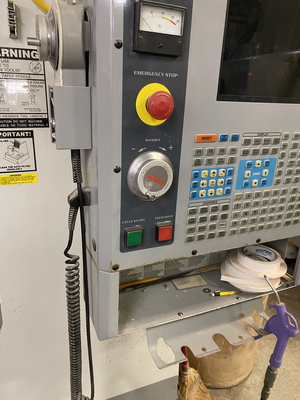

Haas 3-Axis CNC Control (Pendant Control)
20-Position Automatic Tool Changer
15000 RPM Spindle - 1000 IPM
20 HP Vector Dual Drive
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 14" x 36"
Table Load Capacity 1500 LBS
Table Longitudinal Travel (X-Axis) 30"
Saddle Cross Travel (Y-Axis) 16"
Quill Vertical Travel (Z-Axis) 20"
Spindle Nose to Table, Maximum 24"
Spindle Nose to Table, Minimum 4"
Spindle Taper #40
Spindle Speeds, Range 0 to 15000 RPM
Cutting Feedrate, Maximum 1000 IPM
Spindle Motor, Horsepower Rating......... 20 HP
Weight, Approximately.................... 8000 LBS
F.O.B. OUR WAREHOUSE
