3" HUTH "2800" HORIZONATAL HYDRAULIC SHAPE PIPE & TUBE BENDER - DEPTH OF BEND INDICATOR
Have one to sell?
$5,950.00 USD
ConditionUsed
1 available

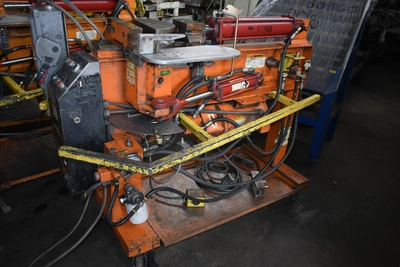

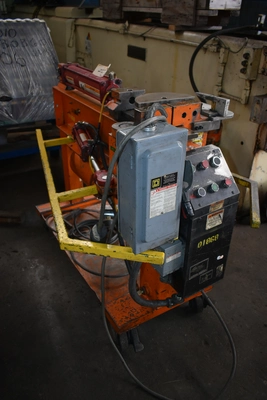

3" HUTH HORIZONTAL HYDRAULIC SHAPE PIPE & TUBE BENDER

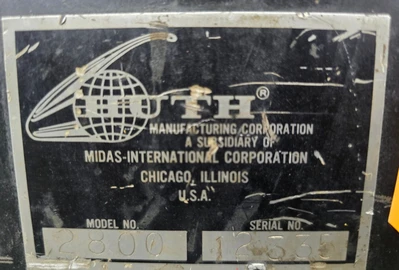

Serial No 12335, Model 2800,
Manual Depth Of Bend Indicator
Some Dies
Tube Diameter Capacity Mild Steel @ .083" Wall 3"
Tube Diameter Capacity Aluminum @ .083" Wall 3"
Square Capacity Mild Steel @ 14-Gauge Wall 2.5" OD
Pipe Diameter Capacity Schedule 40 1.5"
Bending Force Inch-Pounds 58000 LBS
Main Motor, Horsepower 5 HP/1725 RPM

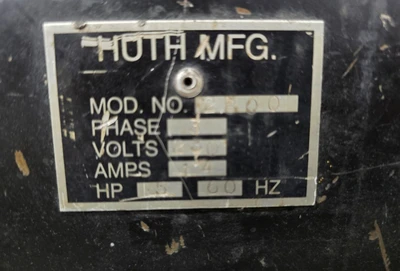

Electrical System 440-220/3/60
Floor Space Required, L x D 40" x 68"
Weight, Approximately 1000 LBS
F.O.B. OUR WAREHOUSE
