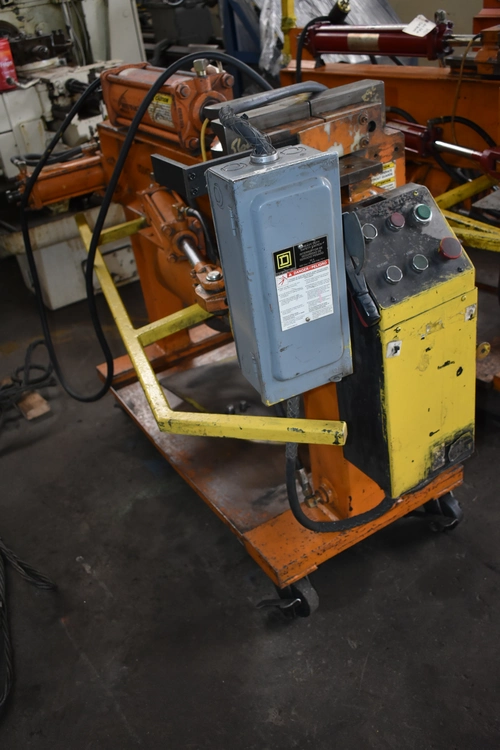

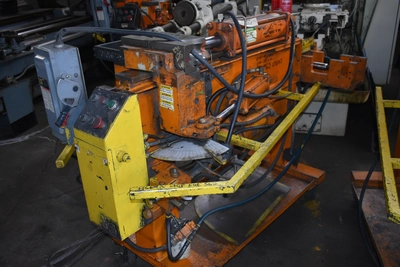

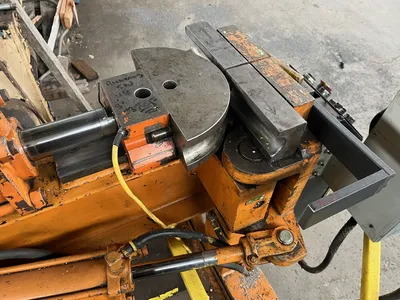

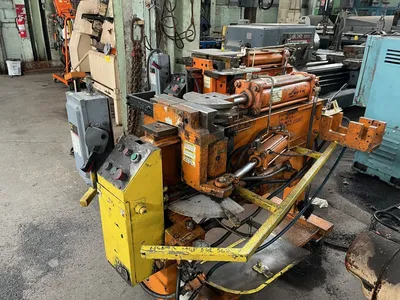

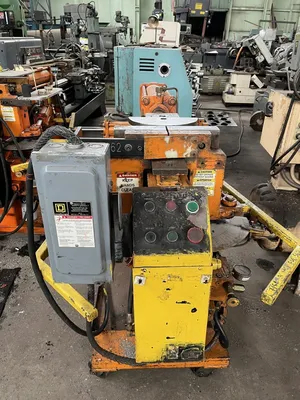

3" HUTH "2801" HEAVY-DUTY HORIZONTAL HYDRAULIC BAR SHAPE PIPE & TUBE BENDER - SWAGER EXPANDER - DEGREE OF BEND SELECTOR

3" HUTH HORIZONTAL HYDRAULIC BAR SHAPE PIPE & TUBE BENDER

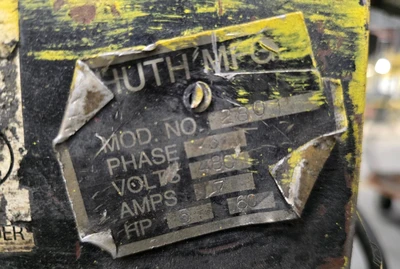

Serial No N/A, Model 2801,

EQUIPPED WITH:
Heavy-Duty Construction

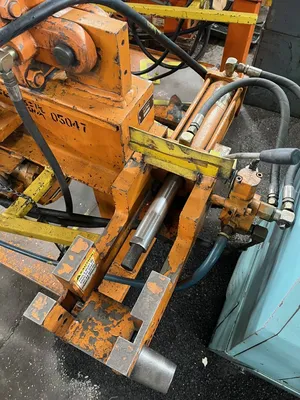

Swager Expander
Degree Of Bend Selector
Some Dies

CATALOG SPECIFICATIONS:
Tube Diameter Capacity Mild Steel @ 13-Gauge Wall 3"
Tube Diameter Capacity Stainless Steel @ 14-Gauge Wall 3"
Square Capacity Mild Steel @ 14-Gauge Wall 2.5" OD
Pipe Diameter Capacity Schedule 40 1.5"
Solid Bar Diameter Capacity 1"
Swager End Capacity, Range 1" to 3"
Expander End Capacity, Range 1 to 5.5"
Bending Force Inch-Pounds 58000 LBS
Main Motor, Horsepower 5 HP/1725 RPM
Electrical System 440-220/3/60
Floor Space Required, L x D 40" x 68"
Weight, Approximately 1200 LBS
F.O.B. OUR WAREHOUSE
