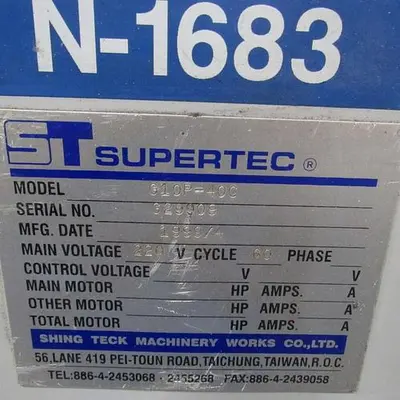

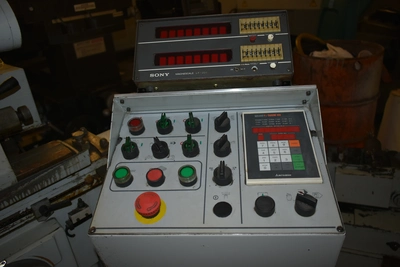

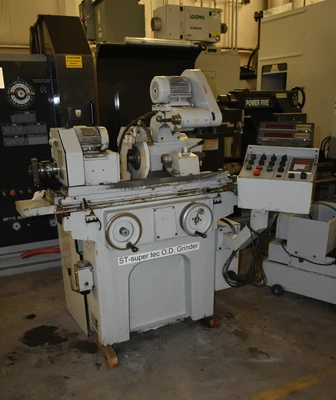

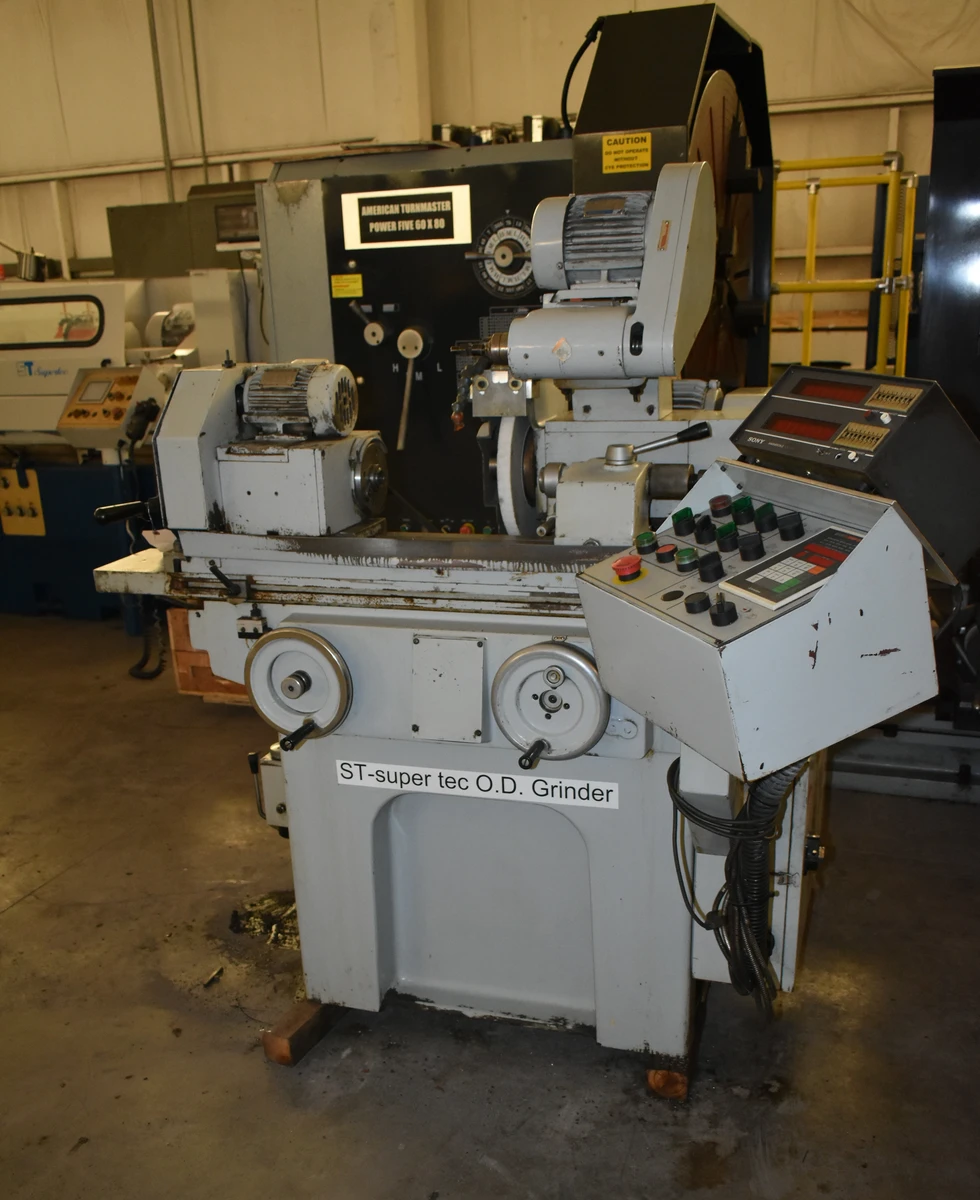

8" x 16" SUPERTEC "G10-40C" UNIVERSAL CYLINDRICAL GRINDER w/MITSUBISHI PLC CONTROL - INTERNAL GRINDING SPINDLE

Swing Over Table, Maximum 8"

Grinding Diameter, Maximum 8"

Distance Between Centers, Maximum 16"

Weight Capacity Between Centers 110 LBS

Internal Grinding Spindle Speed 14000 RPM

Internal Spindle Grinding Bore, Maximum 3/5" to 2-3/4"

Internal Spindle Grinding Length, Maximum 2-3/4:

Internal Spindle Chucking Length, Maximum 10-3/4"

Grinding Wheel, Standard Diameter .......... 12"

Grinding Wheel Width, Range 1" to 2"

Grinding Wheel, Hole Diameter 3"

Grinding Wheel Speeds 1960 RPM

(4) Workhead Spindle Speeds, Range 150 to 480 RPM

Wheelhead Automatic Incremental Feed .0001 to .0004"

Table Swivel Angle Range +/- 8 DEGREES

Workhead Swivel Angle, Range +/- 45-DEGREES

Workhead & Tailstock Spindle Taper 3 MT

Wheelhead Motor, Horsepower 2 HP

Workhead Motor, Horsepower 1/4 HP

Table Traverse Motor, Horsepower 1/4 HP

Internal Grinding Motor, Horsepower 1/2 HP

Overall Dimensions, L x W 58" x 41"

Overall Height 52"

Weight, Approximately 2200 LBS

F.O.B. OUR WAREHOUSE
