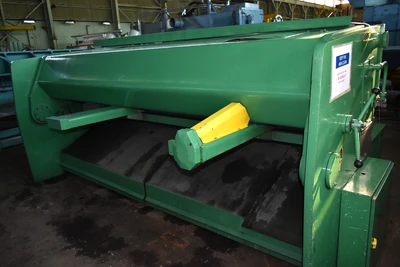

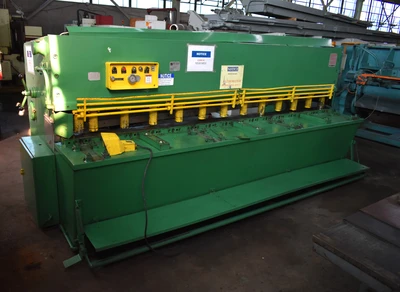

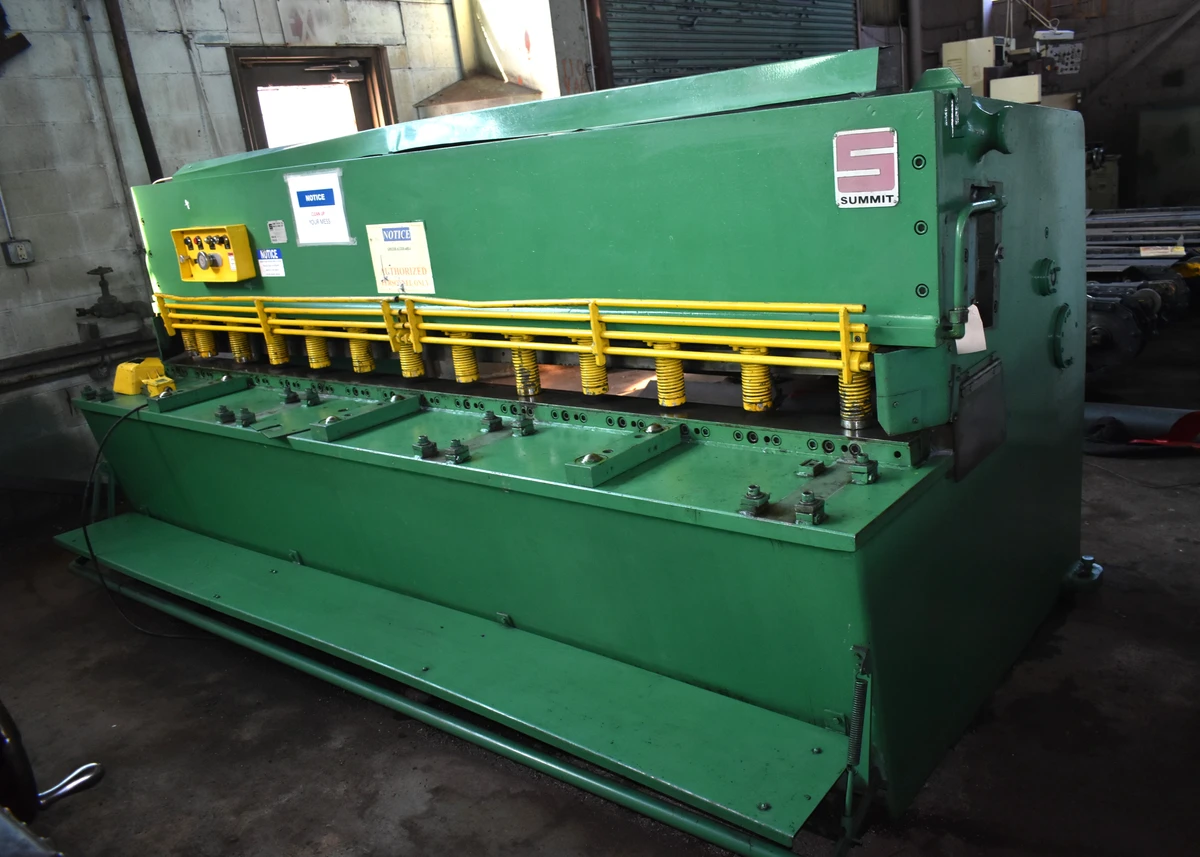

10' x 1/4" SUMMIT "10 x 1/4" DEEP-GAP HYDRAULIC POWER SQUARING SHEAR w/12” THROAT - SWING-UP FRONT OPERATED POWER BACK GAUGE - SQUARING ARM - (3) FRONT SUPPORTS
Have one to sell?
$14,500.00 USD
ConditionUsed
1 available
10' X 1/4' SUMMIT HEAVY-DUTY DEEP-GAP
HYDRAULIC POWER SQUARING SHEAR

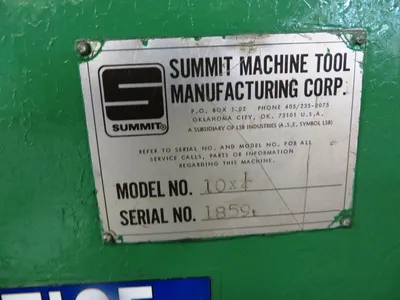

Serial No 1859, Model 10 x 1/4
Front Operated Power Back Gauge (Swing-Up)
(1) Squaring Arm - (3) Front Supports
Adjustable Blade Gap
12" Deep Throat
Foot Pedal Control
Shearing Capacity, Nominal 10' x 1/4"
Cutting Length, Maximum 122"
Length Between Housings 125"
Throat Depth 12"
Distance Under Hold-Down .590"
Hold-Down Diameter 2-3/4"
Backstop Adjustment 31-1/2"
Blade Stroke Speed, Range 2 to 3-3/4 IPS
Fast Return Speed 5 to 6 IPS
Motor Horsepower 15 HP
Electrical System 230-460/3/60
Overall Dimensions, L x D 144" x 72"
Overall Height 61"
Weight Approximately 15000 LBS
F.O.B OUR WAREHOUSE
