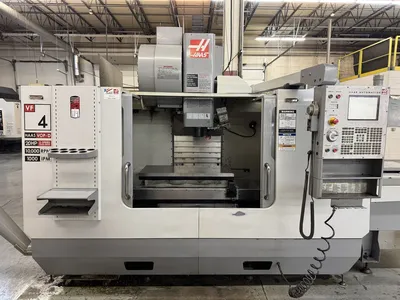

VF-4BAPC HAAS CNC "HIGH-SPEED" VERTICAL MACHINING CENTER w/AUTOMATIC PALLET CHANGER w/(2) 50" x 18" WORK TABLES - 24-POSITION SIDE MOUNT AUTOMATIC TOOL CHANGER -

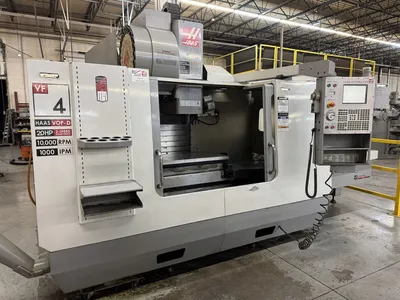

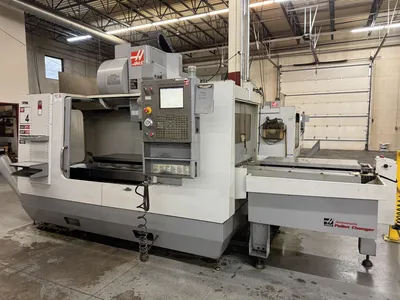

#VF-4BAPC HAAS CNC VERTICAL MACHINING CENTER w/AUTOMATIC
PALLET CHANGER

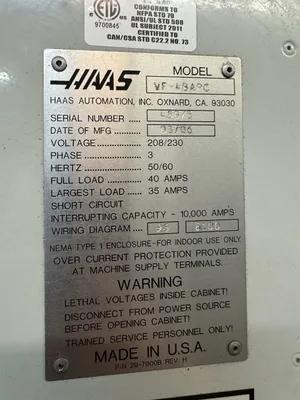

New 2006, Serial No 48075, Model VF-4BAPC

EQUIPPED WITH:
Haas CNC Control (4th Axis Ready)

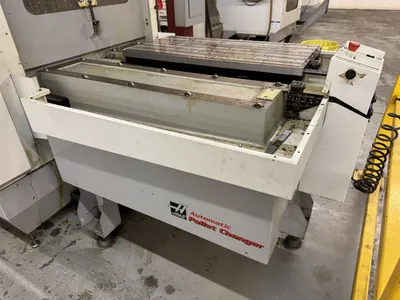

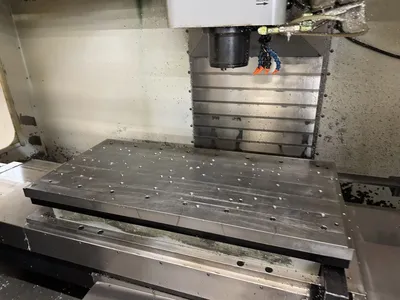

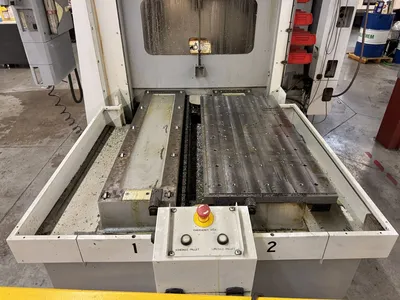

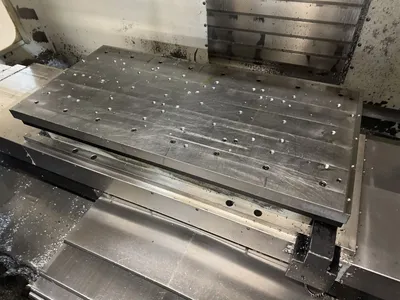

Haas Automatic Pallet Changer w/(2) 50" x 18" Work Tables

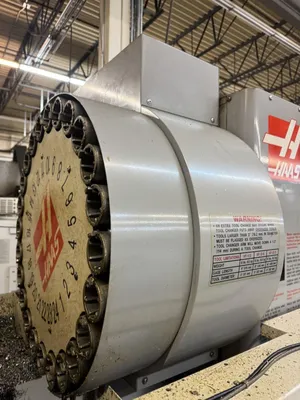

24-Position Side-Mount Automatic Tool Changer
Haas VOP D Option Package Consists Of: Visual Programming System (VPS),

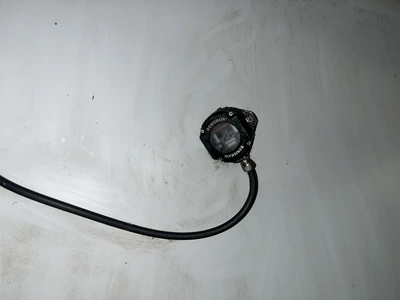

Rigid Tapping, High Speed Machining, Probing, Chip Conveyor
20 HP 2-Speed Gear Drive

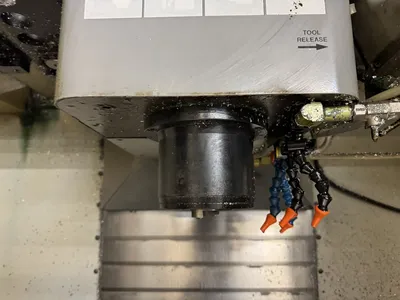

Programmable Coolant Nozzle

CATALOG SPECIFICATIONS:
Table Load Capacity 1000 LBS EACH
Table Longitudinal Travel (X-Axis) 50"
Saddle Cross Travel (Y-Axis) 20"
Quill Vertical Travel (Z-Axis) 25"
Spindle Nose to Table, Maximum 26.4"
Spindle Nose to Table, Minimum 1.4"
Spindle Taper #BT 40
Spindle Speeds, Range 0 to 10000 RPM
Cutting Feedrate, Maximum 1000 IPM
Rapid Traverse Rates, X, Y, & Z-Axis' 1000 IPM
Tool Diameter, Maximum 3.5"
Tool Weight, Maximum 12 LBS
Spindle Motor, Horsepower Rating 20 HP AC
Overall Dimenstion, L x W 9'10" x 10'
Overall Height 9'2"
Weight, Approximately 15730 LBS
F.O.B. OUR WAREHOUSE
