| Rect-Cap (H) | 22" | 558.8 mm |
| Rect-Cap (W) | 20.5" | 520.7 mm |
| Rounds-Cap | 20.5" | 520.7 mm |
| Square-Cap | 20.5" | 520.7 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 2.13" | 54.102 mm |
| Blade Thickness | 0.063" | 1.6002 mm |
| Blade Length | 238" | 6,045.2 mm |
| Dimensions | 95 x 105 x 56 | 95 x 105 x 56 |
| Weight | 8000 | 8000 |

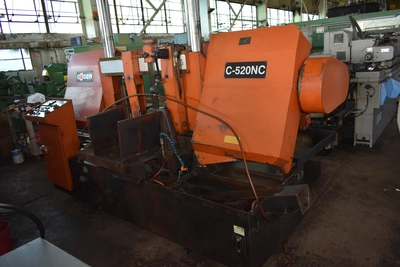

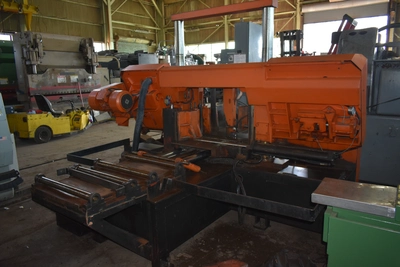

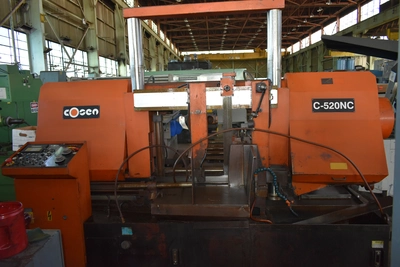

20.5" x 22" COSEN PROGRAMMABLE DUAL-COLUMN
AUTOMATIC HORIZONTAL BAND SAW
New 2006, Serial No C940321, Model C-520NC
EQUIPPED WITH:

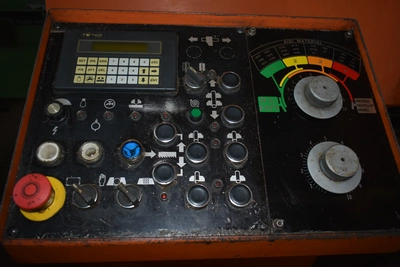

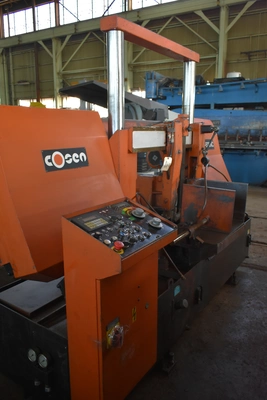

Cosen SMC20 Programmable Controller

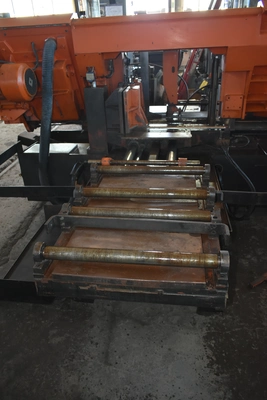

AUTOMATIC-Driven Stock-Feed Table
Hydraulic Full Stroke Vises
Hydraulic Band Saw Up-Feed and Down-Feed
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Flat Stock Capacity 20.5" x 22"
Square Stock Capacity 20.5" x 20.5"
Round Stock Capacity 20.5"
Round Stock Capacity, 45-Degrees 11.5"
Bundle Capacity, W x H 18.5" x 10"
Band Length 238"
Band Width 2.13"
Band Thicknesss 0.063"
Feed Length Range, Per Stroke 0" to 23.6"
Feed Length Range, Maximum 650"
Band Speeds, Variable 66 to 328 FPM
Blade Motor, Horsepower/RPM 7.5 HP
Hydraulic Motor, Horsepower 2 HP
Floor Space Required, L x W 95" x 105"
Overall Height 56"
Weight, Approximately 8000 LBS
F.O.B. OUR WAREHOUSE
This equipment has been sold. Similar equipment available now is shown below.
