10' x 10 GA WYSONG "1010" CNC MECHANICAL POWER SQUARING SHEAR w/WYSONG “PC100” CNC CONTROL - 72” CNC POWER FRONT GAUGE - 72” CNC SQUARING ARM - 36” CNC BACK GAUGE
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available

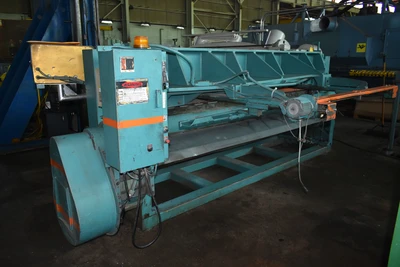

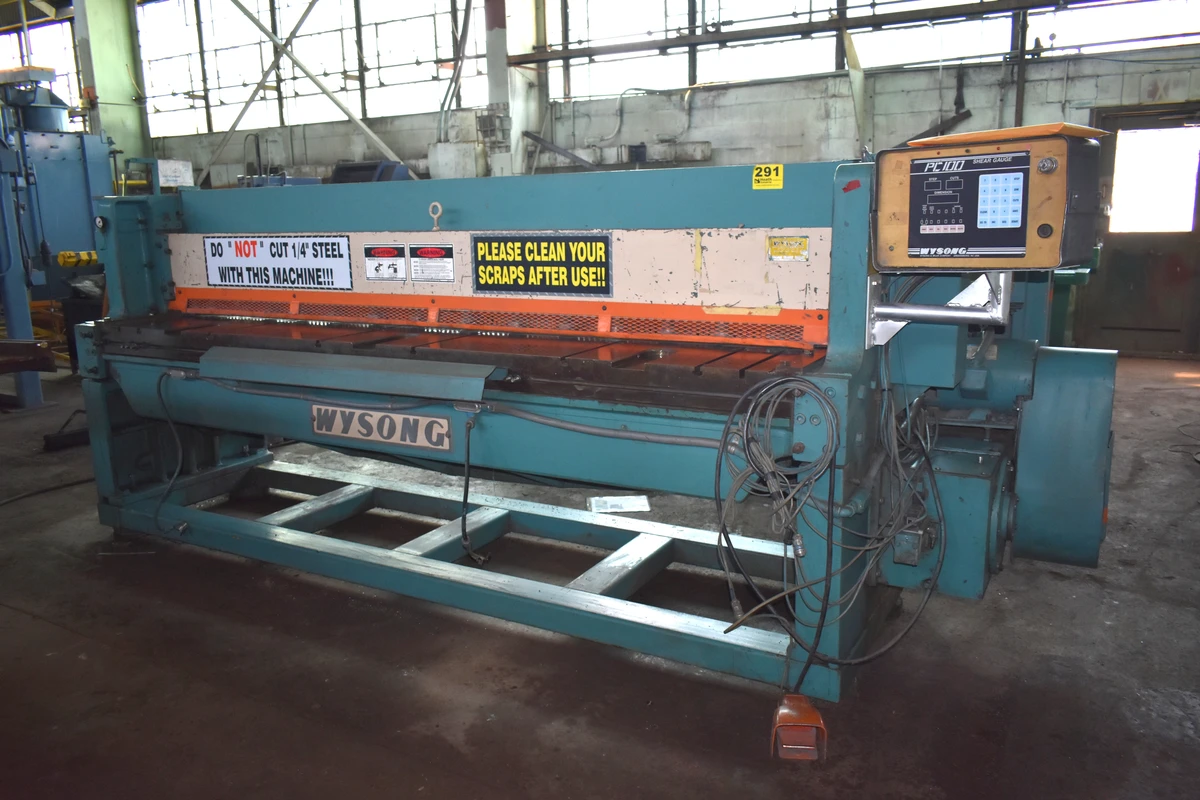

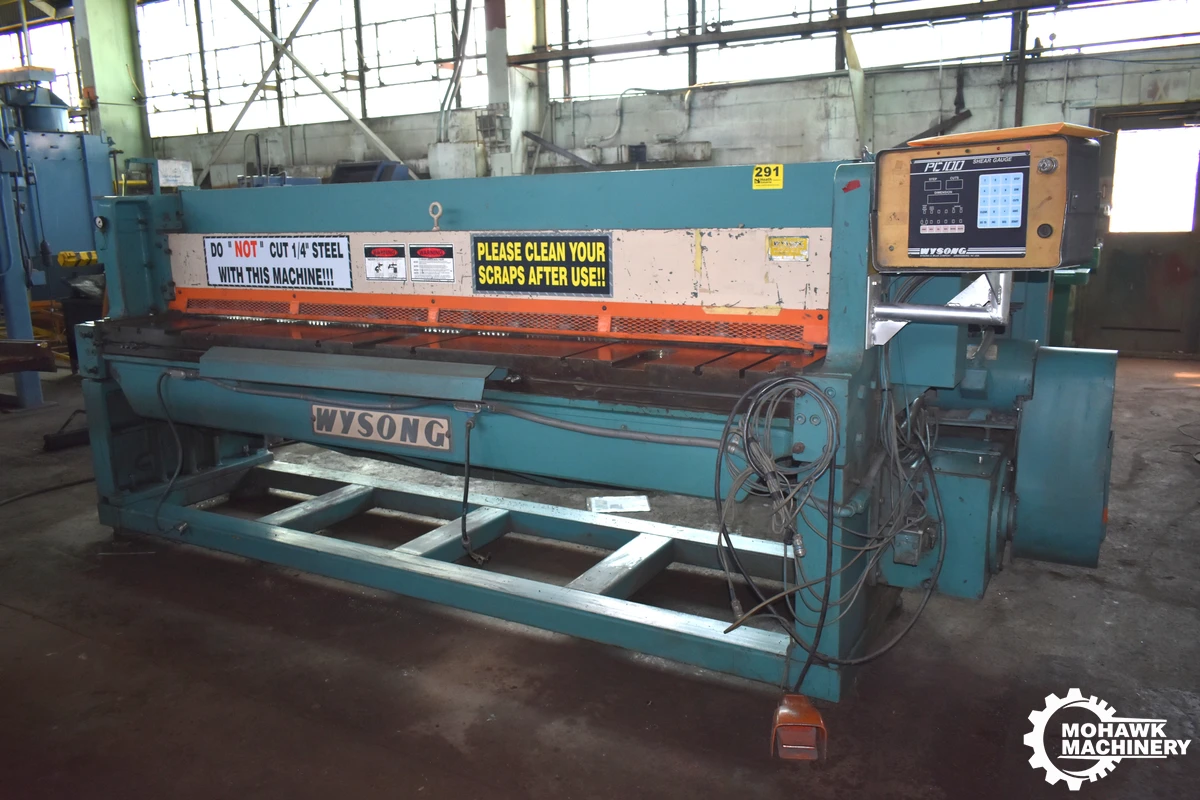

10' x 10 GA WYSONG CNC MECHANICAL POWER SQUARING SHEAR
Serial No P32-2041, Model 1010,

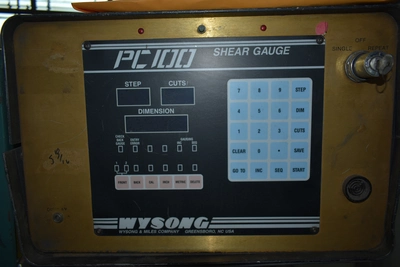

Wysong "PC100" Programmable CNC Control
36" CNC Controlled Front Operated Power Back Gauge
72" CNC Controlled Power Precision Squaring Arm
72" CNC Controlled Power Precision Front Gauging
(16) Spring-Activated Automatic Holddowns
Adjustable Rake
Bijur Lubrication System
No Pit Required
Shearing Capacity, Mild Steel 10' x 10 GA
Shearing Capacity, Stainless Steel 10' x 12 GA
Length Between Housings 10'
Rake, Taper Per Foot 3/8"
Strokes Per Minute 60 SPM
Main Motor, Horsepower/RPM 10 HP/1800 RPM
Electrical System 220-440/3/60
Overall Dimensions, L x D 168' x 103"
Overall Height 60"
Weight, Approximately 13500 LBS
F.O.B. OUR WAREHOUSE
