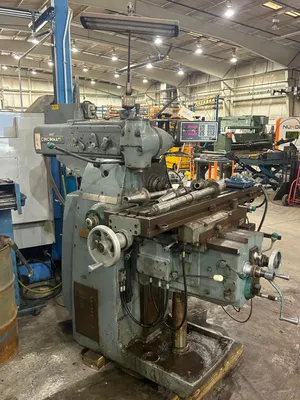

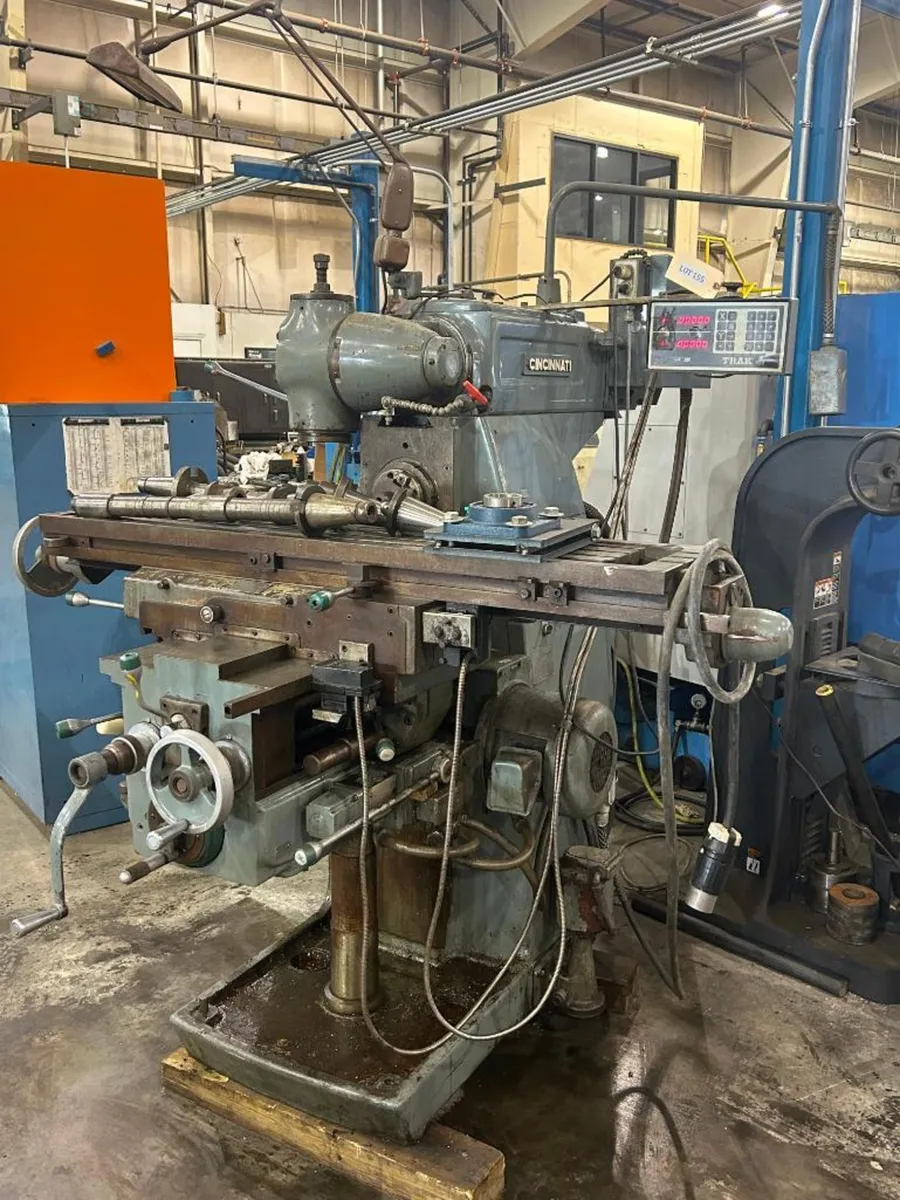

205-12 CINCINNATI-MILACRON "CINOVA 80" PLAIN HORIZONTAL MILL w/INDEPENDANT OVERHEAD VERTICAL HEAD SPINDLE - SONY DIGITAL READOUTS

Table Dimensions (Overall), W x L 12" x 56.5"

Table Working Surface, W x L 12" x 56.5"

Table Longitudinal Travel (X-Axis) 28"

Saddle In-Out Cross Travel (Z-Axis) 10"

Knee Vertical Travel (Y-Axis) 18.5"

Spindle-Center to Table-Top, Minimum 0"

Spindle-Center to Table-Top, Maximum 18"

Spindle Taper #50 NSTD

(16) Spindle Speeds, Range 25 to 2000 RPM

Vertical Spindle Speeds, Range 100 to 2250 RPM

(16) Longitudinal and Cross Feeds 1/4 to 30 IPM

Vertical Feeds, Range 1/8 to 15 IPM

Power Rapid Traverse, Long & Cross 150 IPM

Power Rapid Traverse, Vertical 75 IPM

Spindle Motor, Horsepower 5 HP

Feed Motor, Horsepower 1.5 HP

Electrical System 220-440/3/60

Floor Space Required, W x D 8'5 x 7'11"

Weight, Approximately 5850 LBS

F.O.B. OUR WAREHOUSE
