42.5" x 118" HWACHEON "MEGA-100/3000" CNC HEAVY-DUTY FLATBED LATHE w/6.1” HOLE THRU SPINDLE - SIEMENS "SINUMERIK" CNC CONTROL - 24.5" 3-JAW CHUCK - STEADY REST

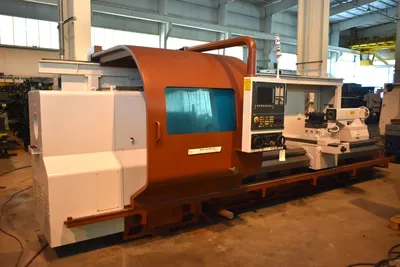

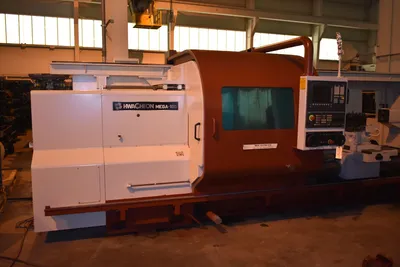

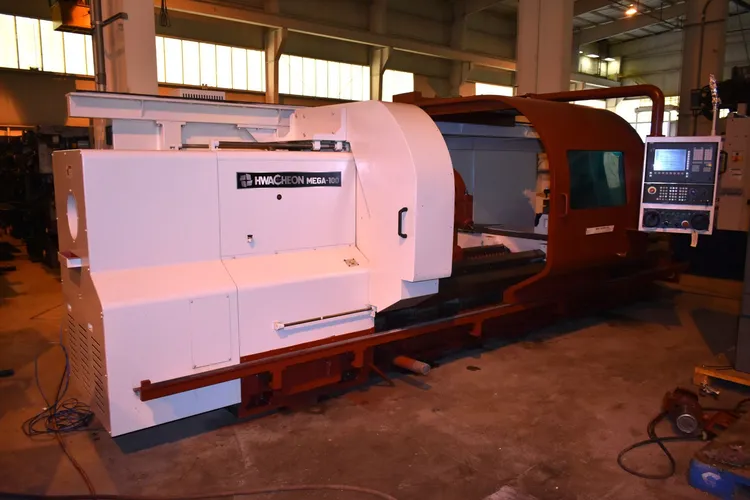

42.5" x 118" HWACHEON "MEGA-100/3000 HEAVY-DUTY
FLATBED CNC LATHE
New 2010, Serial No 330057, Model MEGA-100/3000

EQUIPPED WITH:

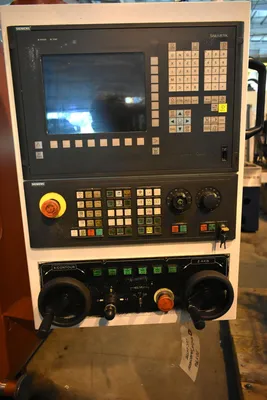

Siemens "Sinumerik" CNC Control w/CRT (Pendant Mounted)

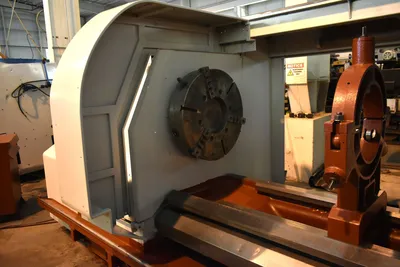

24.5" 3-Jaw Chuck

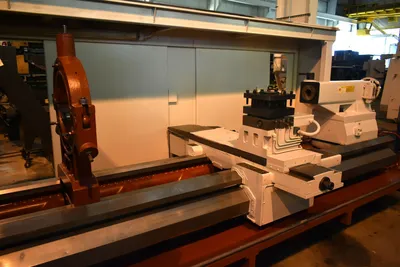

4-Position Hydraulic Turret

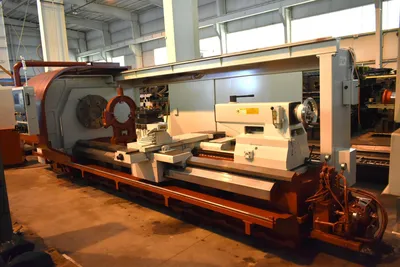

Steady Rest
A2-15 Spindle Nose
Chip Conveyor (Full Length)

CATALOG SPECIFICATIONS:
Hole thru Spindle 6.1"
Chuck Diameter "
Swing Over Bed, Maximum 42.5"
Swing Over Saddle 28.3"
Distance Between Centers 118"
Cutting Diameter Over Bed, Maximum 39.3"
Cutting Diameter Over Saddle, Maximum 27.5"
Cross Travel (X-Axis) 20"
Longitudinal Travel (Z-Axis) 118"
Spindle Speeds, Range 40 to 750 RPM
Power Rapid Traverse, X-Axis 236 IPM
Power Rapid Traverse, Y-Axis 236 IPM
Tailstock Quill Diameter 7.87"
Tailstock Spindle Center 6 MT
Bed Width 27.5"
Bed Length 211.4"
Floor Space Required, L x W 244" x 93"
Overall Height 85"
Motor Horsepower 45 KVA
Weight Approximately 25500 LBS
F.O.B. OUR WAREHOUSE
