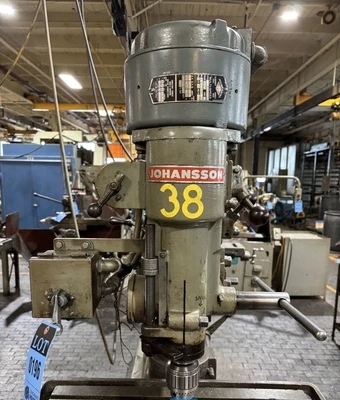

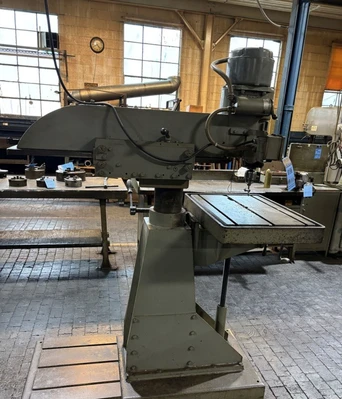

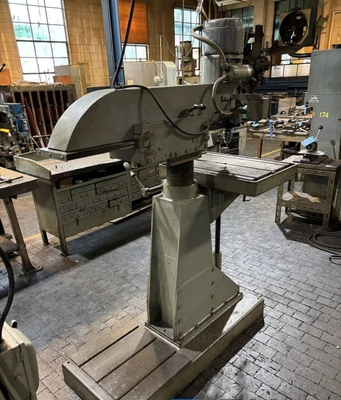

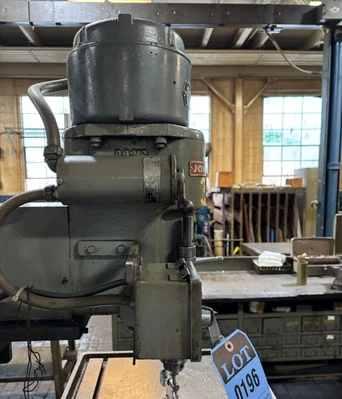

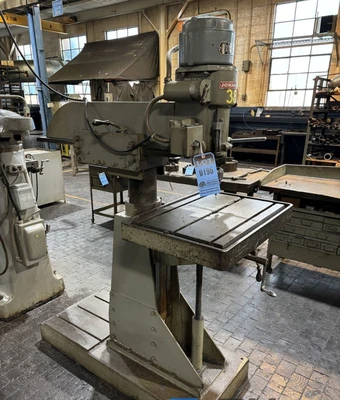

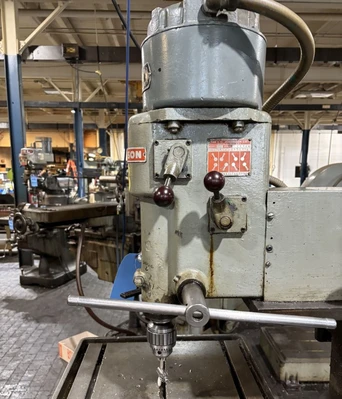

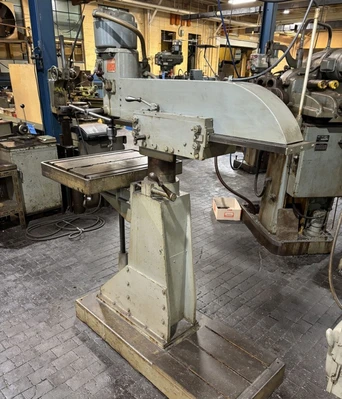

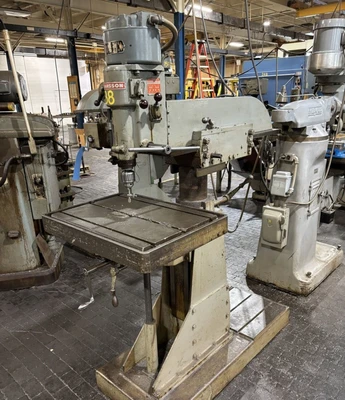

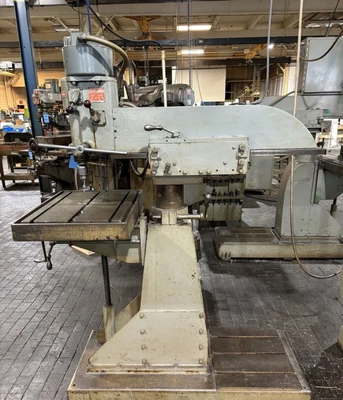

2'6" JOHANSSON “STANDARD-DUTY” SLIDING RAM-TYPE RADIAL DRILL (1 HP)

Arm Length 2'6"

Column Diameter 6"

Drilling Capacity, Cast Iron 1.75"

Drilling Capacity, Mild Steel 1.5"

Vertical Arm Travel on Column 12"

Vertical Table Travel on Column 14.5"

Vertical Spindle Travel in Head 6"

Spindle-Radius, Minimum 11"

Spindle-Radius, Maximum 35"

Spindle-Nose to Table, Minimum 4"

Spindle-Nose to Table, Maximum 31"

Spindle-Nose to Base, Minimum 35"

Spindle-Nose to Base, Maximum 53"

Spindle-Center to Column, Minimum 2.5"

Spindle-Center to Column, Maximum 30"

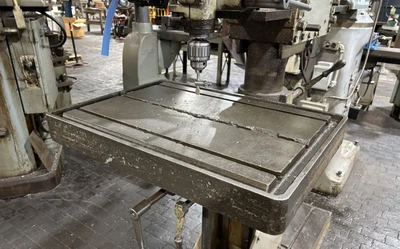

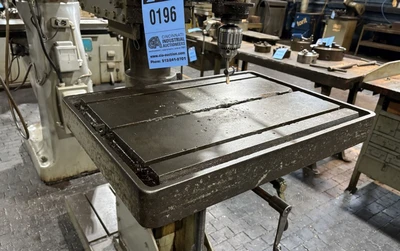

Table Overall Dimensions, W x L 20" x 28"

Base Working Surface, W x L 20.5" x 24"

Quill Diameter 2.75"

(8) Spindle Speeds, Range 125 to 1540 RPM

Main Motor, Horsepower 1 HP

Weight, Approximately 2400 LBS

F.O.B. OUR WAREHOUSE
