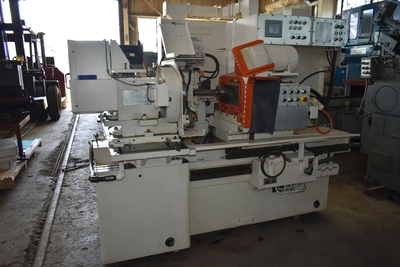

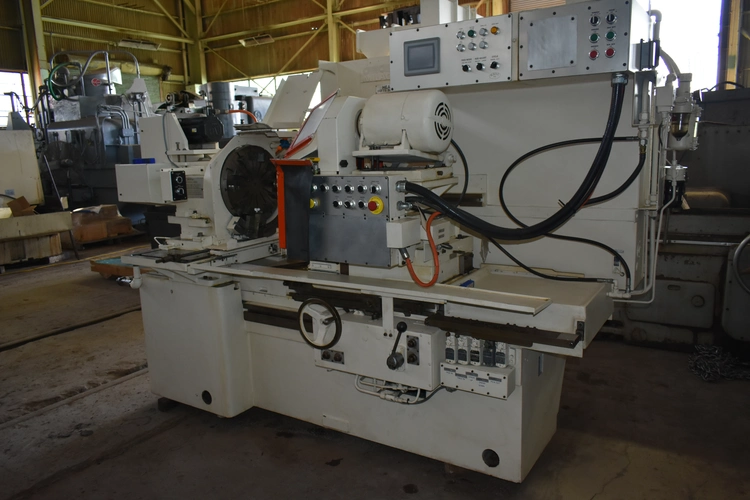

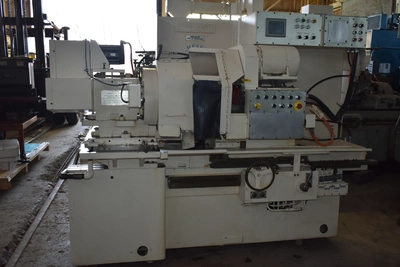

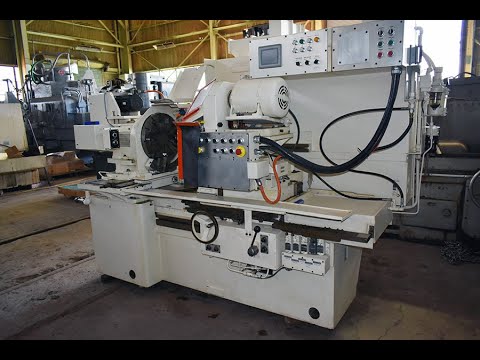

2EF73 CINCINNATI-MILACRON HEALD "ELECTRONIC-FEED" INTERNAL GRINDER w/RED-HEAD GRINDING SPINDLE - 16" MAGNETIC CHUCK (REBUILT 2019)

2EF73 HEALD/CINCINNATI-MILACRON
"ELECTRONIC-FEED" INTERNAL GRINDER
Rebuilt 2019, Serial No 48324, Model 2EF73, Series "ELECTRONIC-FEED"

EQUIPPED WITH:

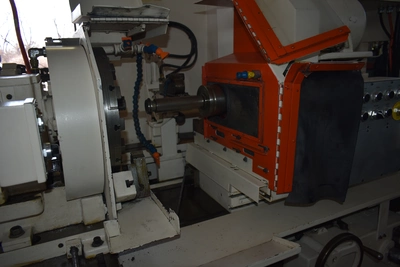

12000 RPM Heald "Red-Head" Grinding Spindle
Table Mounted Grinding Wheel Dresser

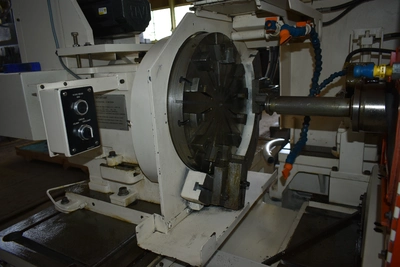

16" Diameter Magnetic Chuck

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum................. 23.5"
Swing Inside Coolant Splash Guard......... 20"
Swing w/Workhead @ 90-Degrees............. 13"
Grinding Stroke, Minimum.................. 3/16"
Grinding Stroke, Maximum.................. 16"
Table Longitudinal Travel................. 20"
Wheelhead Cross-Slide Travel.............. 1.5"
Workhead Cross-Slide Travel............... 17.5"
Workhead Swivel Angle, Maximum............ 90-DEGREES
Workhead Spindle Speeds, Reversable....... 0 to 500 RPM
Internal Grinding Spindle Speed........... 12000 RPM
Grinding Table Speeds, Infinite........... 0 to 25 FPM
Grinding Spindle Motor, Horsepower........ 5 HP
Workhead Chuck Motor, Horsepower.......... 1.5 HP
Hydraulic Motor, Horsepower............... 1.5 HP
Overall Dimensions, W x D................. 9'1" x 8'8"
Weight, Approximately..................... 10000 LBS

NOTE: This Machine Was Rebuilt By M.R.S.E. Inc In
December 2019.
F.O.B. OUR WAREHOUSE
