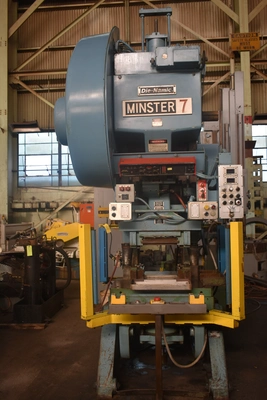

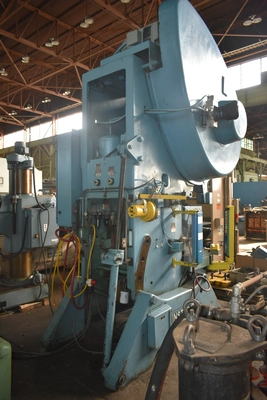

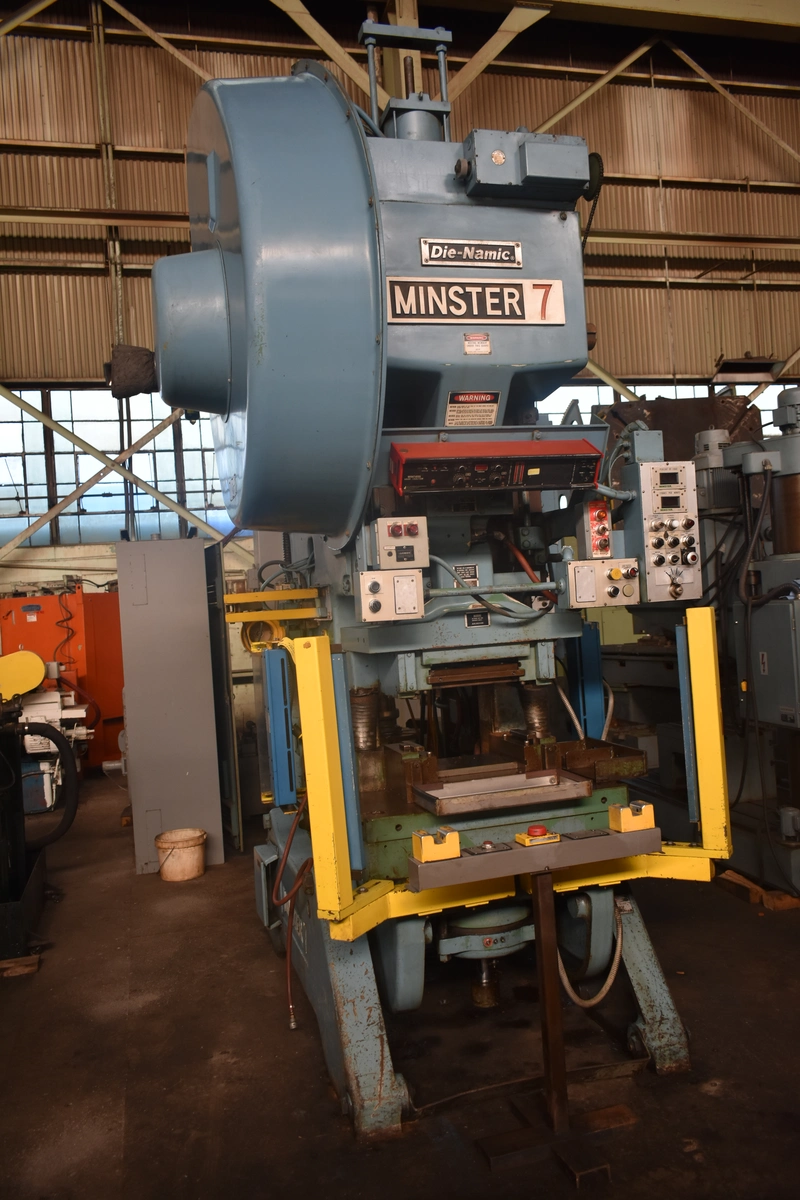

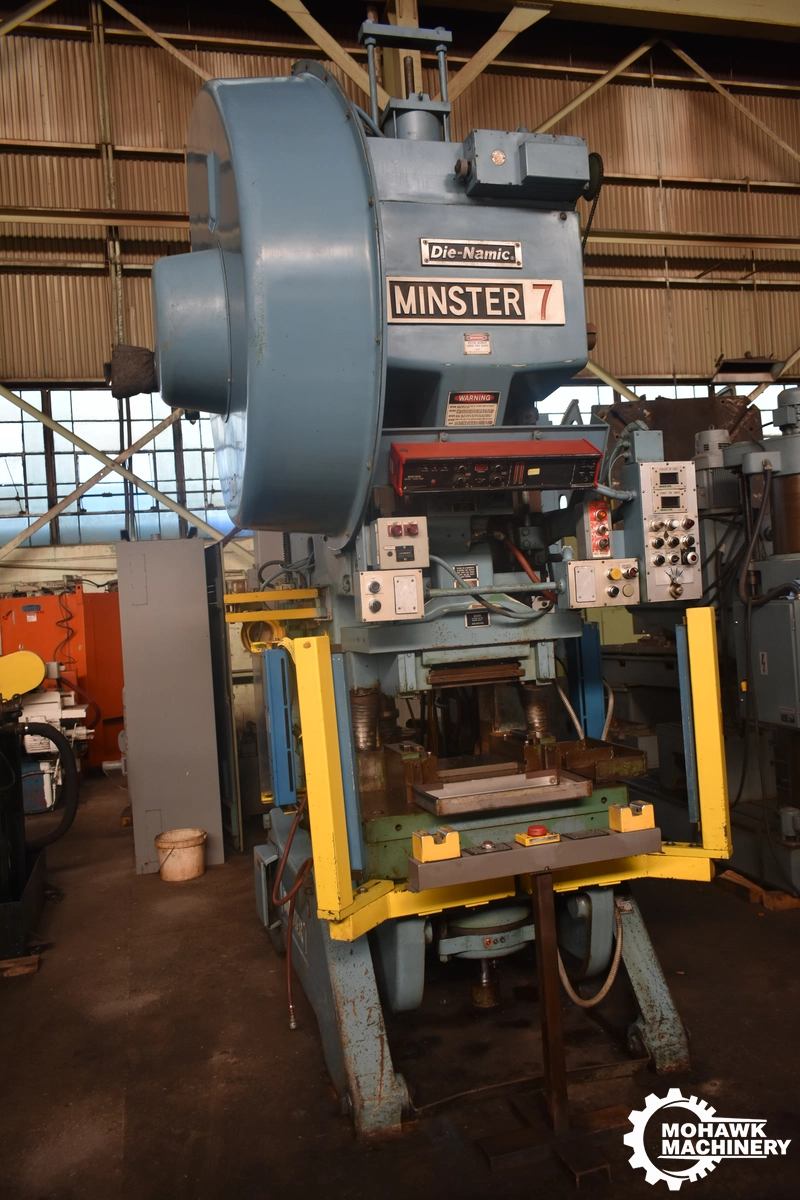

75 TON MINSTER "7" DIE-NAMIC FLYWHEEL-TYPE O.B.I. PRESS w/VARI-SPEED DRIVE - AIR CUSHION

75 TON MINSTER "7" DIE-NAMIC FLYWHEEL-TYPE O.B.I. PRESS w/VARI-SPEED DRIVE - AIR CUSHION

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$34,500.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
OBI Presses (Open Back Inclinable)
Manufacturer:
MINSTER
Model:
7
Stock #:
30598
Status:
For Sale

Description

75 TON MINSTER "DIE-NAMIC" OBI PRESS

Serial No. 7D-SS-26447, Model 7, Series DIE-NAMIC

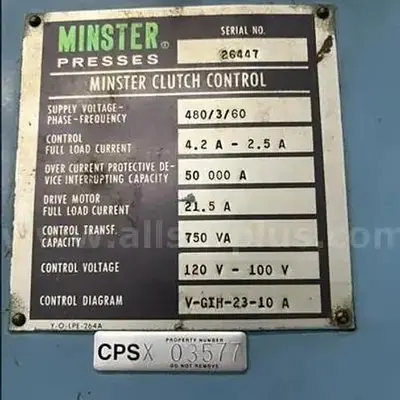

Air Clutch & Brake

Flywheel Design

15 HP Eaton "Dynamatic" Variable Speed Drive

Die-Namic Die Changing System

7.7 Ton Die Cushion (100 PSI)

Air Counterbalance - Air Blowoff

Recirculating Lubrication System

Tonnage75 T68.039 t
Stroke4"101.6 mm
Shut Height21"533.4 mm
Bed W36"914.4 mm
Bed L24"609.6 mm
SPM90 strokes/min.90 strokes/min.
Air Clutch (Yes/No)YesYes
Type (BG, Double Action, FW)FlywheelFlywheel
Weight1900019000

Tonnage Capacity 75 TON

Stroke Length 4"

Shut Height to Bed, (SDAU) 21"

Shut Height to Bolster, (SDAU) 18"

Power Slide Adjustment 3.5"

Bed Area, L-R x F-B 36" x 24"

Bolster Area, L-R x F-B 36" x 24"

Ram Area, L-R x F-B 24" x 16"

Stokes Per Minute, Variable 90 to 180 SPM

Variable Drive Motor, HP/RPM 15 HP/50 -1750 RPM

Electrical System 230-460/3/10

Weight, Approximately 19000 LBS

F.O.B. OUR WAREHOUSE
