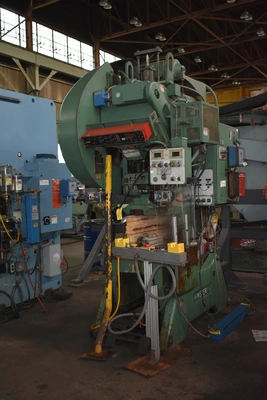

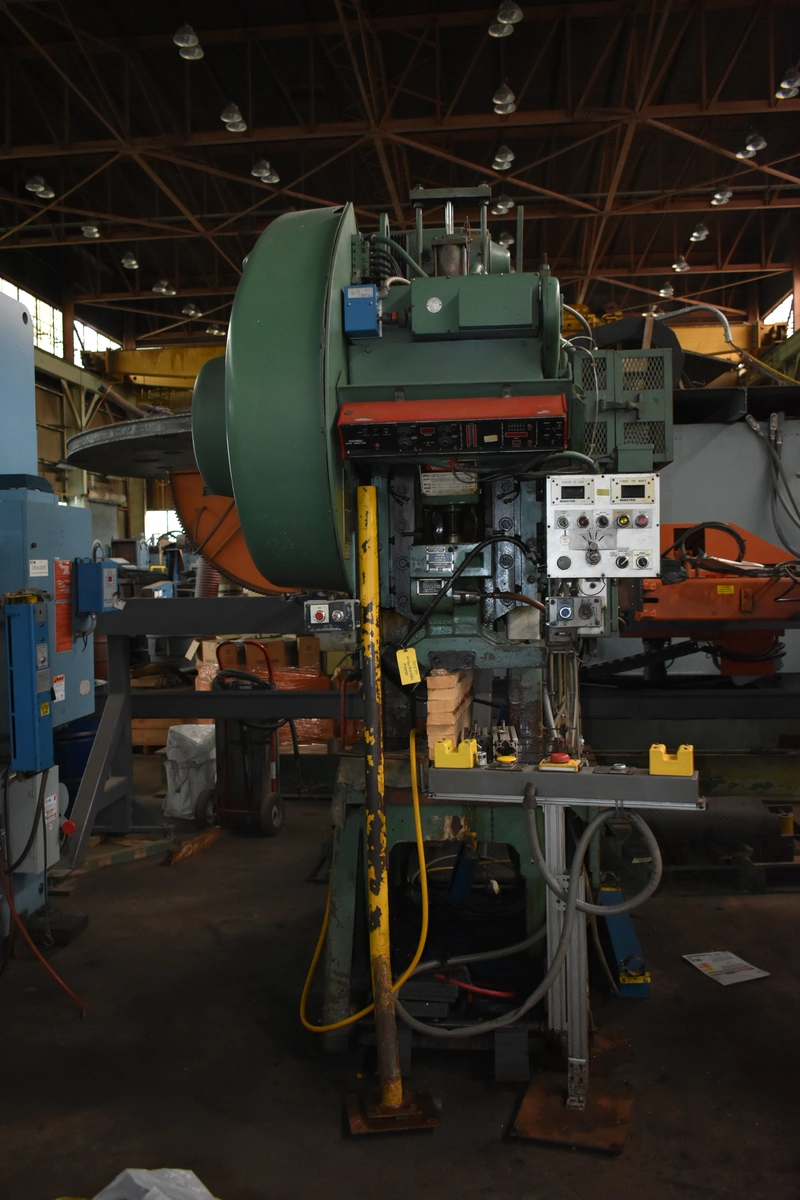

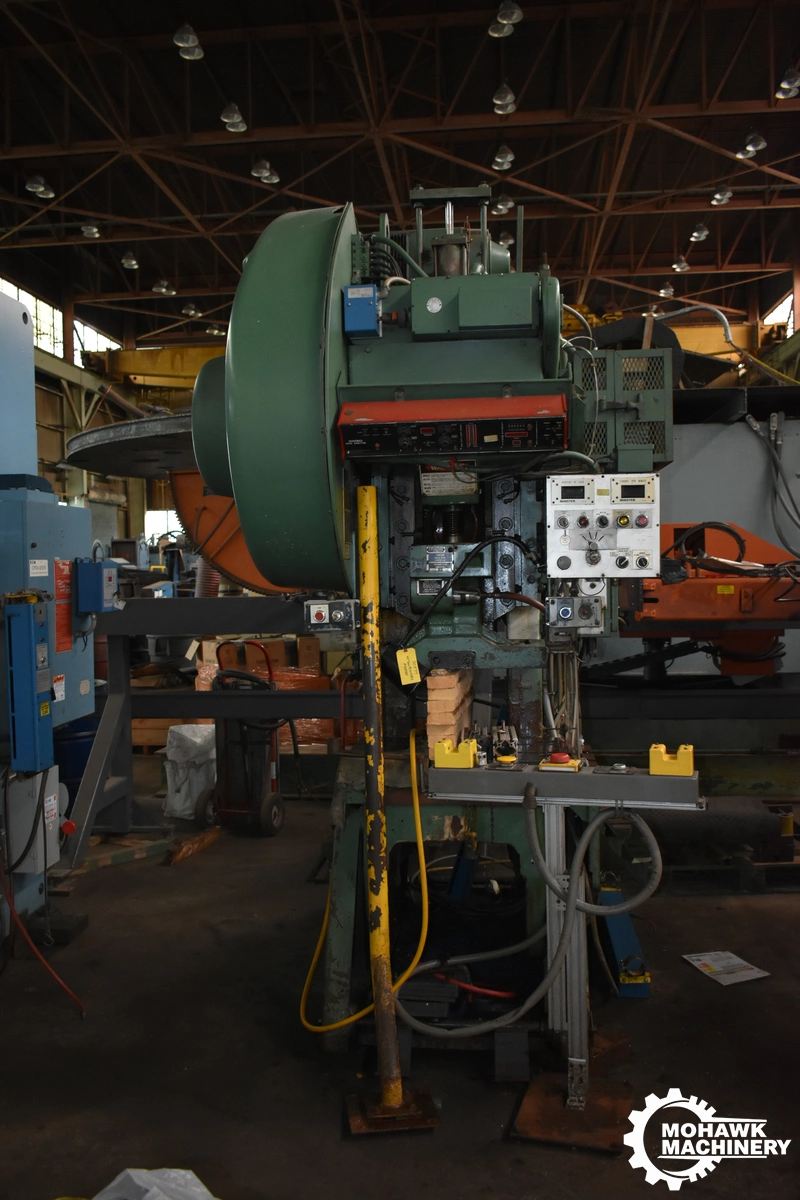

45 TON MINSTER "5" FLYWHEEL-TYPE O.B.I. PRESS w/VARI-SPEED DRIVE - AIR CUSHION
Have one to sell?
ConditionUsed
1 available
$12,500.00 USD
45 TON MINSTER "5" O.B.I. FLYWHEEL PRESS
Serial No 5SS-25931, Model 5
45 TON MINSTER "5" O.B.I. FLYWHEEL PRESS
Serial No 5SS-25931, Model 5
EQUIPPED WITH:
Variable-Speed Drive
Flywheel Drive
5.7 Ton Air Cushion w/2" Stroke (100 PSI)
Recirculating Lubrication System
CATALOG SPECIFICATIONS:
Tonnage Capacity 45 TON
Stroke Length 4"
Shut Height to Bed, (SDAU) 12.25"
Shut Height to Bolster, (SDAU) 10"
Ram Adjustment 2.5"
Ram Area, L-R x F-B 24" x 14"
Bed Area, L-R x F-B 28" x 18"
Bed Opening, L-R x F-B 16" x 12"
Throat Depth 9.5"
Strokes per Minute, Variable 90 to 180 SPM
Drive Motor, Horsepower 3 HP
Weight Approximately 10000 LBS
F.O.B. OUR WAREHOUSE
45 TON MINSTER "5" O.B.I. FLYWHEEL PRESS
Serial No 5SS-25931, Model 5
Imperial
| Tonnage | 45 T |
| Stroke | 4" |
| Shut Height | 12.25" |
| Bed W | 28" |
| Bed L | 18" |
| SPM | 180 strokes/min. |
| Air Clutch (Yes/No) | Yes |
| Type (BG, Double Action, FW) | 'Flywheel' |
| Weight | 10000 lbs |
45 TON MINSTER "5" O.B.I. FLYWHEEL PRESS
Serial No 5SS-25931, Model 5
EQUIPPED WITH:
Variable-Speed Drive
Flywheel Drive
5.7 Ton Air Cushion w/2" Stroke (100 PSI)
Recirculating Lubrication System
CATALOG SPECIFICATIONS:
Tonnage Capacity 45 TON
Stroke Length 4"
Shut Height to Bed, (SDAU) 12.25"
Shut Height to Bolster, (SDAU) 10"
Ram Adjustment 2.5"
Ram Area, L-R x F-B 24" x 14"
Bed Area, L-R x F-B 28" x 18"
Bed Opening, L-R x F-B 16" x 12"
Throat Depth 9.5"
Strokes per Minute, Variable 90 to 180 SPM
Drive Motor, Horsepower 3 HP
Weight Approximately 10000 LBS
F.O.B. OUR WAREHOUSE
