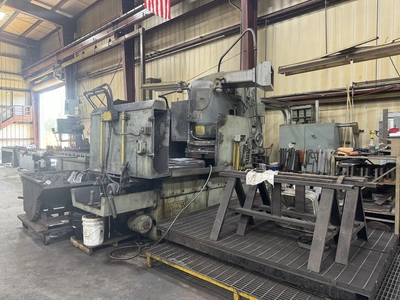

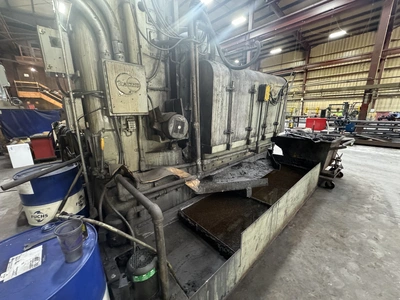

60" BLANCHARD "32-60" EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER w/100 HP SPINDLE MOTOR - 24" HEIGHT UNDER WHEEL

60" BLANCHARD EXTRA-HIGH VERTICAL-SPINDLE
ROTARY SURFACE GRINDER
Serial No 11108, Model 32-60

EQUIPPED WITH:
60" Diameter Magnetic Chuck w/Variable Neutrofier
32" Cortland Segmented Grinding Wheel w/(7) Segments
100 HP Spindle Motor - 24" Vertical Range
Power Rapid Raise & Lower To Wheelhead (Interlocked
With Feed) - Standard Dry Base Design
Trabon Lubrication System
Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 60"
Magnetic Chuck Work Load Capacity 6000 LBS
Grinding Vertical Range, Maximum 24"
Grinding Wheel Speed 514 RPM
Chuck Speeds, Range 5.6 to 20.7 RPM
Power Down Feeds, Range .004 to .080 IPM
Down Feed Before Feed Trips, Max .198"
Spindle Motor, Horsepower 100 HP
Chuck Rotation Motor 5 HP
Overall Dimensions, L x W 12'4" x 7'1"
Overall Height 10'9"
Weight, Approximately 34000 LBS
F.O.B. OUR WAREHOUSE
