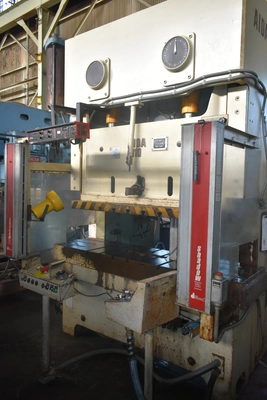

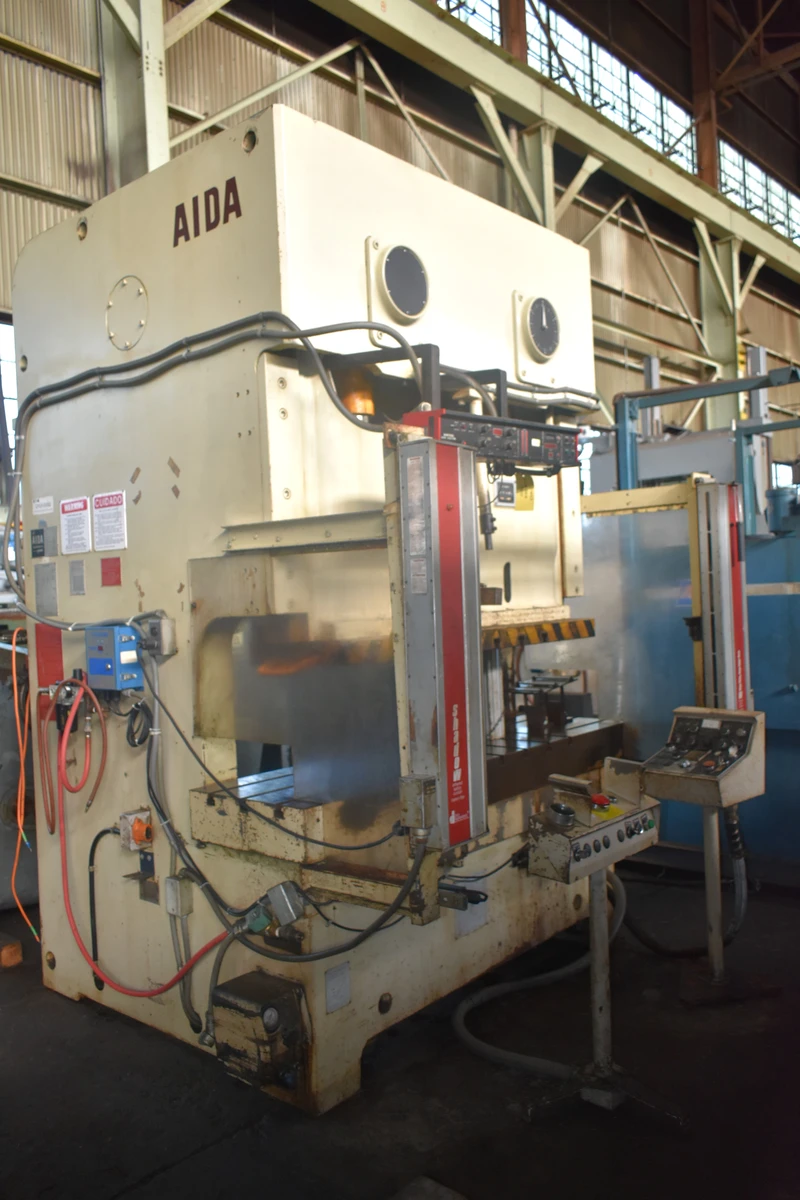

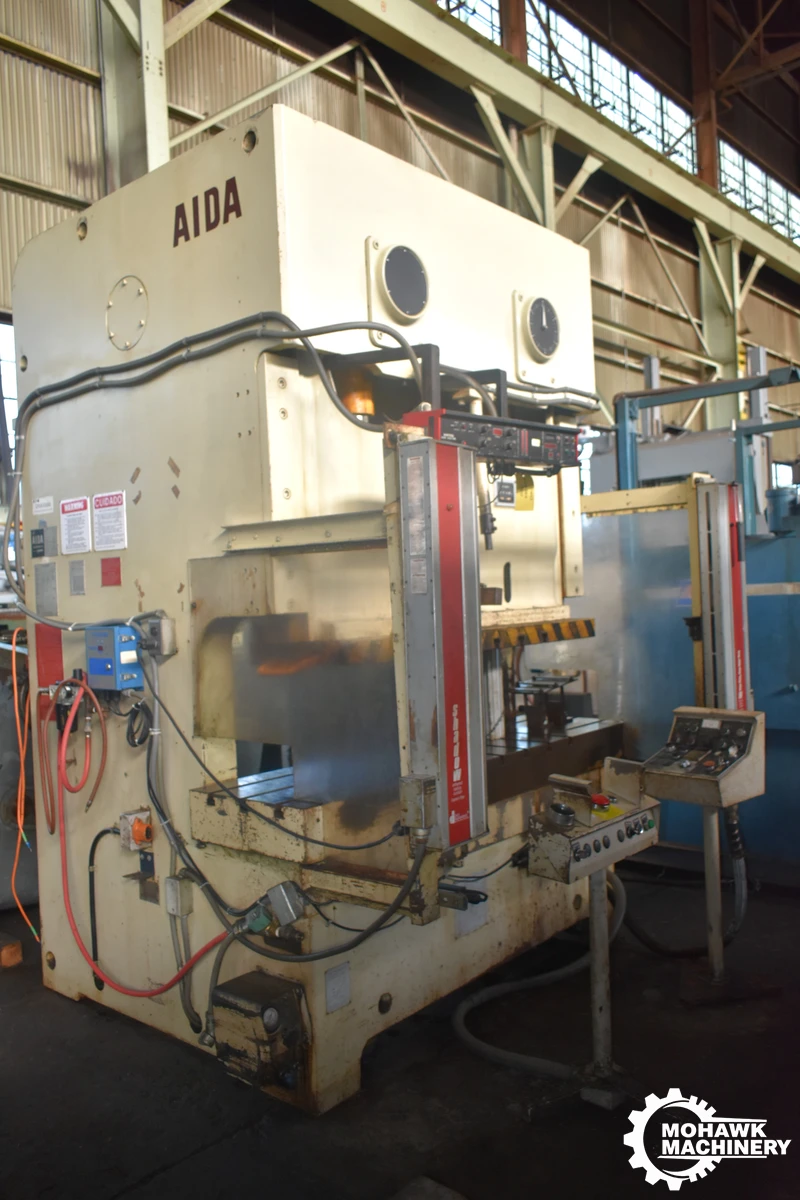

121 TON AIDA "NC2-110(1)" DOUBLE-CRANK GAP-FRAME PRESS w/VARI-SPEED DRIVE - HYDRAULIC OVERLOAD PROTECTION - 74” X 20.4” BED
Have one to sell?
ConditionUsed
1 available
$59,500.00 USD
121 TON AIDA DOUBLE-CRANK GAP FRAME PRESS
Serial No 00511-1422, Model NC2-110 (1)
121 TON AIDA DOUBLE-CRANK GAP FRAME PRESS
Serial No 00511-1422, Model NC2-110 (1)
EQUIPPED WITH:
Air Clutch & Brake
Variable Speed Drive
Power Slide Adjustment
Hydraulic Overload Protection
CATALOG SPECIFICATIONS:
Tonnage Capacity, Tons 110 TON
Tonnage Capacity, Short Tons 121 TON
Stroke Length 4.33"
Die Height Slide to Bolster, (SDAU) 13.7"
Ram Adjustment (Power) 3.5"
Ram Area, L-R x F-B 53.5" x 20.4"
Bed Area, L-R x F-B 74" x 20.4"
Gap Length 13.75"
Strokes Per Minute, Variable 59 to 100 SPM
Motor, Horsepower 15 HP
F.O.B. OUR WAREHOUSE
121 TON AIDA DOUBLE-CRANK GAP FRAME PRESS
Serial No 00511-1422, Model NC2-110 (1)
Imperial
| Tonnage | 110 T |
| Stroke | 4.33" |
| Shut Height | 13.7" |
| Power | 15 hp |
| Bed W | 20.4" |
| Bed L | 74" |
| SPM | 59,100 strokes/min. |
121 TON AIDA DOUBLE-CRANK GAP FRAME PRESS
Serial No 00511-1422, Model NC2-110 (1)
EQUIPPED WITH:
Air Clutch & Brake
Variable Speed Drive
Power Slide Adjustment
Hydraulic Overload Protection
CATALOG SPECIFICATIONS:
Tonnage Capacity, Tons 110 TON
Tonnage Capacity, Short Tons 121 TON
Stroke Length 4.33"
Die Height Slide to Bolster, (SDAU) 13.7"
Ram Adjustment (Power) 3.5"
Ram Area, L-R x F-B 53.5" x 20.4"
Bed Area, L-R x F-B 74" x 20.4"
Gap Length 13.75"
Strokes Per Minute, Variable 59 to 100 SPM
Motor, Horsepower 15 HP
F.O.B. OUR WAREHOUSE
