24" x 60" CHEVALIER "FCL-2460A" COMBINATION CNC/MANUAL FLAT-BED LATHE w/ANILAM 4200T CNC CONTROLS - 12” 3-JAW CHUCK
Have one to sell?
$17,500.00 USD
ConditionUsed
1 available

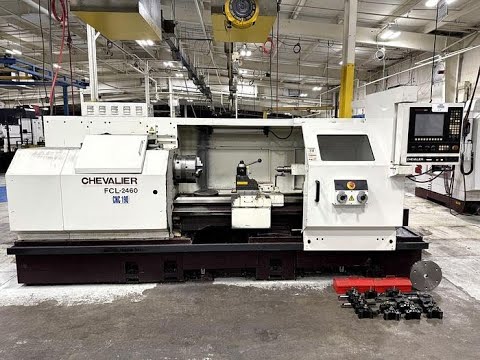

24" x 60" CHEVALIER COMBINATION CNC/MANUAL FLAT BED CNC LATHE
Serial No X3934001, Model FCL-2460A

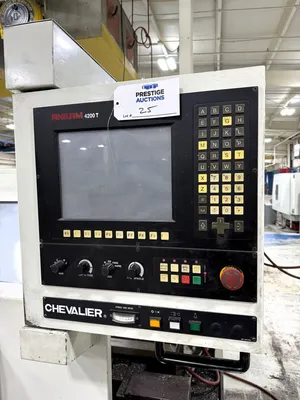

Anilam #4200T CNC Control

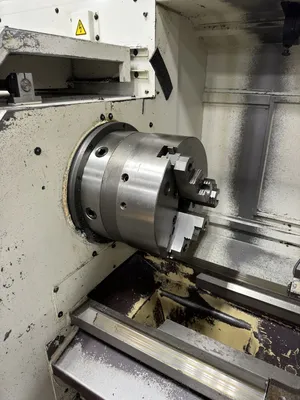

12" 3-Jaw Chuck w/Jaws

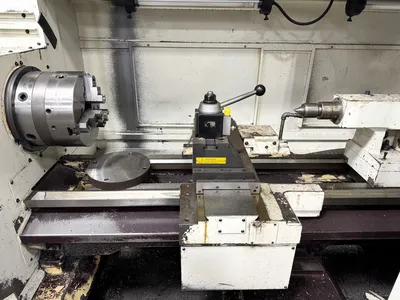

Tailstock

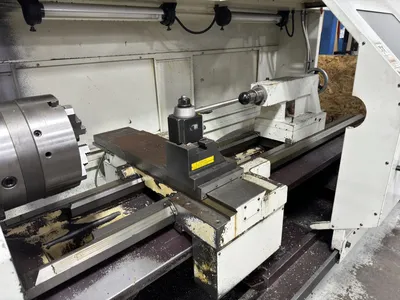

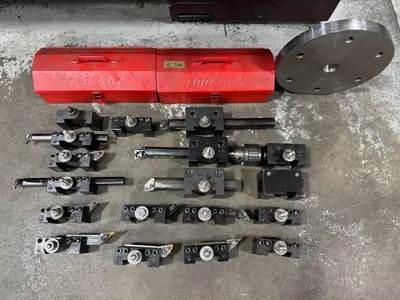

Aloris Tool Post - Some Aloris Tool Post Holders
Hole thru Spindle 3.15"
Swing Over Bed Ways 24"
Swing Over Cross Slide 14.57"
Machining Diameter, Maximum 18"
Distance Between Centers 60"
Cross Slide Cross Travel (X-Axis) 12.2"
Longitudinal Travel (Z-Axis) 59"
Tailstock Quill Taper #5 MT
Tailstock Quill Diameter 3"
Tailstock Quill Travel 8"
Spindle Speeds, Range 40 to 1800 RPM
Feed Rates, Range 0 to 200 IPM
Rapid Traverse Rate 400 IPM
Spindle Drive Motor 20 HP
Floor Space, L x W 158" x 64"
Overall Height 77"
Weight, Approximately 4500 LBS
F.O.B. OUR WAREHOUSE
