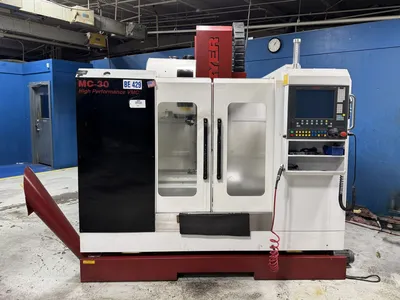

MC-30 FRYER "HIGH PERFORMANCE" CNC VERTICAL MACHINING CENTER w/FRYER/SIEMENS TOUCH 2200 CNC CONTROL - 24-POSITION AUTOMATIC TOOL CHANGER

MC-30 FRYER "HIGH PERFORMANCE" CNC VERTICAL
MACHINING CENTER

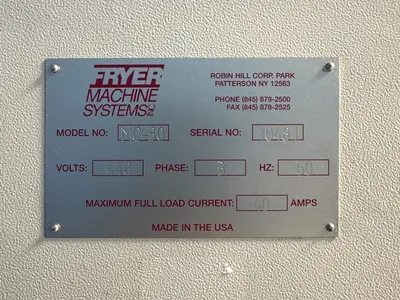

New 2015, Serial No. 10481, Model MC-30

EQUIPPED WITH:

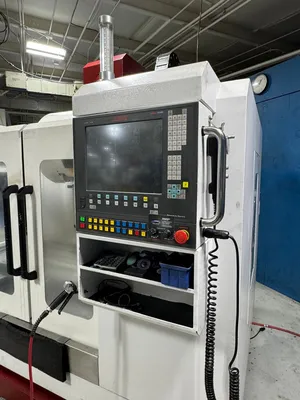

Fryer/Siemens "Touch 2200" CNC Control
24-Position Automatic Tool Changer
Thru-Spindle Coolant System
Chip Auger
(No Vises)

CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 16.5" x 31.5"
Table Load Capacity 2500 LBS
Table Longitudinal Travel (X-Axis) 30"
Saddle Cross Travel (Y-Axis) 18"
Quill Vertical Travel (Z-Axis) 22"
Spindle Center to Column 18"
Spindle Nose to Table, Maximum 25"
Spindle Nose to Table, Minimum 3"
Tool Weight Maximuum 15.4 LBS
Tool Length Maximum 13"
Spindle Taper CAT 40
Spindle Speeds, Range 60 to 8500 RPM
Motor Horsepower (Peak) 30 HP
Cutting Feedrate, Range .001 to 900 IPM
Rapid Traverse Rates, X & Y 1200 IPM
Rapid Traverse Rate Z-Axis 900 IPM
Operating Dimensions 93" x 86" x 76"
Weight, Approximately 9900 LBS
F.O.B. OUR WAREHOUSE
