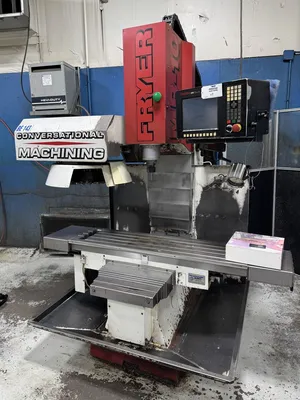

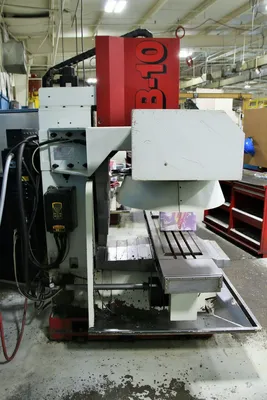

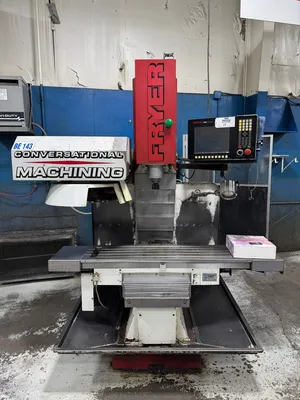

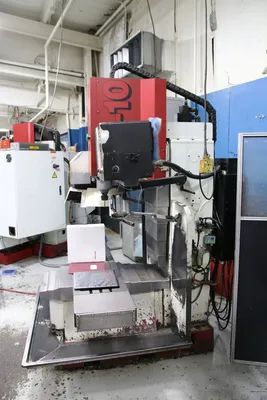

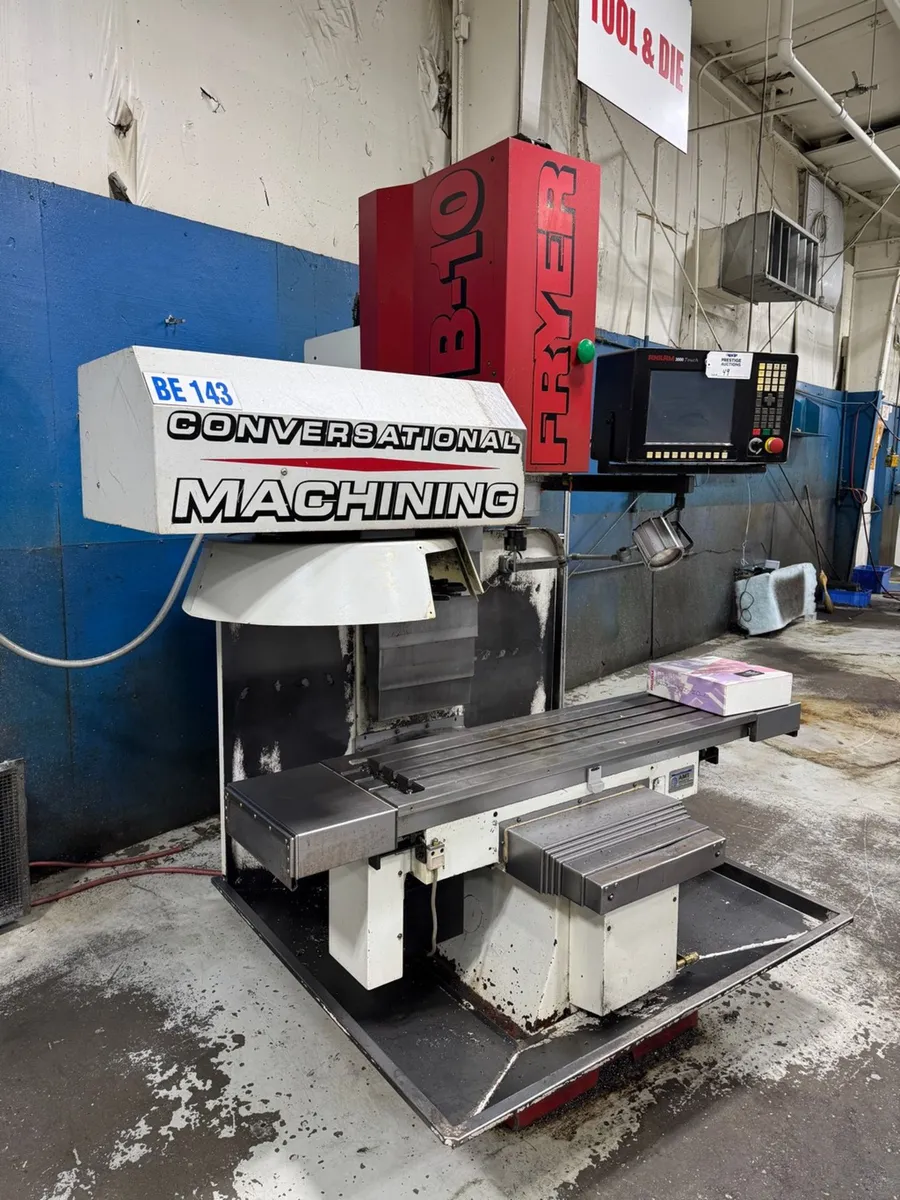

MB-10R FRYER "CONVERSATIONAL" CNC VERTICAL TOOLROOM BED MILL MACHINING CENTER w/RIGID SPINDLE HEAD - ANILAM TOUCH SCREEN CNC CONTROLS - 12-POSITION AUTOMATIC TOOL CHANGER

MB-10R FRYER "CONVERSATIONAL" CNC VERTICAL TOOLROOM
BED MILL MACHINING CENTER w/RIGID HEAD
New 2007, Serial No. 10243, Model MB10R

EQUIPPED WITH:

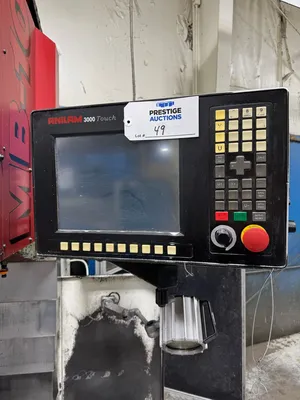

Anilam #3000 Touch Screen CNC Controd

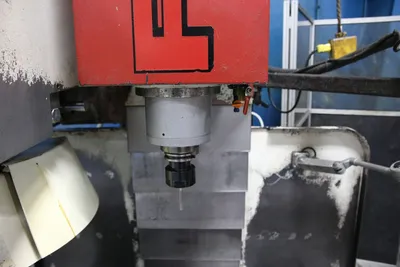

Rigid Spindle Head - (Can Be Run Manually)

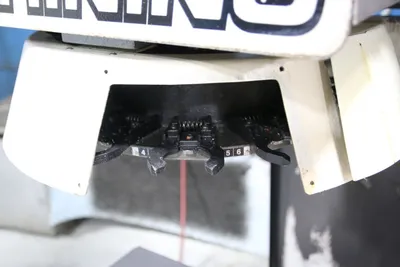

12-Position Automatic Tool Changer

CATALOG SPECIFICATIONS:

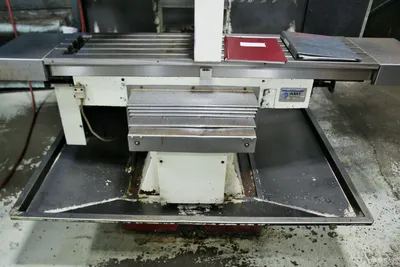

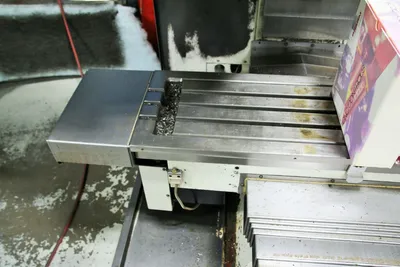

Table Dimensions (Overall), W x L 14" x 50"
Table Load Capacity 2000 LBS
Table Longitudinal Travel (X-Axis) 32"
Saddle Cross Travel (Y-Axis) 17"
Head Vertical Travel (Z-Axis) 19"
Spindle Center to Column 17.5"
Spindle Nose to Table, Maximum 25.5"
Spindle Nose to Table, Minimum 6.5"
Spindle Taper CAT 40
Tool Weight, Maximum 15.4 LBS
Tool Length, Maximum 11.8"
Spindle Speeds, Range 60 to 6000 RPM
Motor Horsepower (Peak) 12 HP
Cutting Feedrate, Range .001 to 300 IPM
Rapid Traverse Rate 400 IPM
Operating Dimensions 103" x 80" x 94"
Weight, Approximately 5000 LBS
F.O.B. OUR WAREHOUSE
