| Rect-Cap (H) | 10" | 254 mm |
| Rect-Cap (W) | 20" | 508 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 16" | 406.4 mm |
| Power | 10 hp | 7.5 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 228" | 5,791.2 mm |

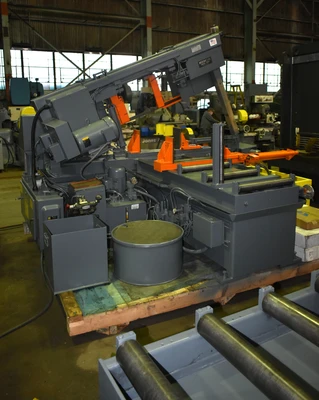

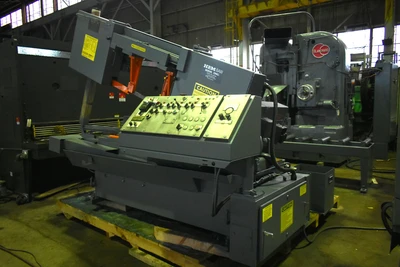

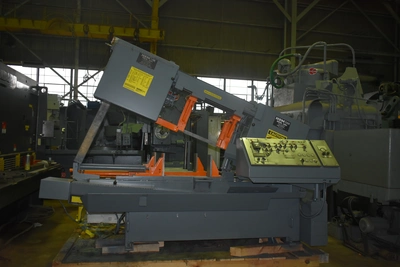

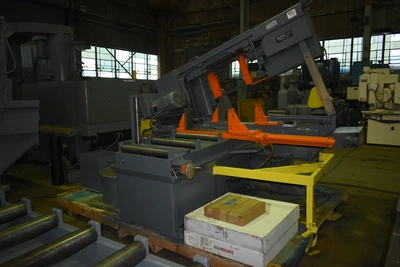

20" x 10" HEM AUTOMATIC PIVOT-SYLE
HORIZONTAL BAND SAW
New 2009, Serial No 1067809, Model H130HA-9
EQUIPPED WITH:
Hem Swing-Away Control Panel
w/Manual, Semi-Automatic, & Automatic Operation
Automatic Bar Feed w/(9) Indexes
"Cut-Watcher" (Blade Deviation Detection)
Auger Type Chip Conveyor
Coolant System (Built-In)
Some Conveyor
CATALOG SPECIFICATIONS:
Round Stock Capacity, Maximum 16"
Rectangular Stock Capacity, Maximum 20" x 10"
Flat Stock Capacity, Maximum 16" x 16"
Automatic Bar Feed Increments, Range 0 to 24"
Blade Feed, Range 72 to 400 SFPM
Band Length 19'
Band Width 1-1/2"
Band Thickness .050"
Clamping Pressure, Range 0 to 1500 LBS
Motor Horsepower 10 HP
Hydraulic Motor Horsepower 2 HP
Electrical System 220-440/3/60
F.O.B. OUR WAREHOUSE
