30" J&L METROLOGY "CLASSIC 30S" OPTICAL COMPARATOR w/QUADRA-CHEK 2000 DIGITAL READOUT - SURFACE ILLUMINATION - (2) LENSES - JOYSTICK CONTROL
Have one to sell?
$6,950.00 USD
ConditionUsed
1 available

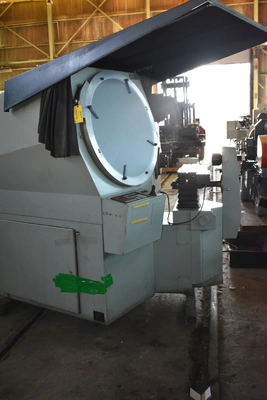

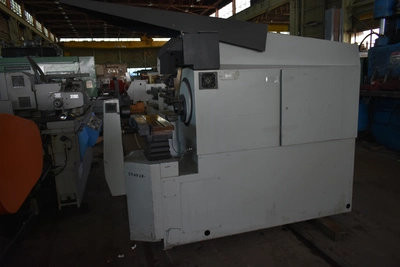

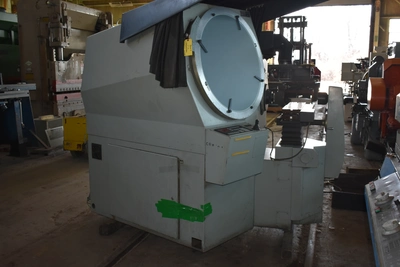

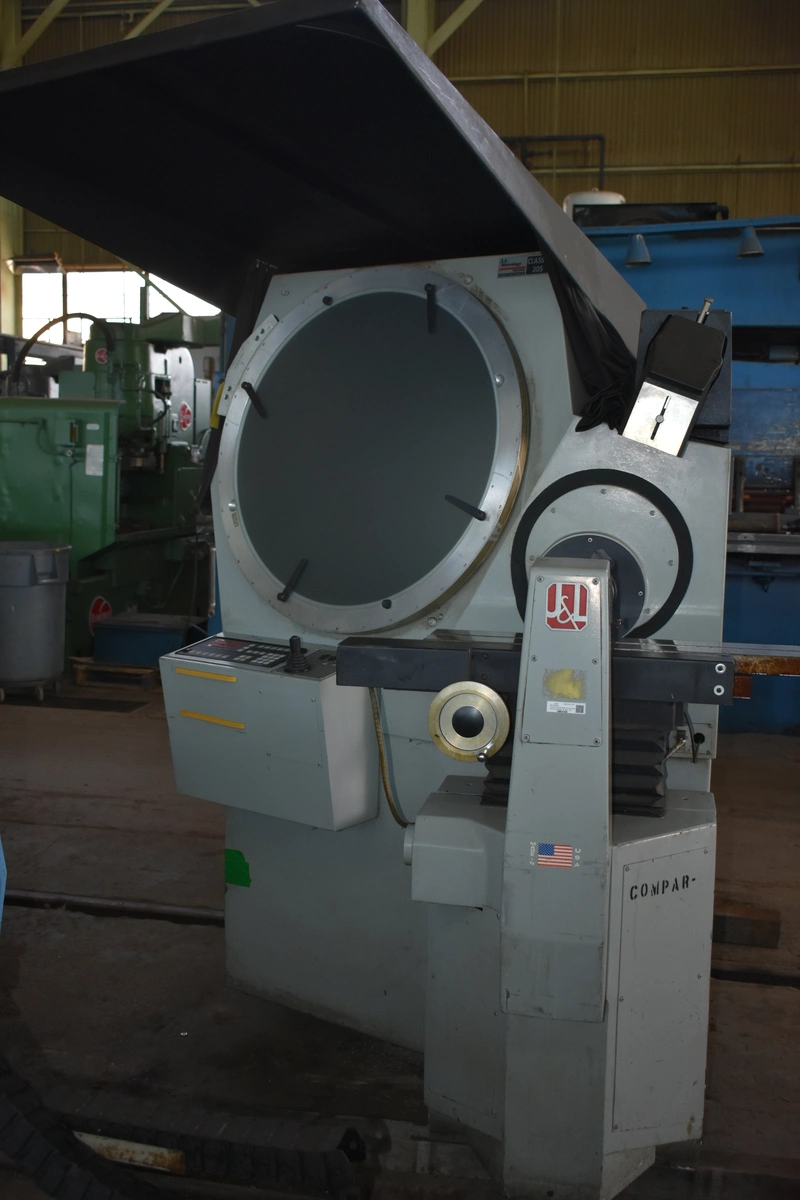

30" J&L METROLOGY/FELLOWS "CLASSIC 30S" OPTICAL COMPARATOR
Serial No 80977, Model "CLASSIC 30S"

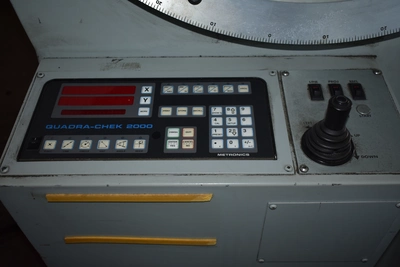

Quadra-Chek 2000 Programmable 2-Axis Digital Readouts
Surface Illumination
(2) Lenses: 20X, & 50X,
6-Position Power Lense Turret
Joystick Power Table Control (UP/DOWN, LEFT/RIGHT)
Screen Diameter 30"
Table Dimensions, W x L 6" x 30"
Table Horizontal Travel, X-Axis 8"
Table Vertical Travel, Y-Axis 6"
Measuring Range, Horizontal 8"
Measuring Range, Vertical 6"
Lens-Centerline to Table, Minimum 2.25"
Lens-Centerline to Table, Maximum 8.25"
Helix Rotation, Left & Right 10-DEGREES
Electrical System 115/1/60
Floor Space Required, W x D 72 x 122"
Overall Height 82"
Weight, Approximately 4200 LBS
F.O.B. OUR WAREHOUSE
