12.75" x 12.75" HEM "H90A-4" AUTOMATIC PIVOT-STYLE HIGH-SPEED HEAVY-DUTY HORIZONTAL BANDSAW w/CUT-WATCHER

Have one to sell?

sales@mohawkmachinery.com

$14,500.00 USD

ConditionUsed

Quantity

1 available

HEM H90A-4 Horizontal Band Saws | Mohawk Machinery (1)

HEM H90A-4 Horizontal Band Saws | Mohawk Machinery (2)

HEM H90A-4 Horizontal Band Saws | Mohawk Machinery (3)

HEM H90A-4 Horizontal Band Saws | Mohawk Machinery (4)

HEM H90A-4 Horizontal Band Saws | Mohawk Machinery (5)

HEM H90A-4 Horizontal Band Saws | Mohawk Machinery (6)

HEM H90A-4 Horizontal Band Saws | Mohawk Machinery

Have one to sell?

Overview

Type:

Horizontal Band Saws

Manufacturer:

Model:

H90A-4

Stock #:

30624

Status:

For Sale

Description

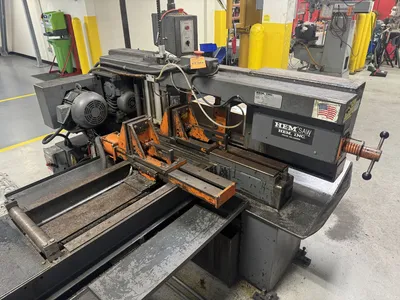

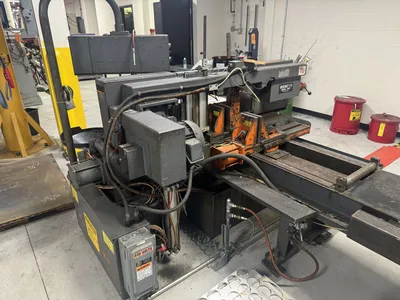

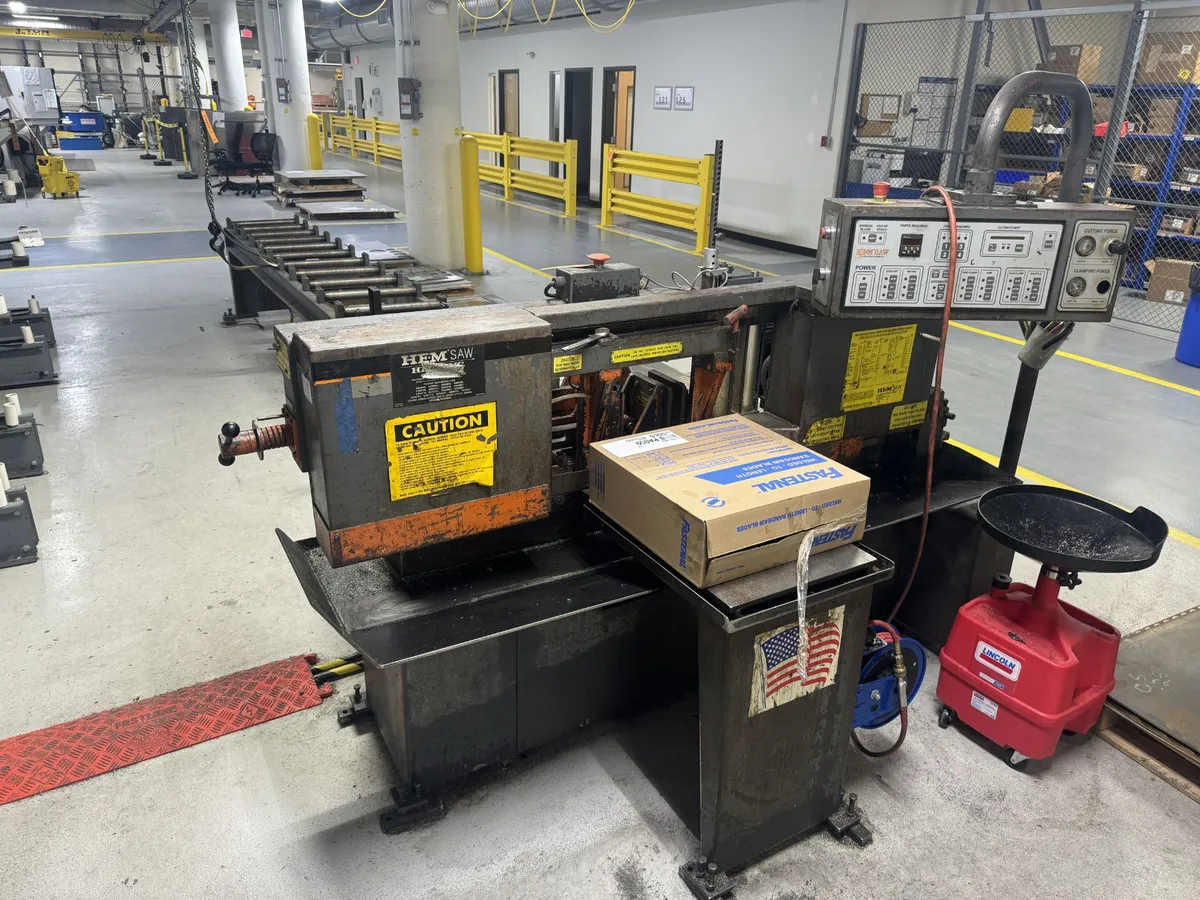

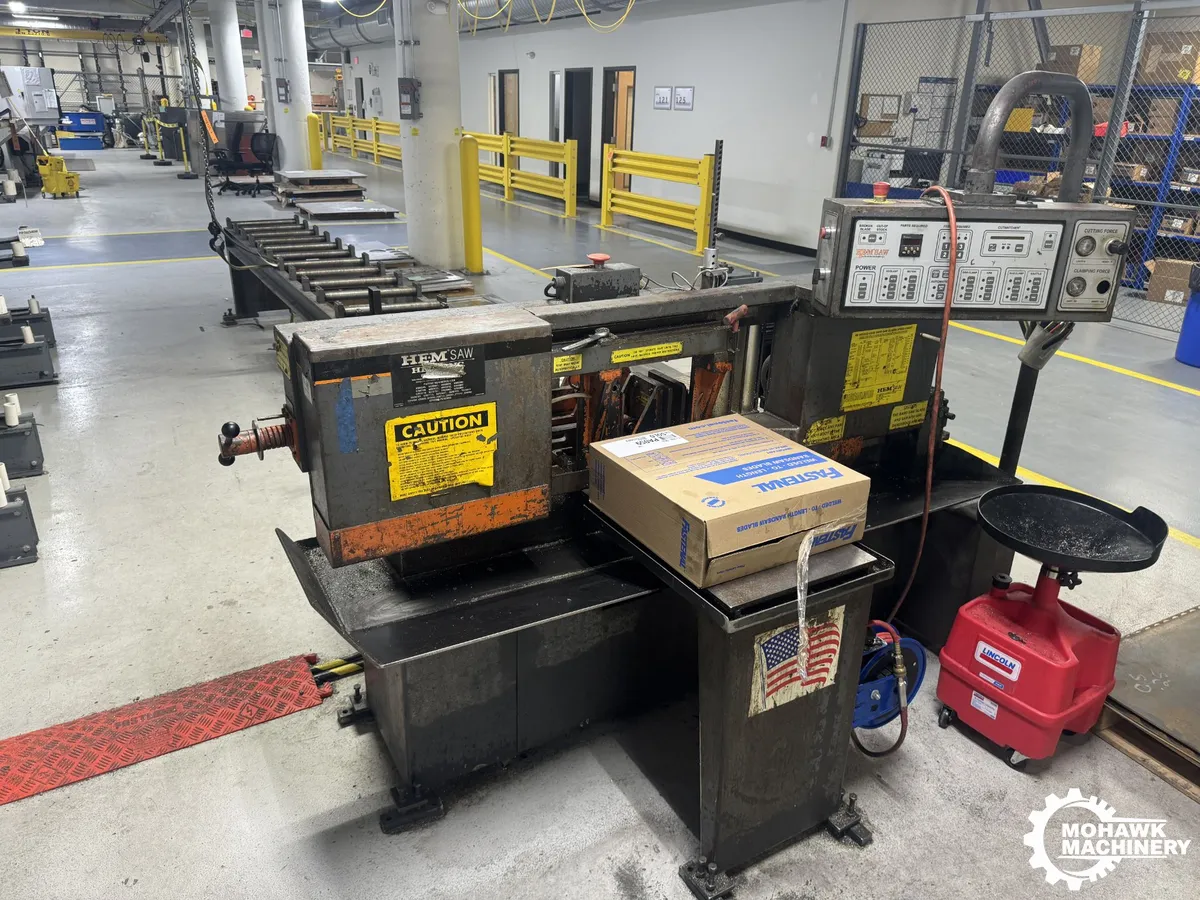

12.75" X 12.75" HEM AUTOMATIC PIVOT STYLE

HI-SPEED HEAVY-DUTY HORIZONTAL BAND SAW

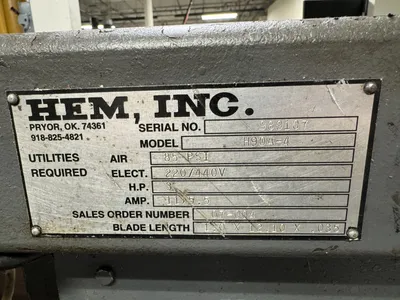

Serial No 989107, Model H90A-4

Equipped With

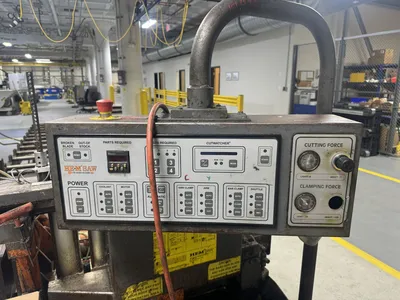

Swing Away Control Console

Cut Watcher System

Infinitely Variable Speed Drive

Semi-Automatic Or Fully Automatic Modes

Variable Vise Pressure

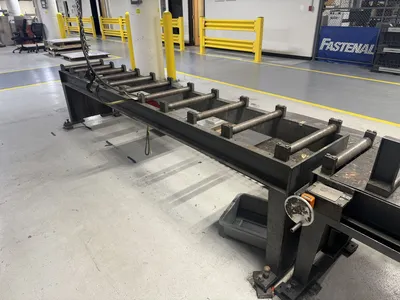

Some Conveyor

Specifications

ImperialMetric

Rect-Cap (H)	12.75"	323.85 mm
Rect-Cap (W)	12.75"	323.85 mm
Rounds-Cap	12.75"	323.85 mm
Square-Cap	12.75"	323.85 mm
Power	3 hp	2.2 kW
Type (Auto, Manual, Semi)	'Auto'	'Auto'
Blade Width	1"	25.4 mm
Blade Thickness	0.035"	0.889 mm
Blade Length	154"	3,911.6 mm
Weight	4600	4600

Round Stock Capacity, Maximum 12.75"

Flat Stock Capacity, Maximum 12.75" x 12.75"

Band Length 12'10"

Band Width 1"

Band Thickness .035"

Stroke Length 0 to 24"

Number Of Stroke Indexes 4

Band Speeds, Variable 60 to 300 SFPM

Motor Horsepower 3 HP

Electrical System 230-460/3/60

Weight, Approximately 4600 LBS

F.O.B. OUR WAREHOUSE
