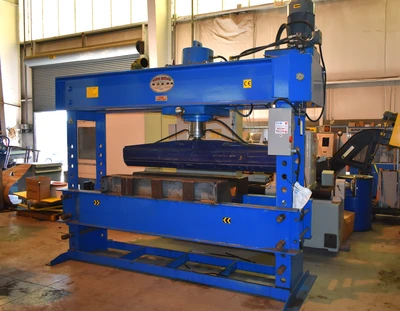

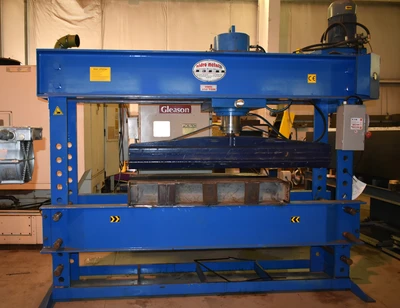

250 TON HYDROMETAL TRAVELING-HEAD "H"-FRAME
HYDRAULIC SHOP PRESS
New 2014,
Adjustable Table
Traveling Workhead w/Chrome Plated Cylinder
Pressure Gauge - Pressure Adjustment
78" Removable Male Press Brake Die
56" Removable Female Press Brake Die
Tonnage Capacity 250 TON
Ram Stroke Travel 15.7"
Distance Ram to Table, Maximum 39"
Distance Between Uprights, Length 51.2"
Distance Between Uprights, Width 17.7"
Motor Horsepower 15 HP
Hydraulic Reservoir Capacity 17 GALLONS
Overall Dimensions, L x W 90.6" x 47.2"
Overall Height 98.8"
Weight, Approximately 5720 LBS
F.O.B. OUR WAREHOUSE
