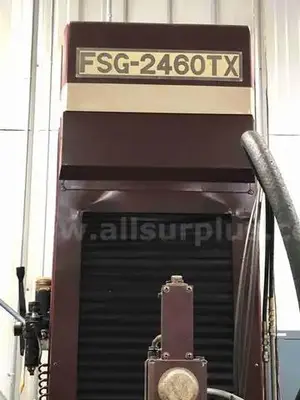

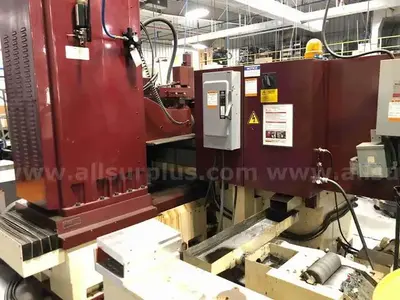

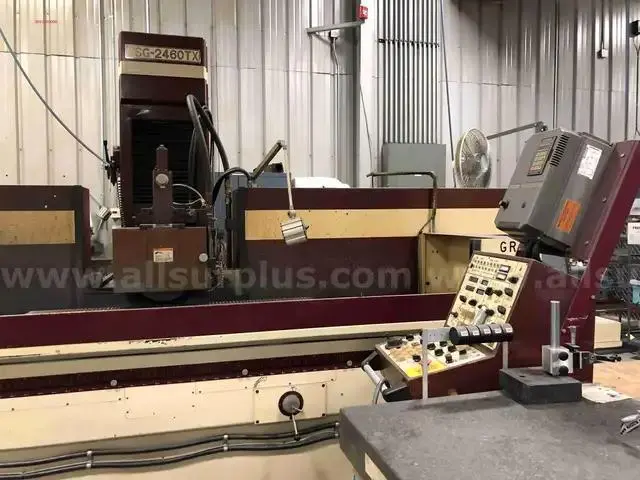

24" x 60" CHEVALIER "FSG-2460TX" COLUMN-TYPE PRECISION AUTOMATIC 3-AXIS HORIZONTAL-SPINDLE SURFACE GRINDER

Table Working Surface, W x L 24" x 60"

Grinding Width Capacity, Maximum 24"

Grinding Length Capacity, Maximum 60"

Table Load Capacity, Maximum 3960 LBS

Height Table to Spindle Center, Maximum 33.46"

Longitudinal Table Travel, Maximum 60"

Crossfeed Table Travel, Maximum 24"

Grinding Wheel Diameter, Maximum 16"

Grinding Wheel Width, Maximum 3"

Grinding Wheel Hole Diameter 5"

Table Longitudinal Feeds, Range 16 to 82 FPM

Incremental Downfeed Automatic, Range .0001" to .002"

Cross Movement Automatic Increment, Range .125" to 2"

Spindle Motor Horsepower 15 HP

Hydraulic Motor Horsepower 5 HP

Floor Space Required, L x W 255" x 134"

Overall Height 108"

Weight Approximately 18000 LBS

F.O.B. OUR WAREHOUSE
