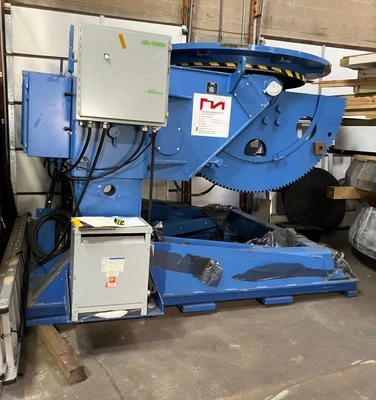

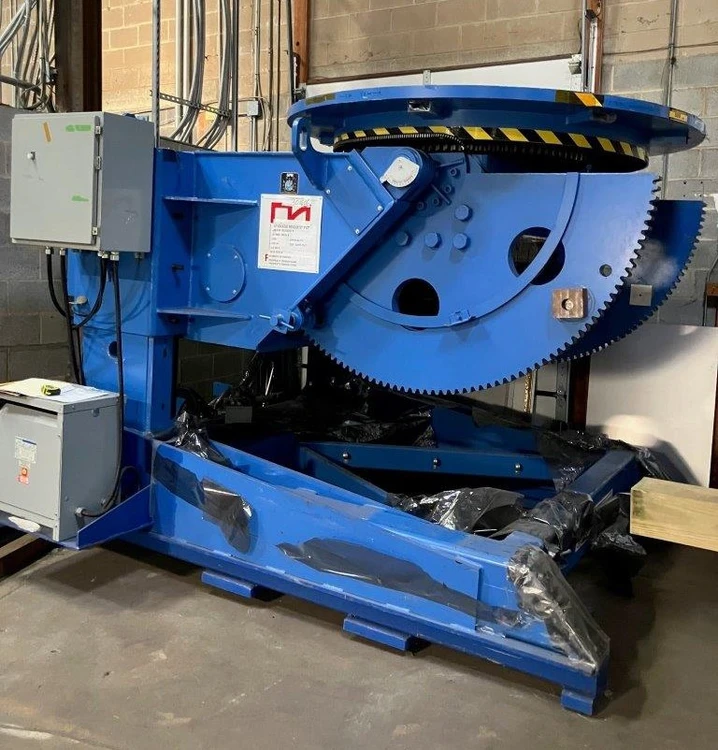

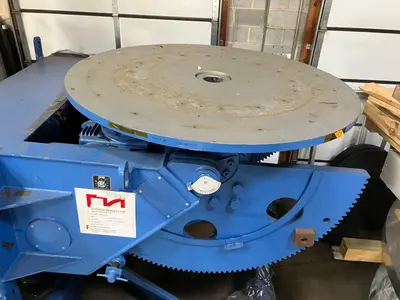

50,000 LB RANSOME "500-P" VARIABLE-SPEED WELDING POSITIONER w/84" DIAMETER TABLE - VARIABLE SPEED ROTATION & TILT - HAND HELD PENDANT CONTROL

Table Dimensions, Diameter 84"

Table Tilt Weight at 12" CG Height 50000 LBS

Table Tilt Weight at 20" CG Height 37302 LBS

Table Tilt Weight at 28" CG Height 29747 LBS

Table Tilt Weight at 36" CG Height 24737 LBS

Table Tilt Weight at 44" CG Height 21171 LBS

Table Rotational Weight at 12" CG Height 50000 LBS

Table Rotational Weight at 18" CG Height 33333 LBS

Table Rotational Weight at 24" CG Height 5000 LBS

Table Height, Maximum 85"

Table Height, Minimum 67"

Table Rotaton, Degrees 360-DEGREES

Table Tilt, Degrees 135-DEGREES

Rotation Torque, Inch Pounds 600000 LBS

Tilt Torque, Inch Pounds 1175000 LBS

Table Rotation Speed, Variable .007 to .3 RPM

Weight Approximately 32000 LBS

NOTE: This Welding Positioner Appears To Be In Mint Condition As

Taken From Government Stand-By Storage.

F.O.B. OUR WAREHOUSE
