42" BLANCHARD "18-42" VERTICAL-SPINDLE ROTARY SURFACE GRINDER w/SEGMENTED GRINDING WHEEL - 35 HP MOTOR - COOLANT SYSTEM (BUILT-IN)
Have one to sell?
$19,500.00 USD
ConditionUsed
1 available

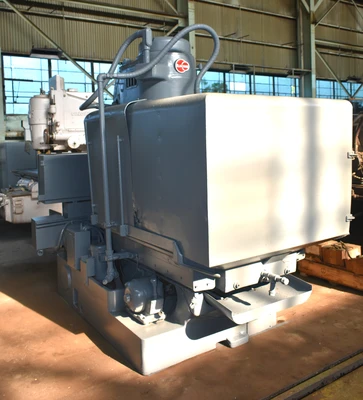

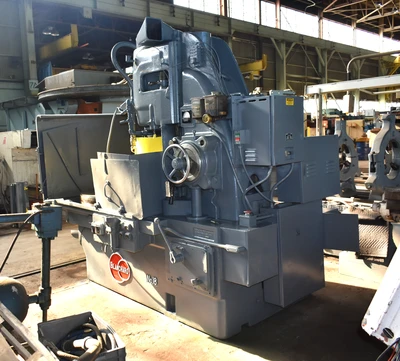

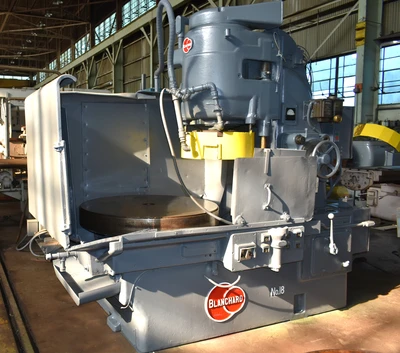

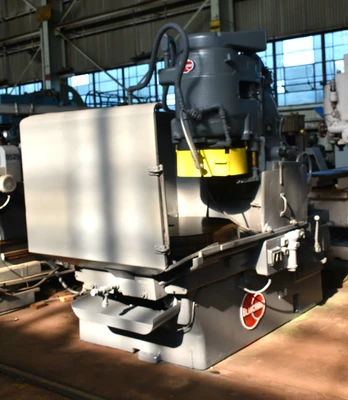

42" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 6906, Model 18-42
Vertical Spindle Machine Design
42" Diameter Magnetic Chuck w/Neutrofier
Segmented Grinding Wheel
Maxi-Flo Automatic Lube System
Coolant System (Built-In)

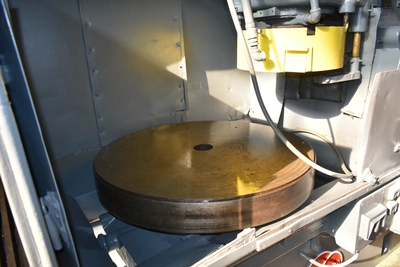

Magnetic Chuck, Diameter 42"
Magnetic Chuck Face, Diameter 42"
Swing Between Coolant-Guards 49"
Magnetic Chuck Work Load Capacity 2000 LBS
Height Under Grinding Wheel, Maximum 10.5"
Grinding Head Vertical Travel 10.5"
(6) Chuck Speeds, Range 6 to 33 RPM
(20) Power Down Feeds, Range .004 to .076 IPM
Spindle Motor, Horsepower 35 HP
Floor Space Required, W x D 9'9" x 5'5"
Overall Height 8'2"
Weight, Approximately 13900 LBS
F.O.B. OUR WAREHOUSE
