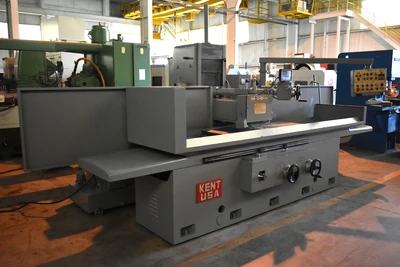

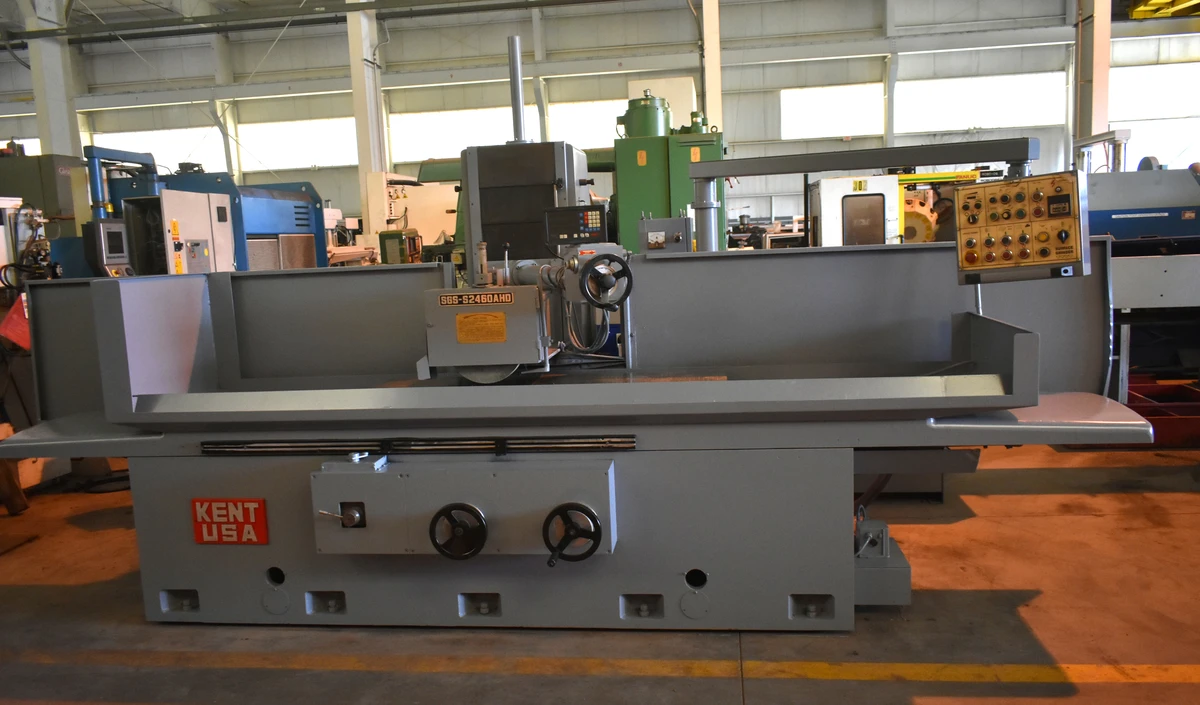

24" x 60" KENT USA HYDRAULIC-FEED 3-AXIS AUTOMATIC
HORIZONTAL-SPINDLE SURFACE GRINDER
New 2002, Serial No 91169, Model SGS-S2460AHD

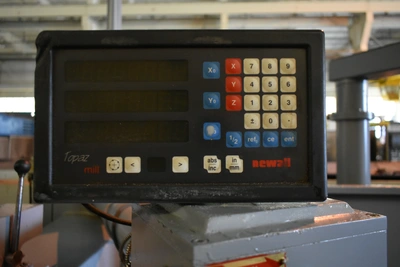

Newall Topaz 3-Axis Digital Readouts

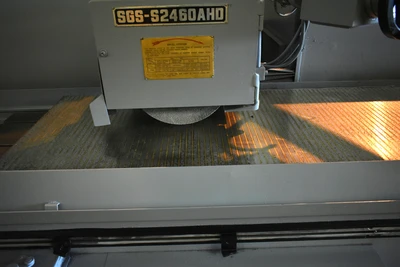

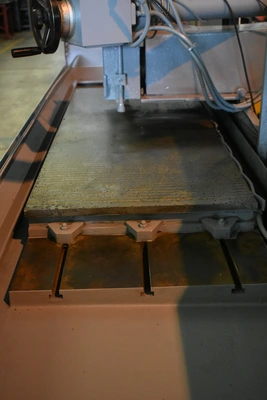

24" x 60" Kanetsu Electro-Magnetic Chuck w/Controls
Traveling Column Design
Above Wheel Dresser
Incremental Automatic Cross Feed
Power Downfeed w/Automatic Downfeed Controller
Surface & Slot Grinding Modes (Selectable)

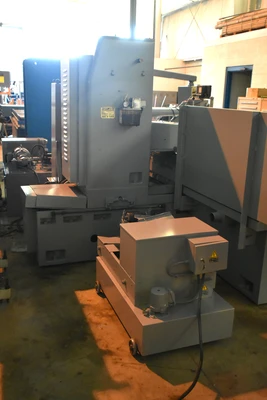

Coolant Filtration System (Tank & Pump)
Skid With Extra Wheel Hubs And Spare Parts
Table Working Surface, W x L 24" x 60"
Grinding Width Capacity, Maximum 24"
Grinding Length Capacity, Maximum 60"
Table Longitudinal Travel, Maximum 65"
Table Cross Travel, Maximum 25.6"
Spindle-Center to Table, Maximum 23"
Grinding Wheel Diameter, Standard 16"
Grinding Wheel Width, Standard 2"
Grinding Wheel Hole Diameter 5"
Grinding Spindle Speed 1750 RPM
Incremental Automatic Downfeed, Range .0001" to .0333"
Grinding Wheel Spindle Motor 10 HP

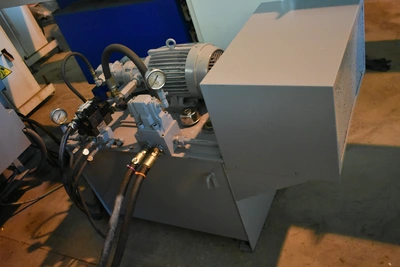

Hydraulic Motor Horsepower 5 HP
Overall Dimensions, L-R x F-B 136" x 98"
Weight, Approximately 13500 LBS
F.O.B. OUR WAREHOUSE
